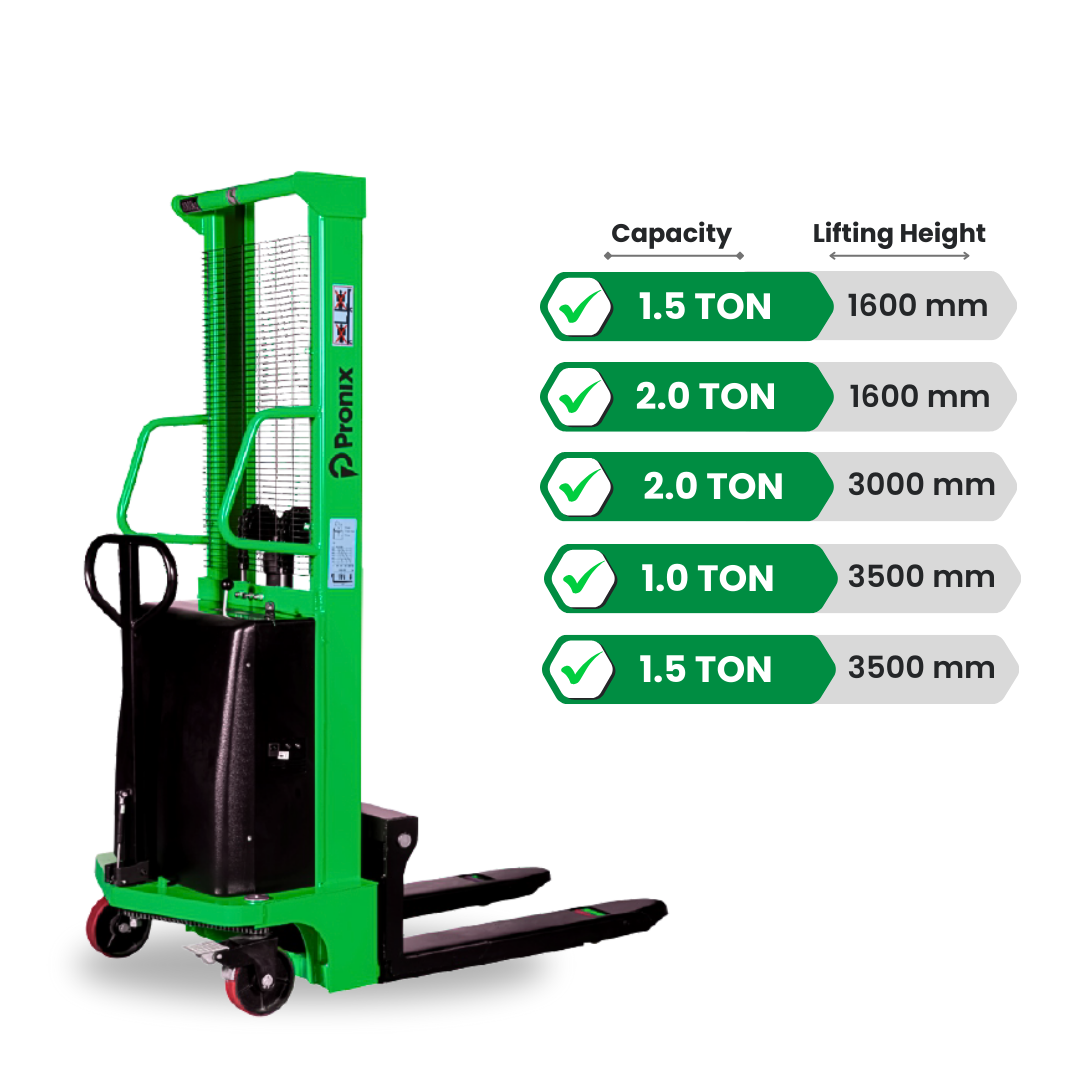

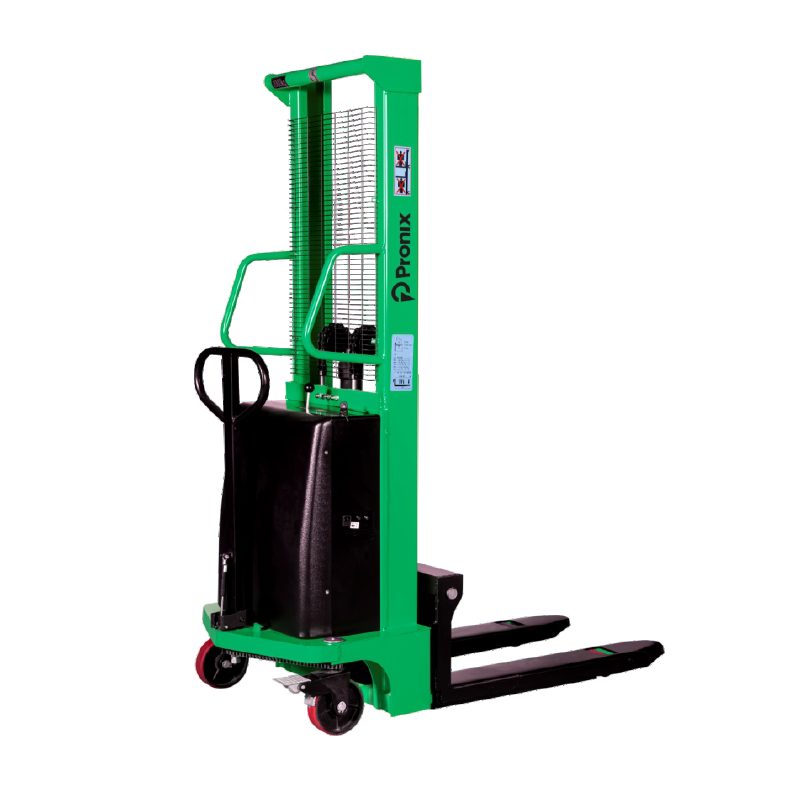

Pronix Semi Electric Stacker 2 Ton With 1.6m Lift Height PNXSES-2016

• Brand - Pronix
• Type - Semi-Electric Stacker
• Model No. - PNXSES-2016
• Capacity - 2000 Kg
• Max. Lifting Height - 1600 mm
• Load Center - 500 mm
• Min. Height - 85 mm
• Length of the Fork - 1000 mm
• Width of the Fork - 680 mm
• Ground Clearance - 25 mm
• Max. Lift Speed - 90±10% mm
• Max. Lifting Speed - 60 mm
• Max. Lowering Speed -≤280
• Min. Turning Radius - 1500 Kg
• Overall Length - 1700 mm
• Overall Width - 800 mm
• Overall Height - 2080 mm
• Rollers - Tandem, PU
• Roller Size - 80 x 70 mm
• Front Wheel Size - 180 x 50 mm
• Battery Capacity - 12v~120 Ah
• Charger - AC 220 DV/50Hz
• Self Weight of Battery - 35 Kg
• Pump Material - Cast Steel, Machined
• Pump Finish - Powder Coating

Description:

• Detachable design with high accuracy & better hardness.
• It is used for convenience and flexibility to lift materials.
• It is user friendly equipment enabling easy operations.
• The design structure is reasonable, safe and stable and reliable for use.
• Pronix Semi Electric Hydraulic Stacker 2 Ton is ideal for lifting and stacking materials, especially in small or narrow places.
• It has a maximum load capacity of 2 tons and a fork length of 1000 mm.
• The front wheel size is 180 x 50 mm, the rear-wheel size is 80 x 93 mm, and the load wheels are nylon.
• It has a lifting speed of 60 mm/s with load and 90 mm/s without load.
• Its battery capacity is 12V - 100 Ah.
