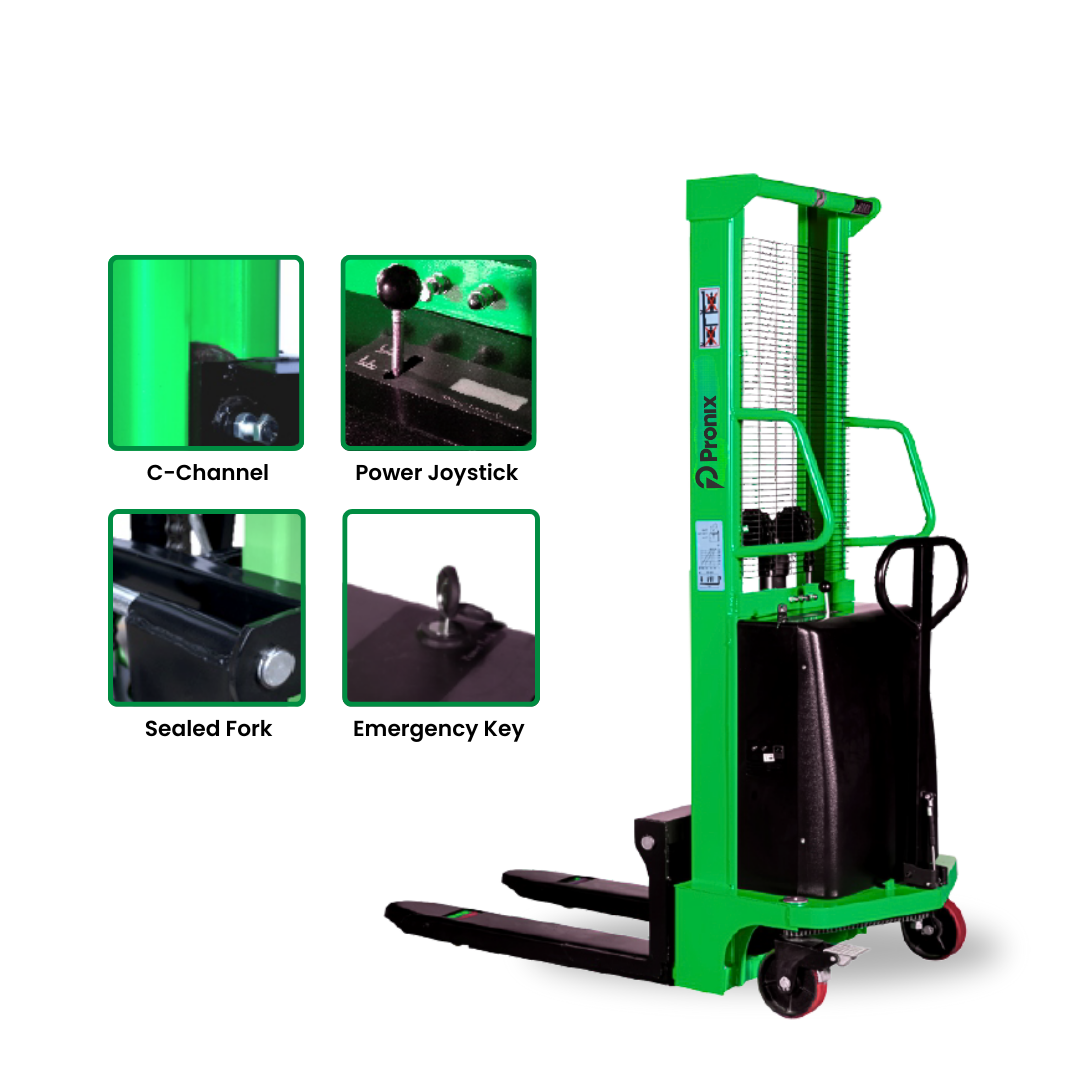

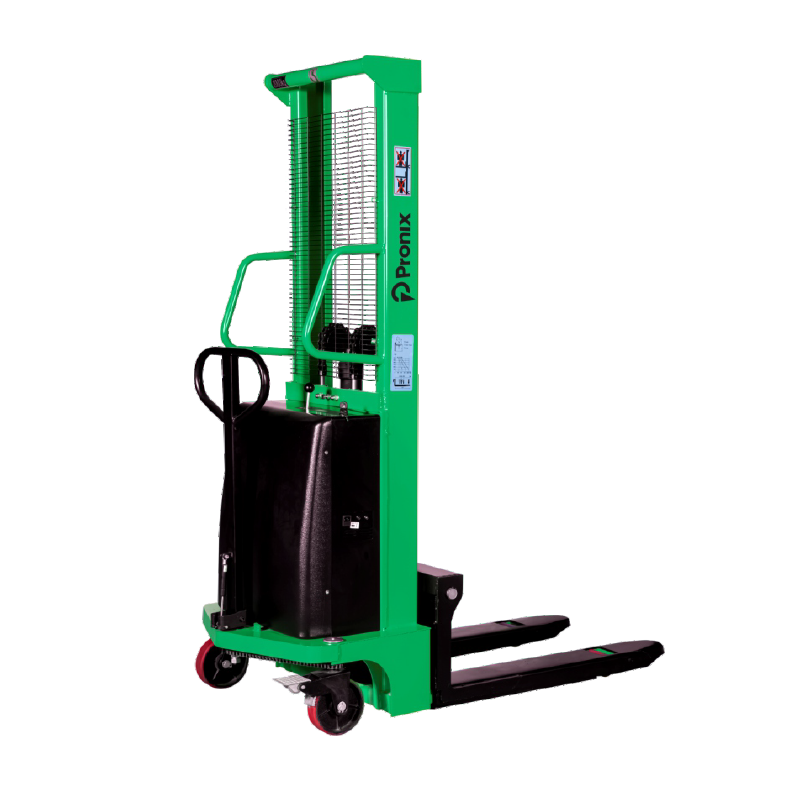

Pronix Semi Electric Stacker 1 Ton With 3m Lift Height PNXSES-1030

Specification:

• Brand - Pronix
• Type - Semi-Electric Stacker
• Model No. - PNXSES-1030
• Capacity - 1000 Kg
• Max. Lifting Height - 3000 mm
• Load Center - 500 mm
• Min. Height - 85 mm
• Length of the Fork - 1000 mm
• Width of the Fork - 680 mm
• Ground Clearance - 25 mm
• Max. Lift Speed - 90±10% mm
• Max. Lifting Speed - 60 mm
• Max. Lowering Speed -≤280
• Min. Turning Radius - 1500 Kg
• Overall Length - 1700 mm
• Overall Width - 800 mm
• Overall Height - 2150 mm
• Rollers - Tandem, PU
• Roller Size - 80 x 70 mm
• Front Wheel Size - 180 x 50 mm
• Battery Capacity - 12v~120 Ah
• Charger - AC 220 DV/50Hz
• Self Weight of Battery - 35 Kg
• Pump Material - Cast Steel, Machined
• Pump Finish - Powder Coating

Description:

• Pronix Semi-Electric Stacker 1 Ton with 3m lifting height is an industry-leading solution for automated material handling.
• The semi-electric design has a max lifting speed of 90 mm/s, powered by a 12v 120Ah battery with 35 kg self-weight.
• This heavy-duty stacker features a 1000 Kg capacity, lifting up to 3000 mm with a lift speed of 90±10%.
• Its PU tandem rollers provide a smooth driving experience and its 12V 120Ah battery and AC 220V 50Hz charger offer long-term power.
• It has a capacity of 1000 kg with 500 mm load center.
• It is designed with high-grade cast steel and powder coating for durable operation.
• Its overall dimensions are 1700 x 800 x 2150 mm with a minimum turning radius of 1500 kg.
• Ideal for industrial and warehouse use.
