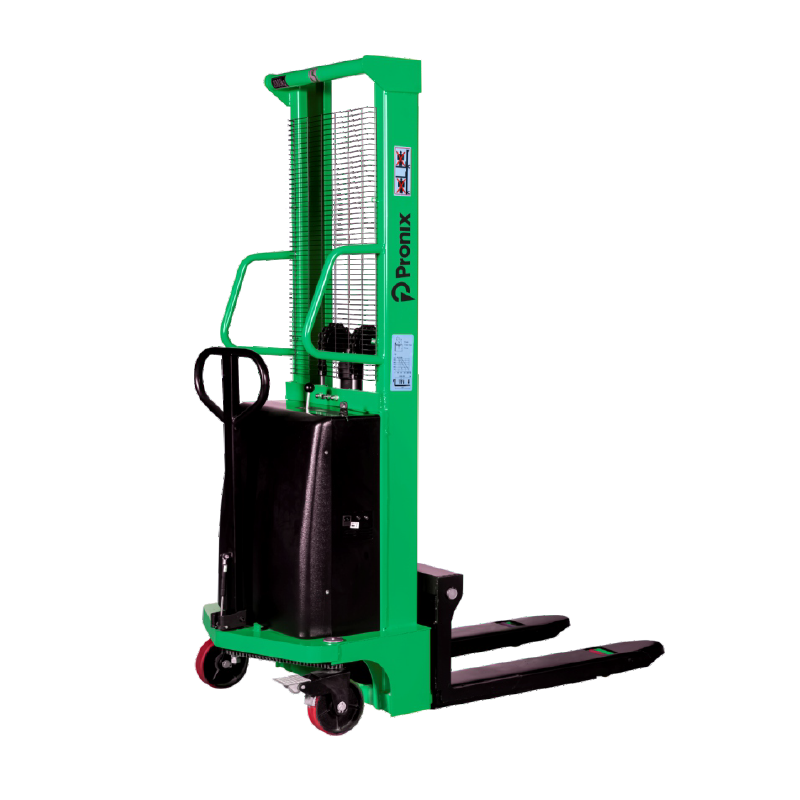

Pronix Semi Electric Stacker 1 Ton With 3.5m Lift Height PNXSES-1035

Pronix Semi Electric Stacker 1 Ton With 3.5m Lift Height PNXSES-1035

SKU:1000017310

Regular price Rs.216,830.00
Regular price Rs.266,701.00 Sale price Rs.216,830.00
Sale Out of Stock
(Inclusive of all the taxes)

In stock

Specifications:

  • Brand - Pronix
  • Type - Semi-Electric Stacker
  • Model No. - PNXSES-1035
  • Capacity - 1000 Kg
  • Max. Lifting Height - 3500 mm
  • Load Center - 500 mm
  • Min. Height - 85 mm
  • Length of the Fork - 1000 mm
  • Width of the Fork - 680 mm
  • Ground Clearance - 25 mm
  • Max. Lift Speed - 90±10% mm
  • Max. Lifting Speed - 60 mm
  • Max. Lowering Speed -≤280
  • Min. Turning Radius - 1500 Kg
  • Overall Length - 1700 mm
  • Overall Width - 800 mm
  • Overall Height - 2150 mm
  • Rollers - Tandem, PU
  • Roller Size - 80 x 70 mm
  • Front Wheel Size - 180 x 50 mm
  • Battery Capacity - 12v~120 Ah
  • Charger - AC 220 DV/50Hz
  • Self Weight of Battery - 35 Kg
  • Pump Material - Cast Steel, Machined
  • Pump Finish - Powder Coating

Description:

  • Pronix Semi-Electric Stacker 1 Ton with 3.5m lifting height is an industry-leading solution for automated material handling.
  • The semi-electric design has a max lifting speed of 90 mm/s, powered by a 12v 120Ah battery with 35 kg self-weight.
  • This heavy-duty stacker features a 1000 Kg capacity, lifting up to 3000 mm with a lift speed of 90±10%.
  • Its PU tandem rollers provide a smooth driving experience and its 12V 120Ah battery and AC 220V 50Hz charger offer long-term power.
  • It has a capacity of 1000 kg with 500 mm load center.
  • It is designed with high-grade cast steel and powder coating for durable operation.
  • Its overall dimensions are 1700 x 800 x 2150 mm with a minimum turning radius of 1500 kg.
  • Ideal for industrial and warehouse use.
