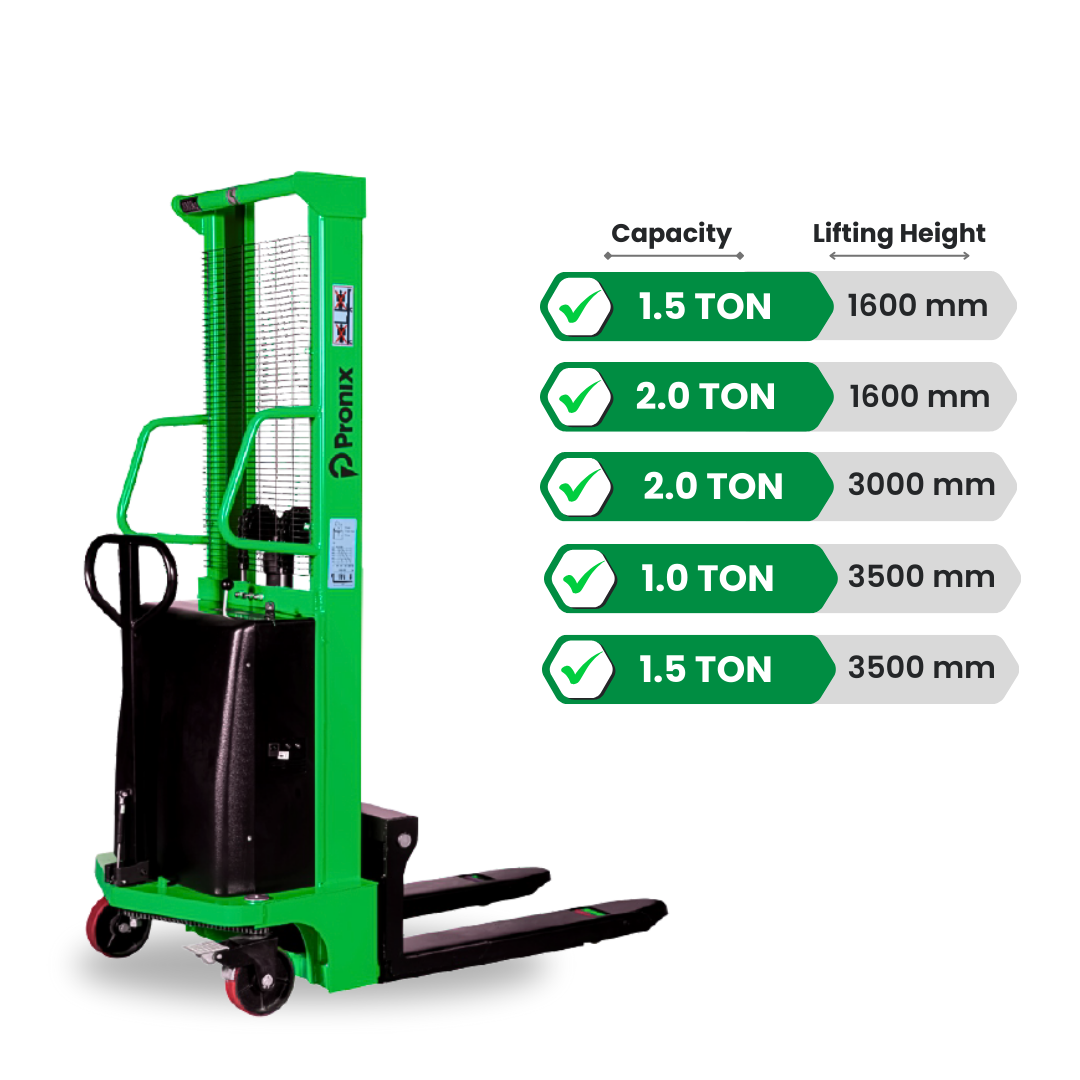

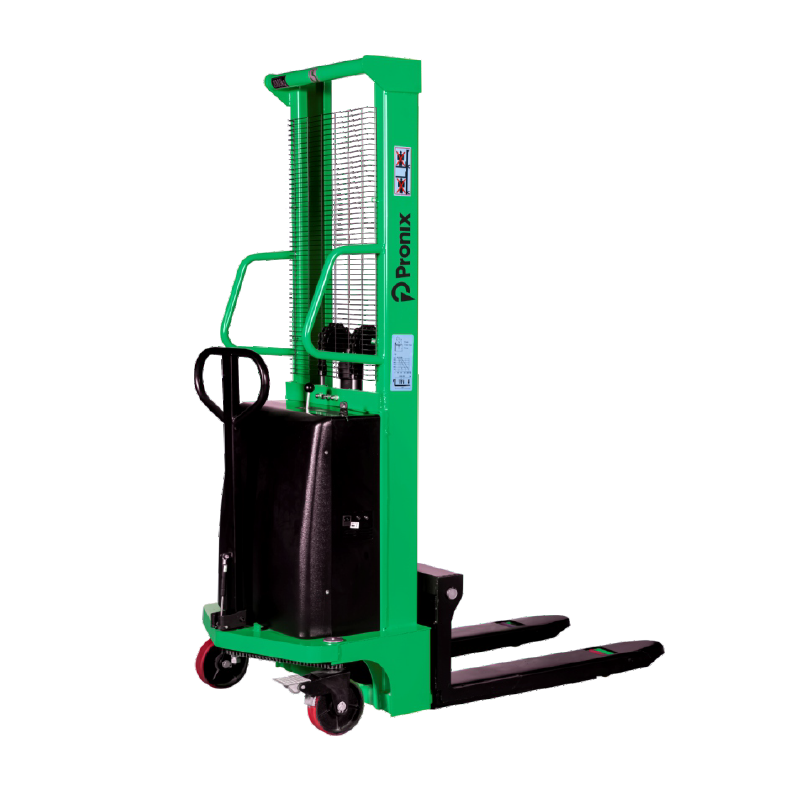

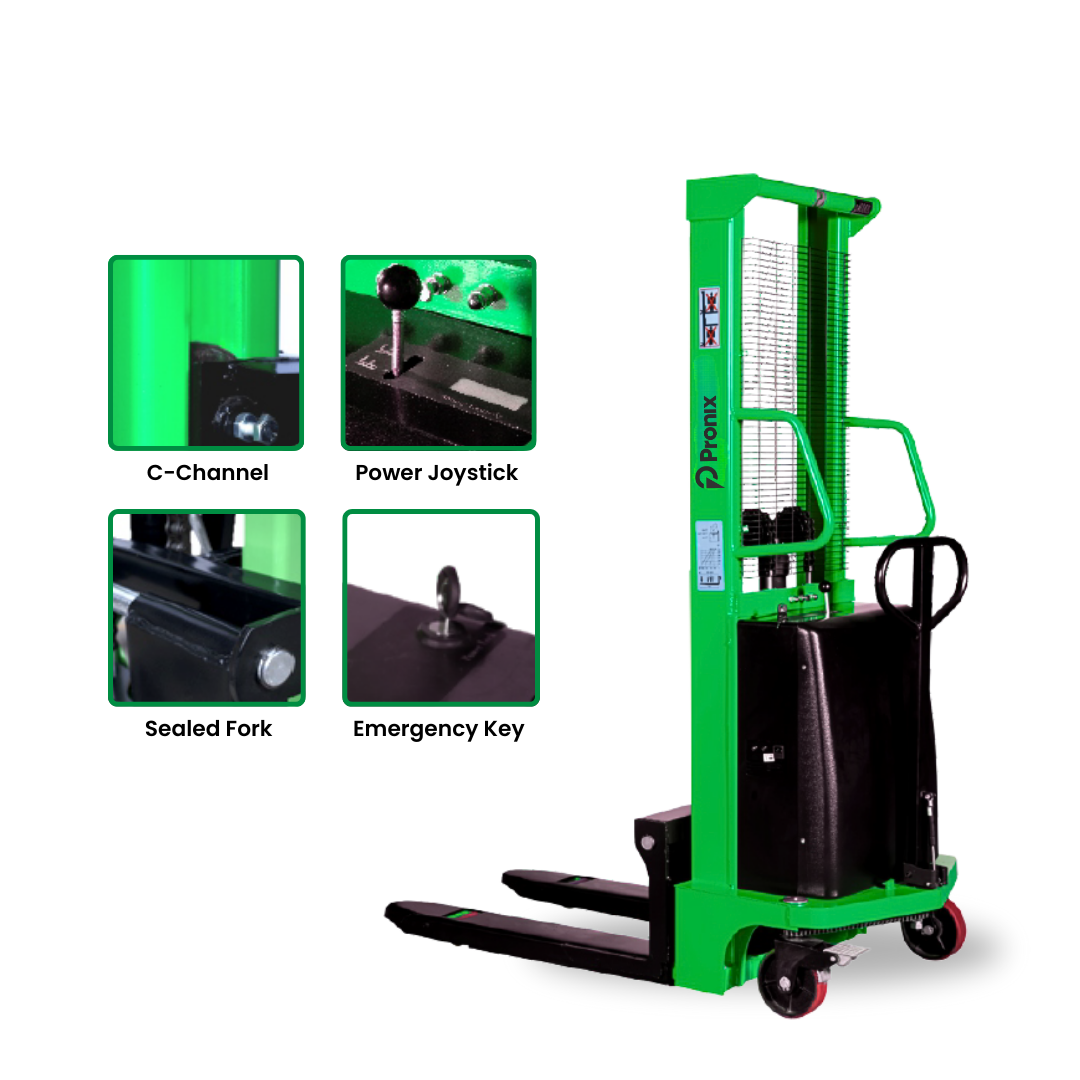

Pronix Semi Electric Stacker 1.5 Ton With 3.5m Lift Height PNXSES-1535

Specification:

• Brand - Pronix
• Type - Semi-Electric Stacker
• Model No. - PNXSES-1535
• Capacity - 1500 Kg
• Max. Lifting Height - 3500 mm
• Load Center - 500 mm
• Min. Height - 85 mm
• Length of the Fork - 1000 mm
• Width of the Fork - 680 mm
• Ground Clearance - 25 mm
• Max. Lift Speed - 90±10% mm
• Max. Lifting Speed - 60 mm
• Max. Lowering Speed -≤280
• Min. Turning Radius - 1500 mm
• Overall Length - 1700 mm
• Overall Width - 800 mm
• Overall Height - 2300 mm
• Rollers - Tandem, PU
• Roller Size - 80 x 70 mm
• Front Wheel Size - 180 x 50 mm
• Battery Capacity - 12v~120 Ah
• Charger - AC 220 DV/50Hz
• Self Weight of Battery - 35 Kg
• Pump Material - Cast Steel, Machined
• Pump Finish - Powder Coating

Description:

• Pronix Semi Electric Stacker 1.5 Ton With 3.5m Lift Height PNXSES-1535 has a capacity of 1500Kg and can lift up to 3.5m.
• It features tandem rollers, a 12V~120Ah battery, and a durable cast steel pump.
• The stacker also offers a load center of 500mm, a Ground Clearance of 25mm, and a Min Turning Radius of 1500mm.
• This semi-electric stacker is designed for optimal performance and maximum efficiency.
• Built with cast steel machined pumps and powder coated finishes, its Tandem PU Rollers and 80x70mm wheels provide reliable mobility.
• Its 1700mm x 800mm x 2300mm overall dimensions make it a great fit for most industrial applications.

• Minimal turning radius for easy maneuverability and a self-weight battery of just 35kg.
