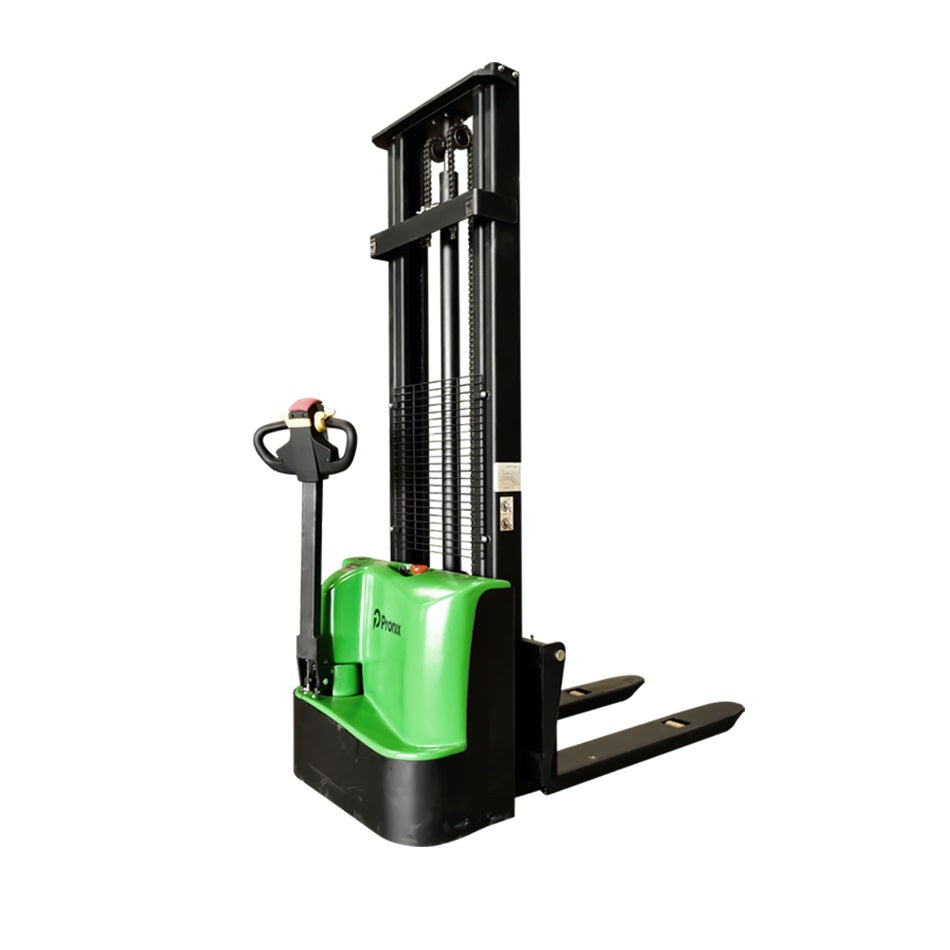

Pronix Fully Electric Stacker 1.5 Ton 3.5m Lifting Height PNXFES-1535

Name: Pronix Fully Electric Stacker 1.5 Ton 3.5m Lifting Height PNXFES-1535
Brand: Pronix
SKU: 1000007891
Price: 376465.00 INR
Availability: InStock

Pronix Fully Electric Stacker 1.5 Ton 3.5m Lifting Height PNXFES-1535

SKU:1000007891

Rs.376,465.00

~~Rs.463,052.00~~ Rs.376,465.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

In stock

Quantity

Specification:

Brand - Pronix
Type - Fully Electric Stacker
Model No. - PNXFES-1535
Power Type - Electric
Driving Style - Walkie Style
Load Capacity - 1500 Kg
Max. Lifting Height - 3500 mm
Min. Fork Height - 90 mm
Fork Length - 1150 mm
Width Over Forks (Fixed) - 690 mm
Width Over Forks (Adjustable) - 360-690mm
Overall Length - 1800 mm
Overall Width - 950 mm
Overall Height (Closed) - 2300 mm
Overall Height (Extended) - 4050 mm
Load Center - 500 mm
Ground Clearance - 31 mm
Min. Turning Radius - 1420 mm
Front Wheel Size - Dia. 80 x 70 mm
Driving Wheel Size - Dia. 210 x 70 mm
Battery - 2 x 12 / 80Ah
Travel Speed (Laden / Unladen) - 3.5 / 5
Lift Speed (Laden / Unladen) - 90 / 120
Lowering Speed (Laden / Unladen) - 125 / 80
Grade Ability (Laden / Unladen) - 5 / 8
Lifting Motor - 1.6 kW
Driving Motor - 0.75 kW
Brake Type - Electromagnetic
Self Weight - 630 Kg

Description:

Pronix Fully Electric Stacker PNXFES-1535 offers a robust 1.5-ton load capacity with a maximum lifting height of 3.5 meters, ideal for efficient material handling.
Its walkie-style operation ensures precise maneuverability with a minimum turning radius of 1420 mm.
Adjustable forks (360-690 mm) and a low minimum fork height of 90 mm enhance versatility for various pallet sizes.
Powered by dual 12V/80Ah batteries, it delivers reliable travel speeds up to 5 km/h unladen and smooth lifting and lowering speeds.
Compact dimensions and an electric brake system provide safety and ease of use in tight warehouse environments.
