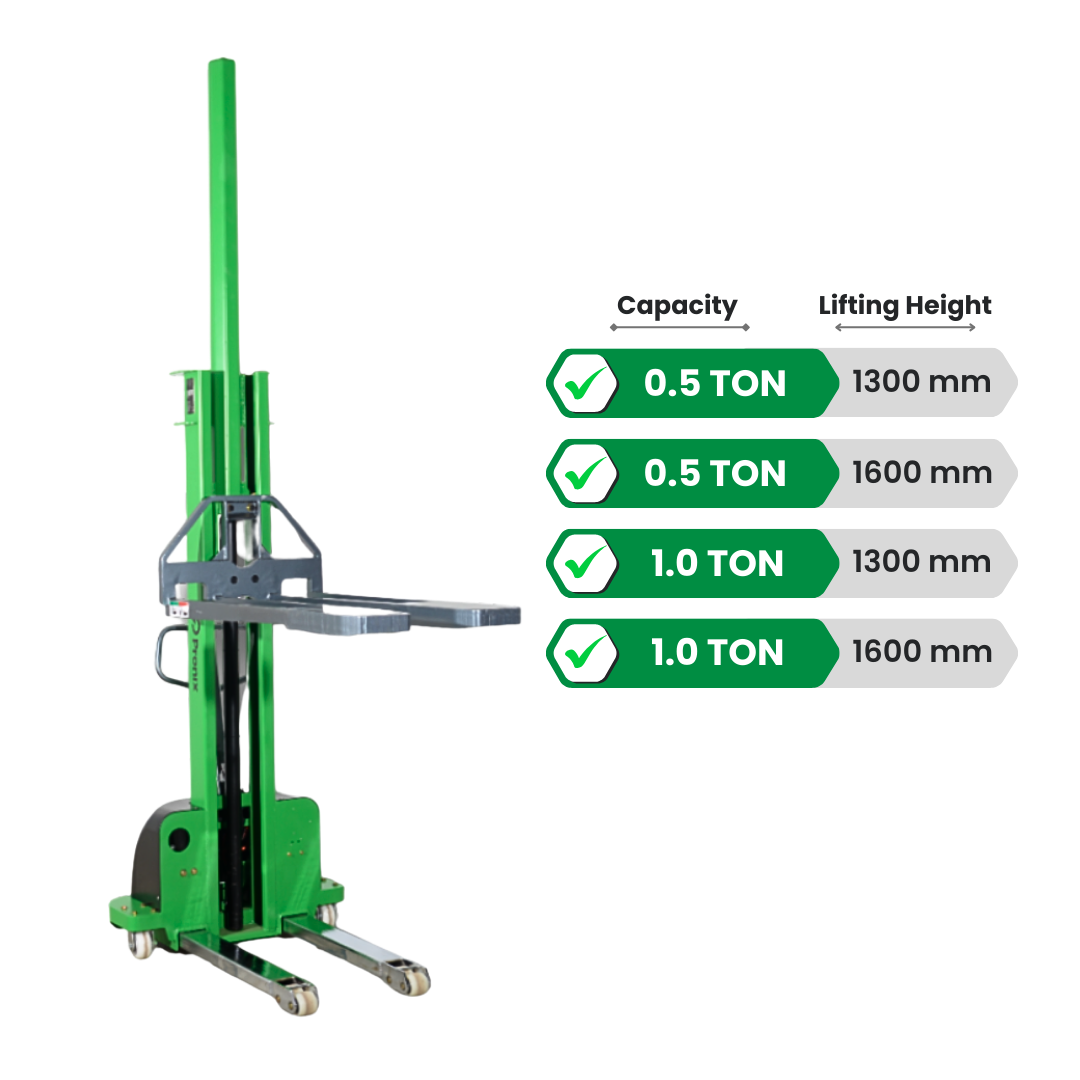

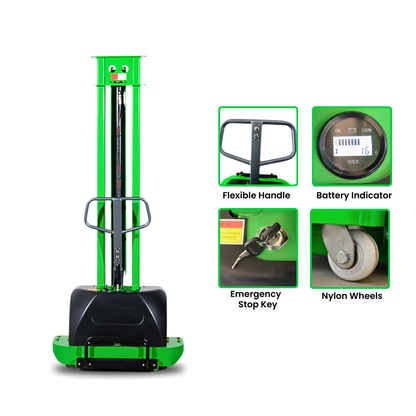

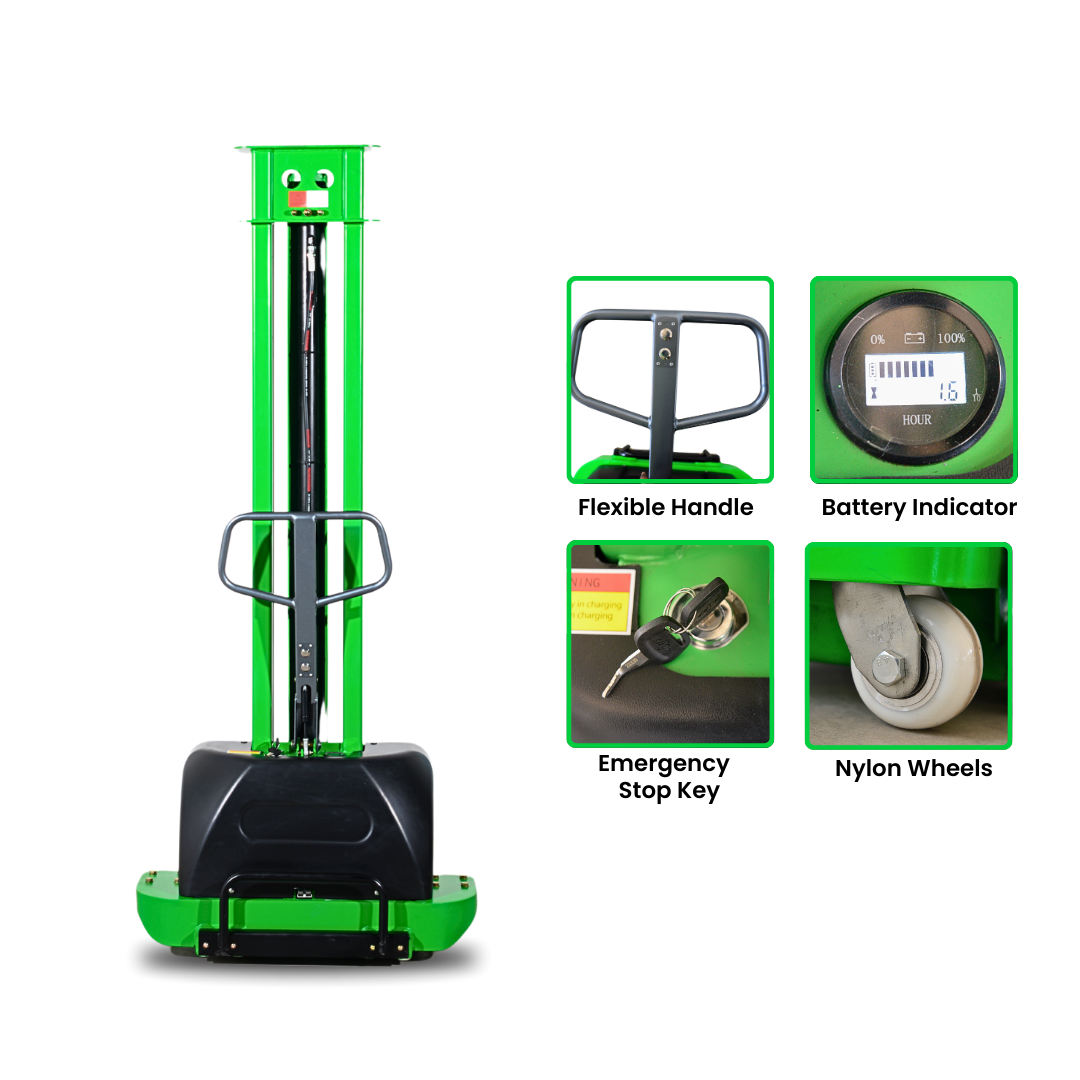

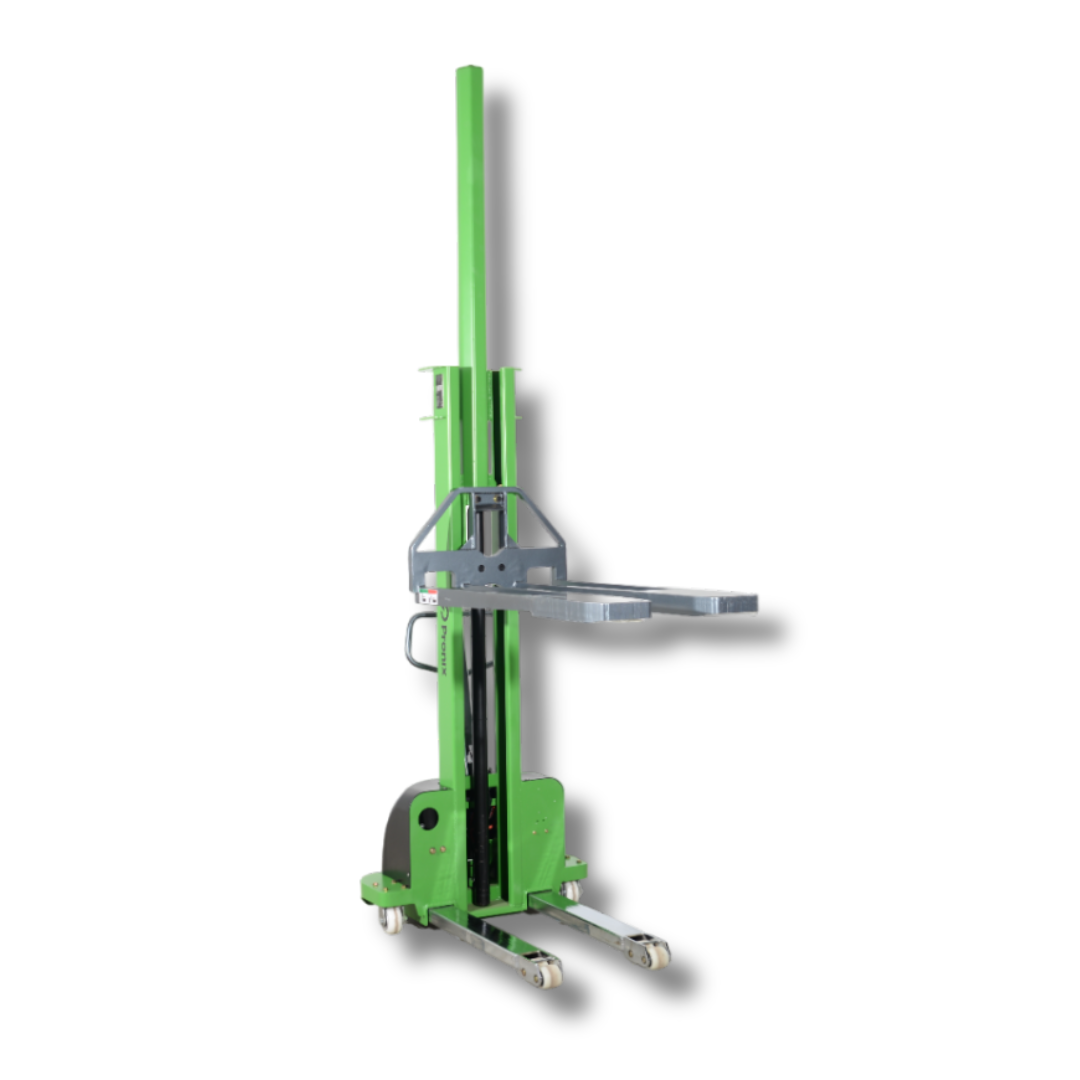

Self Loading All-in-One Stacker Semi-Electric Lifting Capacity 500Kg, 1.6m Lifting Height PNXSESLS-0516 - Pronix

Self Loading All-in-One Stacker Semi-Electric Lifting Capacity 500Kg, 1.6m Lifting Height PNXSESLS-0516 - Pronix

SKU:1000016183

Regular price Rs.247,800.00
Regular price Rs.304,795.00 Sale price Rs.247,800.00
Sale Out of Stock
(Inclusive of all the taxes)

In stock

  • Free Shipping

Specification:

  • Brand - Pronix
  • Type - Semi-Electric Self-Loading Stacker
  • Model - PNXSESLS-0516
  • Capacity - 500 Kg
  • Load Center Distance - 500mm
  • Fork Outer Spacing - 685mm
  • Fork Length - 1195mm
  • Operation Type - Walking Type
  • Forward & Backward - Manual
  • Lifting Up & Down - Electric
  • Drive Wheel Size - Ø 250 x 74mm
  • Load Wheel Size - Ø 80 x 60 mm
  • Middle Wheel - Ø 65 x 30 mm
  • Fork Lift Height - 1600mm
  • Fork Starting Height from the Ground - 81mm
  • Wheel Base - 974mm
  • Vehicle Length - 1650mm
  • Body Thickness - 409mm
  • Body Width - 658mm
  • Front Track - 518mm
  • Single Fork Width - 253mm
  • Minimum Turning Radius - 1173mm
  • Maximum Driving Speed (Turtle Speed) - 0.5 km/h
  • Maximum Driving Speed (Full Load) - 3.0 km/h
  • Motor - DC 0.6 kW
  • Lift Motor - DC 2.2 kW
  • Battery - Lithium Battery (48 V)
  • Battery Capacity - 15 Ah
  • Battery Weight - 5 Kg
  • Overall Weight (Include Battery) - 382 Kg

Description:

  • Pronix Semi-Electric Self Loading Stacker 500Kg with Lifting Height 1.6m PNXSESLS-0516 is a walking type semi-electric self-loading stacker, capable of lifting up to 500Kg with a load center distance of 500mm and fork outer spacing of 685mm.
  • This stacker is equipped with a 500Kg capacity, 500mm load center distance, and a lifting height of 1.6m, making it ideal for commercial and industrial applications.
  • It has a maximum driving speed of 3.0km/h, with a 0.6kW DC motor and a 2.2kW DC lift motor.
  • It is powered by a 48V lithium battery with 15Ah capacity and weighs 382Kg overall, including the battery.
