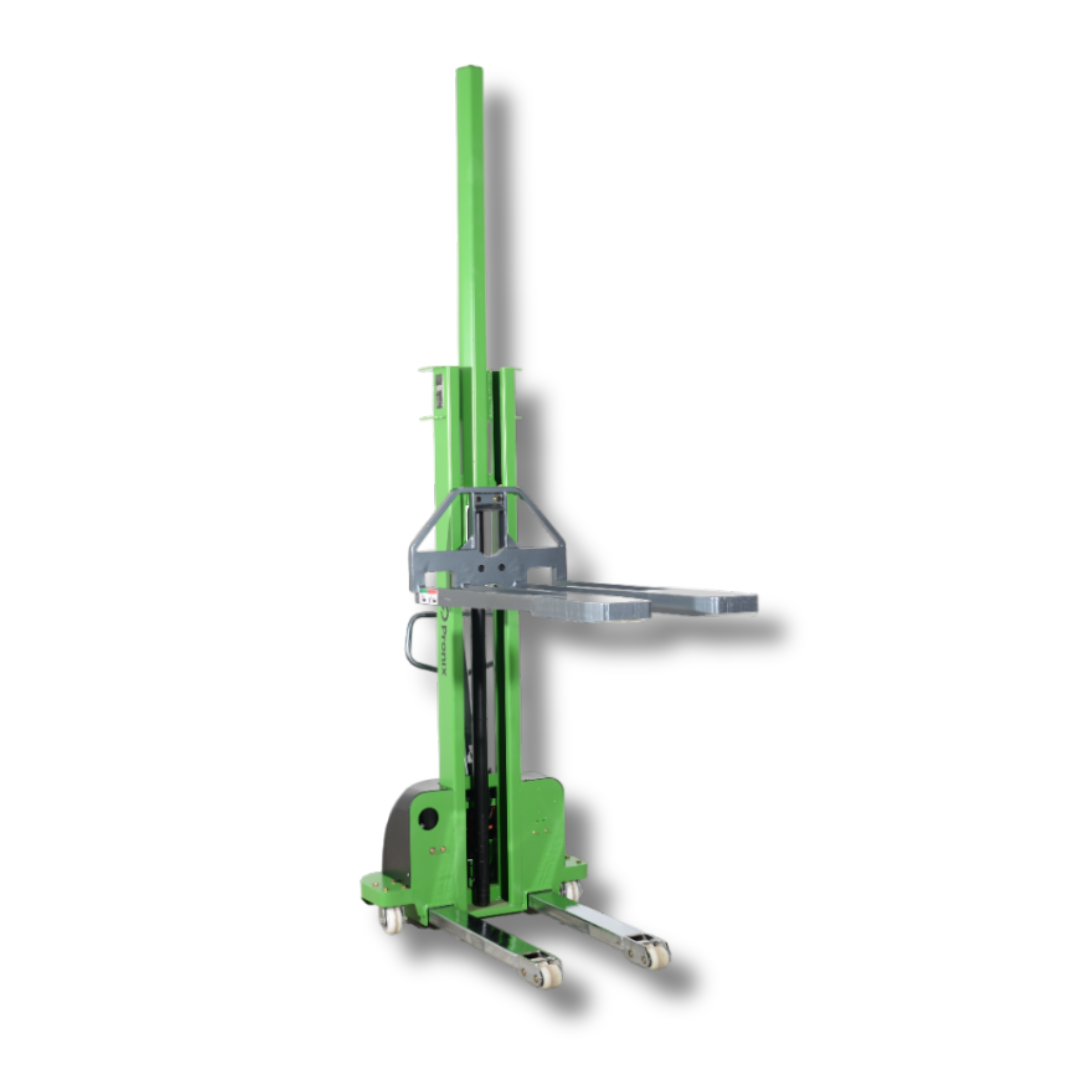

Self Loading All-in-One Stacker Semi-Electric Lifting Capacity 500Kg, 1.3m Lifting Height PNXSESLS-0513 - Pronix

Self Loading All-in-One Stacker Semi-Electric Lifting Capacity 500Kg, 1.3m Lifting Height PNXSESLS-0513 - Pronix

SKU:1000016182

Regular price Rs.230,100.00
Regular price Rs.283,025.00 Sale price Rs.230,100.00
Sale Out of Stock
(Inclusive of all the taxes)

In stock

Specification:

  • Brand - Pronix
  • Type - Semi-Electric Self-Loading Stacker
  • Model - PNXSESLS-0513
  • Capacity - 500 Kg
  • Load Center Distance - 500mm
  • Fork Outer Spacing - 685mm
  • Fork Length - 1195mm
  • Operation Type - Walking Type
  • Forward & Backward - Manual
  • Lifting Up & Down - Electric
  • Drive Wheel Size - Ø 250 x 74mm
  • Load Wheel Size - Ø 80 x 60 mm
  • Middle Wheel - Ø 65 x 30 mm
  • Fork Lift Height - 1300mm
  • Fork Starting Height from the Ground - 81mm
  • Wheel Base - 974mm
  • Vehicle Length - 1650mm
  • Body Thickness - 409mm
  • Body Width - 658mm
  • Front Track - 518mm
  • Single Fork Width - 253mm
  • Minimum Turning Radius - 1173mm
  • Maximum Driving Speed (Turtle Speed) - 0.5 km/h
  • Maximum Driving Speed (Full Load) - 3.0 km/h
  • Motor - DC 0.6 kW
  • Lift Motor - DC 2.2 kW
  • Battery - Lithium Battery (48 V)
  • Battery Capacity - 15 Ah
  • Battery Weight - 5 Kg
  • Overall Weight (Include Battery) - 382 Kg

Description:

  • Pronix Semi-Electric Self Loading Stacker 500Kg (PNXSESLS-0513) is designed to provide safe, efficient, and ergonomic operation.
  • Robust construction and lithium-ion battery offer 500Kg capacity and a lifting height of 1.3m with a maximum driving speed of 3 km/h.
  • It has a capacity of 500 Kilograms and a lift motor of DC 2.2 kW powered by a 48 V Lithium battery with a 15 Ah capacity.
  • Its turning radius is 1173mm and maximum driving speed is 3 km/h. It has an overall weight of 382 Kg, including the battery.
  • Fork outer spacing of 685mm and a wheelbase of 974mm ensure maneuverability while a minimum turning radius of 1173mm allows the user to navigate narrow areas.
