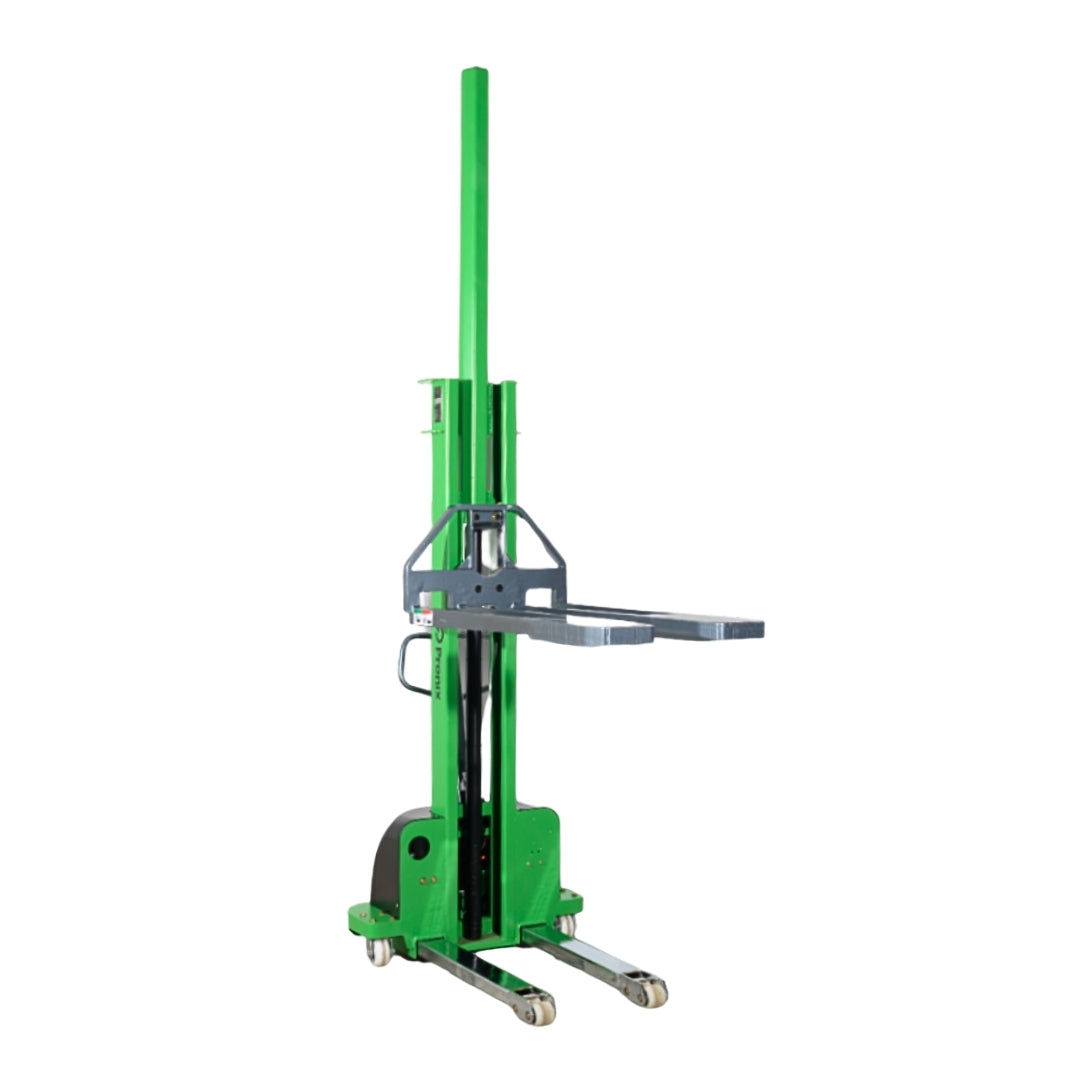

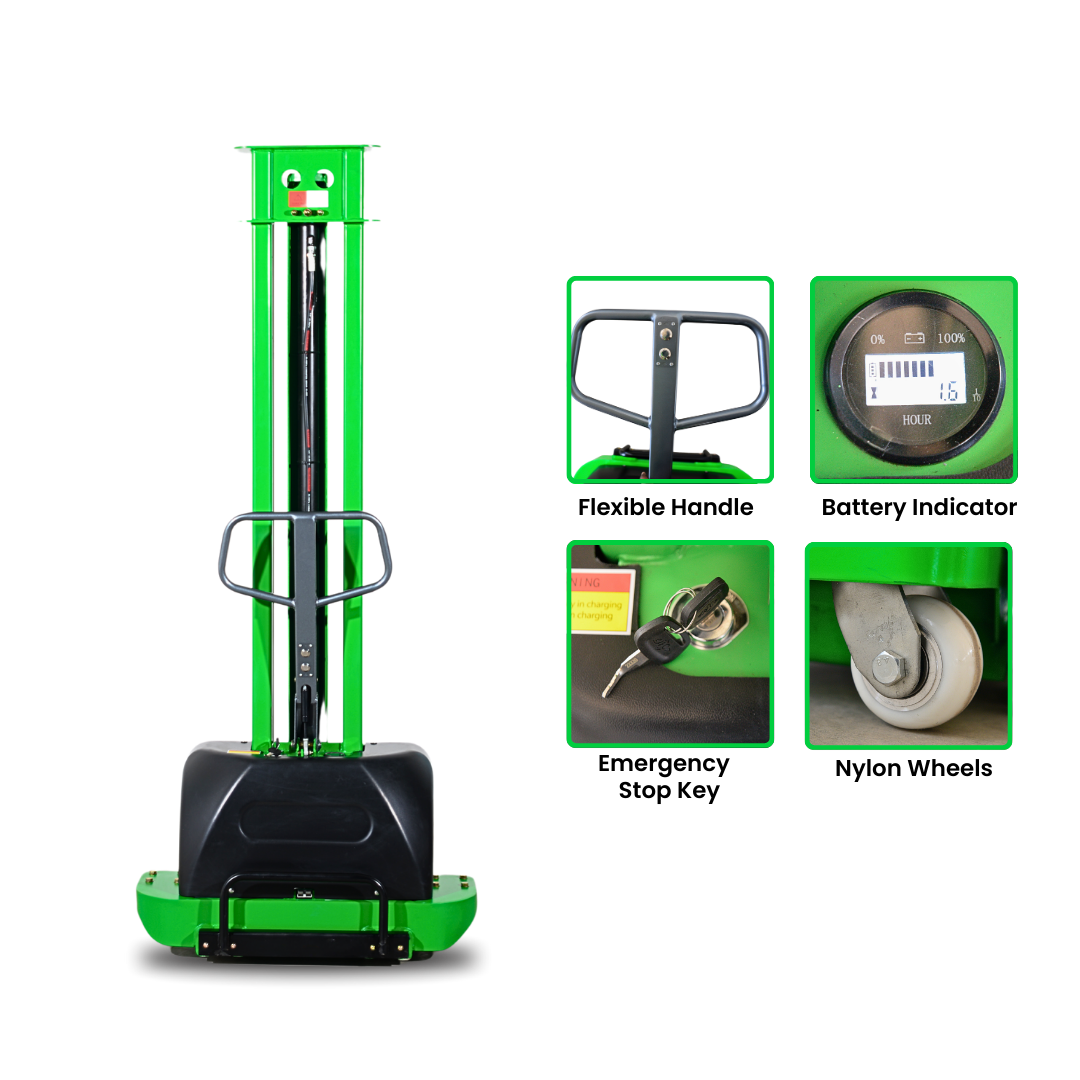

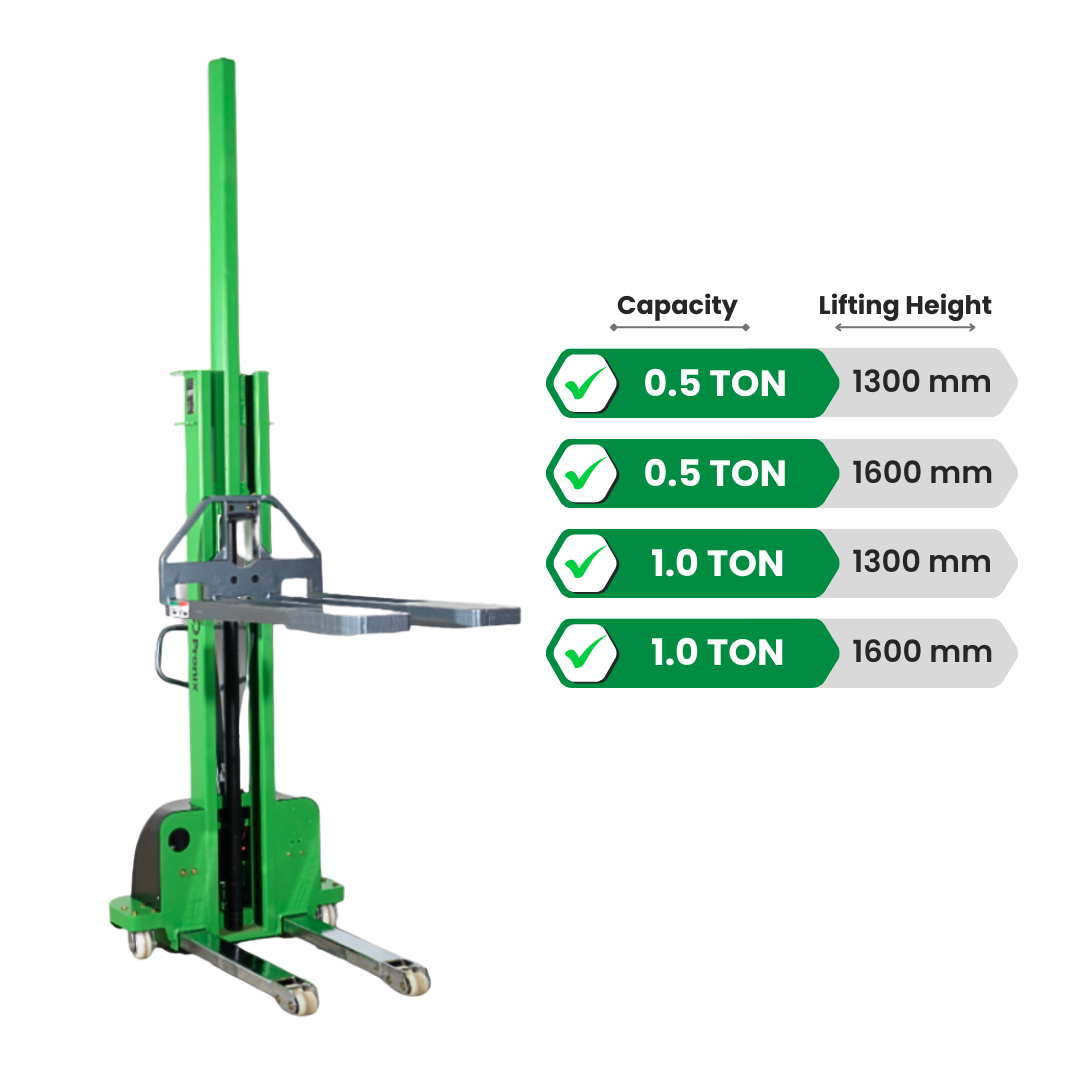

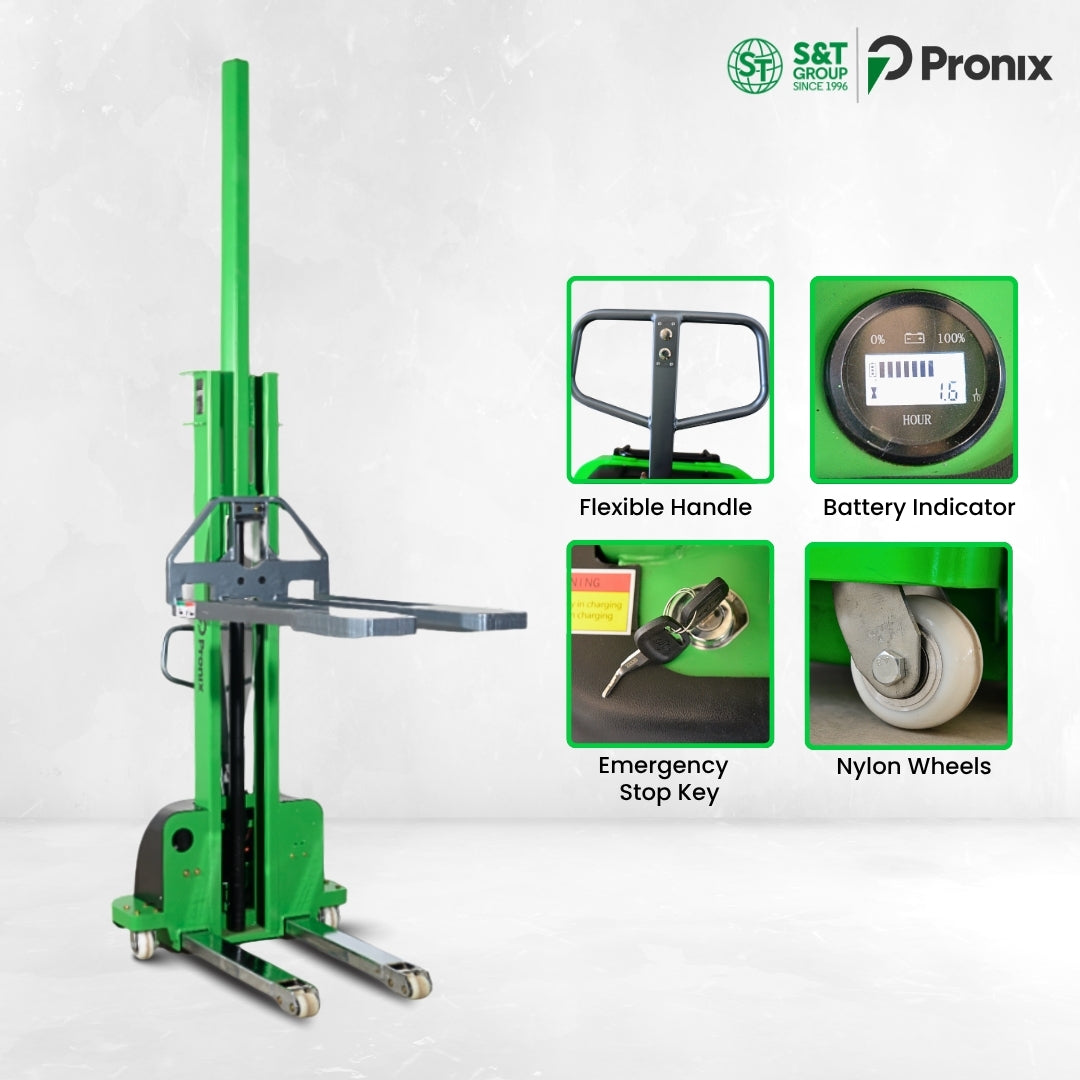

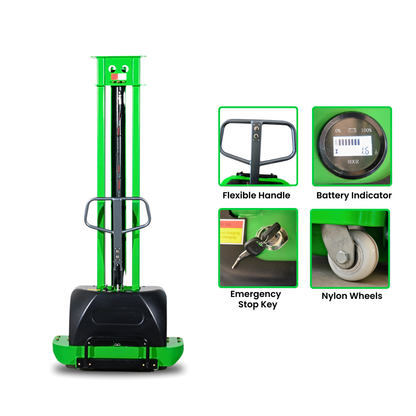

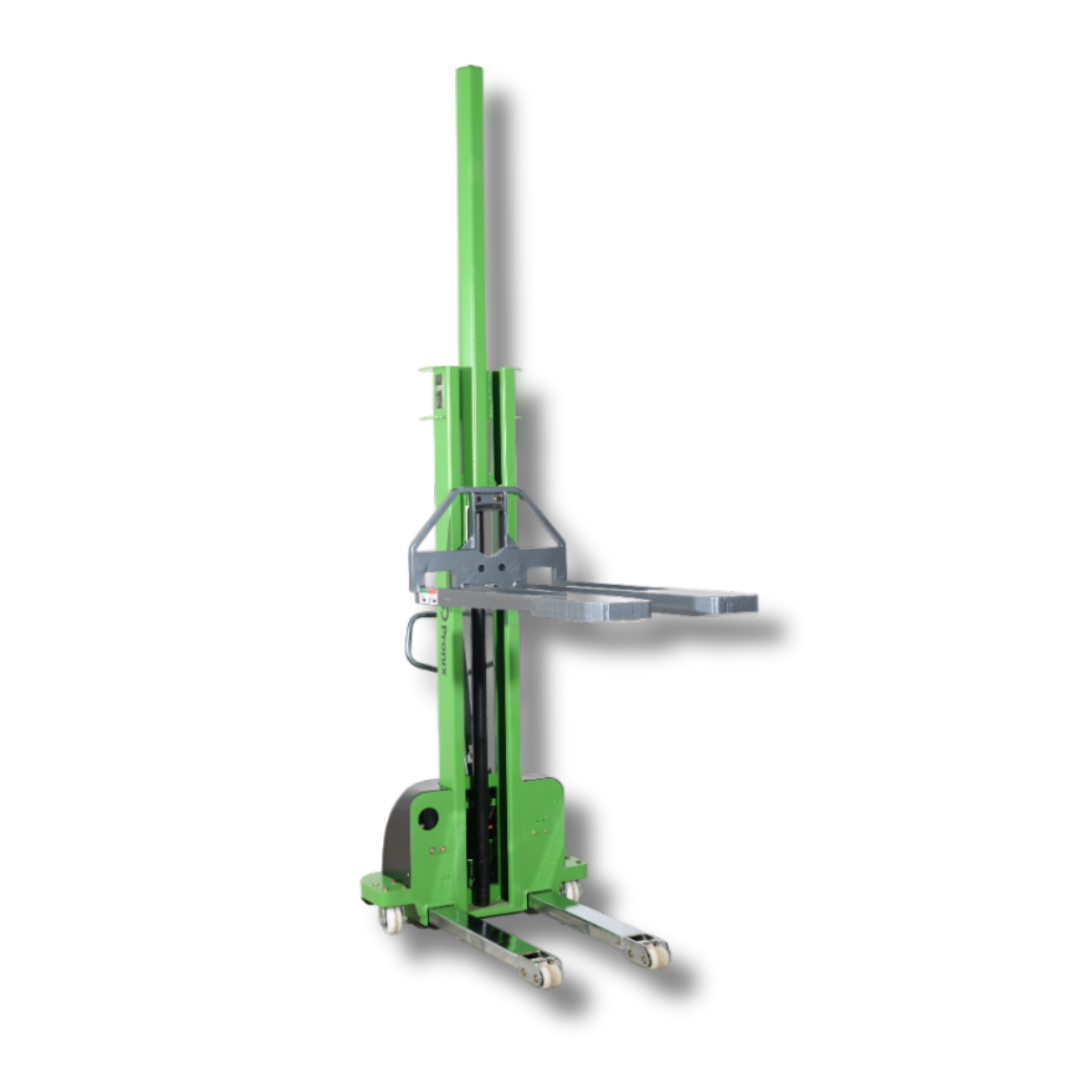

Self Loading All-in-One Stacker Semi-Electric Lifting Capacity 1000Kg, 1.6m Lifting Height PNXSESLS-1016 - Pronix

Name: Self Loading All-in-One Stacker Semi-Electric Lifting Capacity 1000Kg, 1.6m Lifting Height PNXSESLS-1016 - Pronix
Brand: Pronix
SKU: 1000016185
Price: 348100.0 INR
Availability: InStock

Self Loading All-in-One Stacker Semi-Electric Lifting Capacity 1000Kg, 1.6m Lifting Height PNXSESLS-1016 - Pronix

SKU:1000016185

Rs.348,100.00

~~Rs.428,165.00~~ Rs.348,100.00

Sale Out of Stock

(Inclusive of all the taxes)

In stock

Product variants

Free Shipping

Quantity

Specification:

Brand - Pronix
Type - Semi-Electric Self-Loading Stacker
Model - PNXSESLS-1016
Capacity - 1000 Kg
Load Center Distance - 500mm
Fork Outer Spacing - 685mm
Fork Length - 1195mm
Operation Type - Walking Type
Forward & Backward - Manual
Lifting Up & Down - Electric
Drive Wheel Size - Ø 250 x 74mm
Load Wheel Size - Ø 80 x 60 mm
Middle Wheel - Ø 65 x 30 mm
Fork Lift Height - 1600mm
Fork Starting Height from the Ground - 81mm
Wheel Base - 974mm
Vehicle Length - 1650mm
Body Thickness - 409mm
Body Width - 658mm
Front Track - 518mm
Single Fork Width - 253mm
Minimum Turning Radius - 1173mm
Maximum Driving Speed (Turtle Speed) - 0.5 km/h
Maximum Driving Speed (Full Load) - 3.0 km/h
Motor - DC 0.6 kW
Lift Motor - DC 2.2 kW
Battery - Lithium Battery (48 V)
Battery Capacity - 15 Ah
Battery Weight - 5 Kg
Overall Weight (Include Battery) - 382 Kg

Description:

Pronix Semi-Electric Self Loading Stacker 1000Kg with Lifting Height 1.6m is a professional-grade stacking device offering a 1000 kg capacity with a 500mm load center distance, 685mm fork outer spacing, 1195mm fork length, and 81mm fork starting height.
It offers a maximum driving speed of 3.0 km/h and lithium battery 48V with 15 Ah capacity.
It has a robust total weight of 382 kg and features a 0.6 kW DC motor and 2.2 kW DC lift motor.
It has a maximum driving speed (full load) of 3.0 km/h, a fork starting height from the ground of 81mm, and a maximum turning radius of 1173mm.
