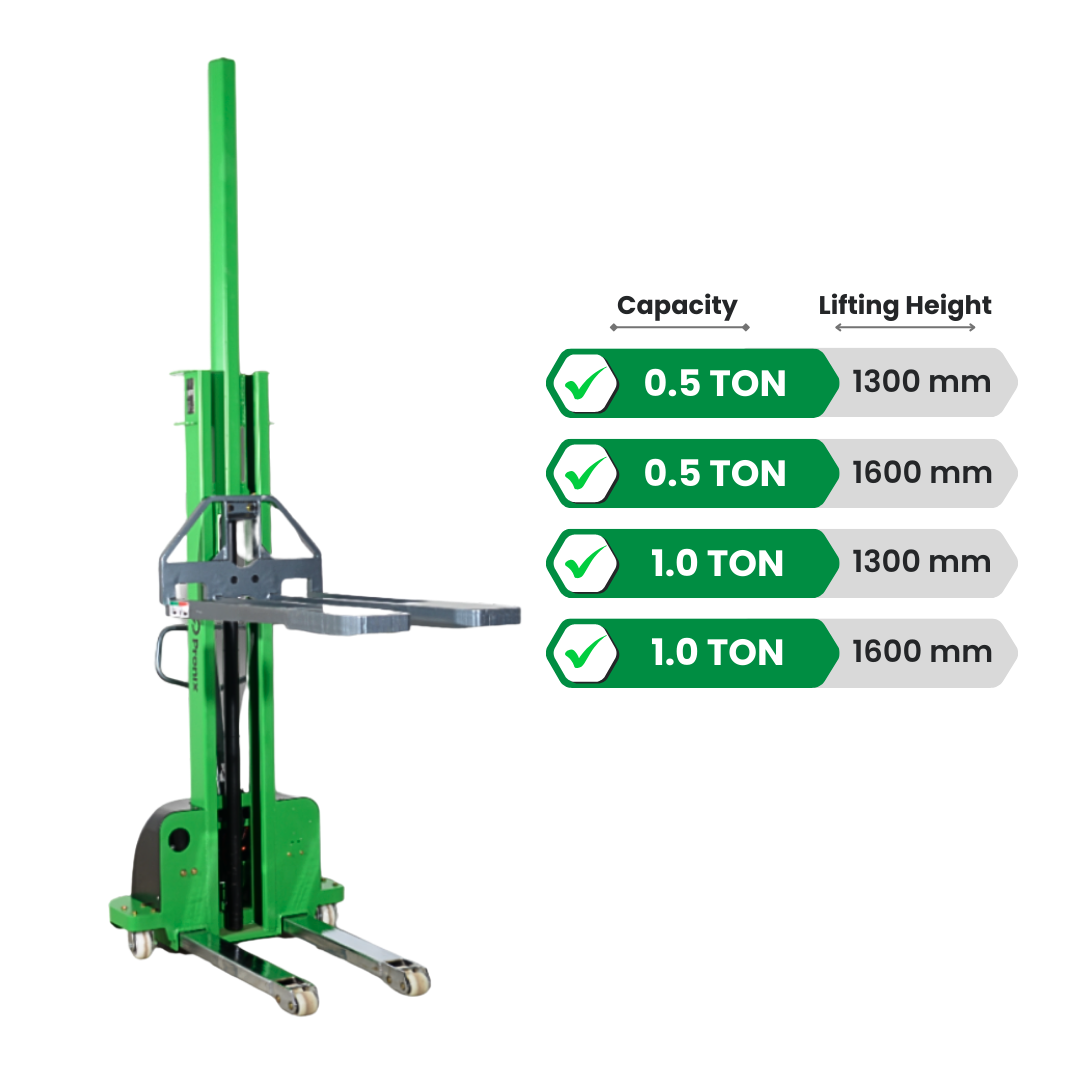

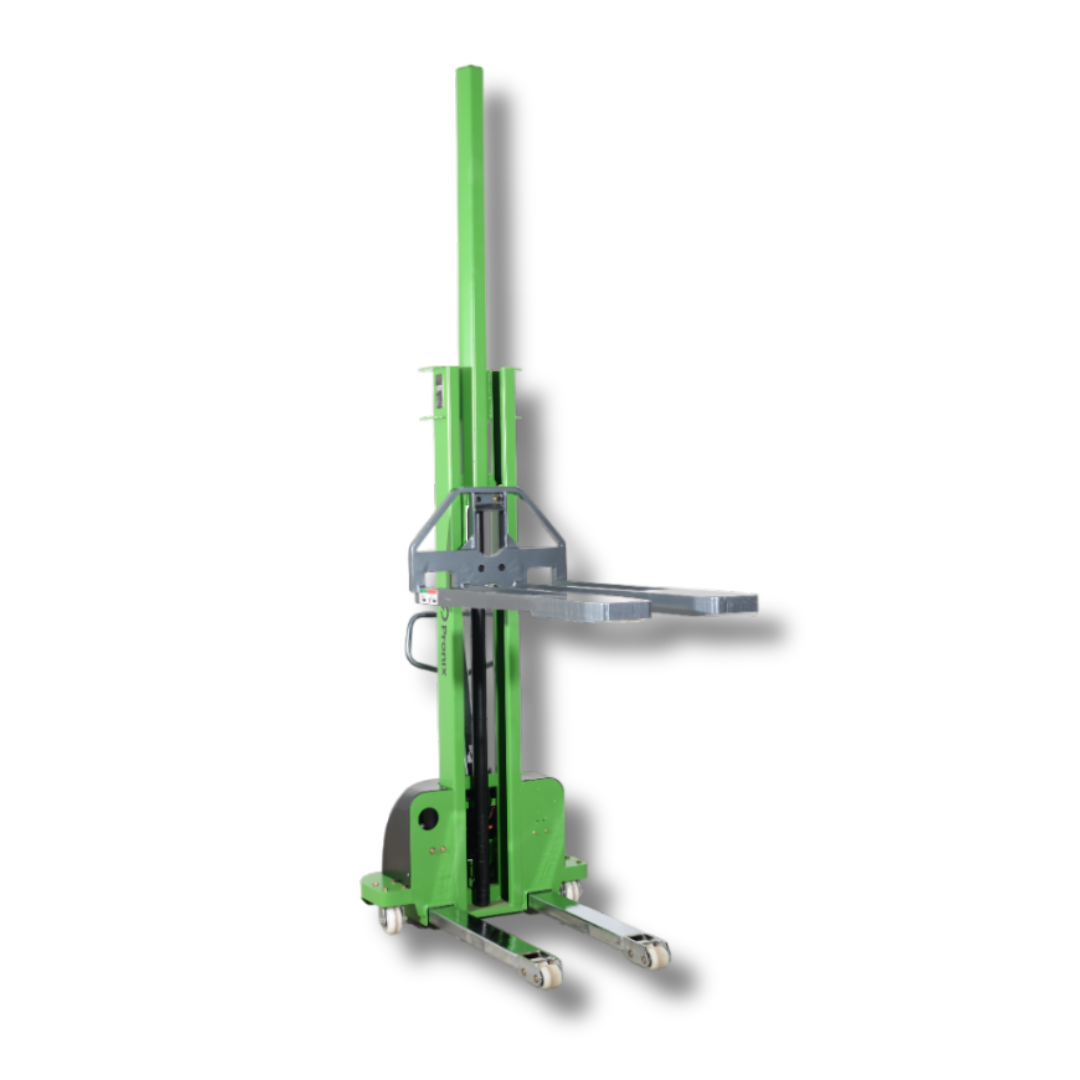

Self Loading All-in-One Stacker Semi-Electric Lifting Capacity 1000Kg, 1.3m Lifting Height PNXSESLS-1013 - Pronix

Specification:

• Brand - Pronix
• Type - Semi-Electric Self-Loading Stacker
• Model - PNXSESLS-1013
• Capacity - 1000 Kg
• Load Center Distance - 500mm
• Fork Outer Spacing - 685mm
• Fork Length - 1195mm
• Operation Type - Walking Type
• Forward & Backward - Manual
• Lifting Up & Down - Electric
• Drive Wheel Size - Ø 250 x 74mm
• Load Wheel Size - Ø 80 x 60 mm
• Fork Lift Height - 1300mm
• Fork Starting Height from the Ground - 81mm
• Wheel Base - 974mm
• Vehicle Length - 1650mm
• Body Thickness - 409mm
• Body Width - 658mm
• Front Track - 518mm
• Single Fork Width - 253mm
• Minimum Turning Radius - 1173mm
• Maximum Driving Speed (Turtle Speed) - 0.5 km/h
• Maximum Driving Speed (Full Load) - 3.0 km/h
• Motor - DC 0.6 kW
• Lift Motor - DC 2.2 kW
• Battery - Lithium Battery (48 V)
• Battery Capacity - 15 Ah
• Battery Weight - 5 Kg
• Overall Weight (Include Battery) - 382 Kg

Description:

• Pronix Semi-Electric Self Loading Stacker 1000Kg PNXSESLS-1013 is a versatile stacker with a maximum load capacity of 1000Kg and a lifting height of 1.3m.
• Its DC motor of 0.6kW and DC lift motor of 2.2kW provide smooth operation and the lithium battery ensures a powerful, long-lasting performance.
• Its compact construction with a body thicknes of 409mm and body width of 658mm offers superior maneuverability and a minimum turning radius of 1173mm.
• This semi-electric self-loading stacker is built to suit the toughest environments.
