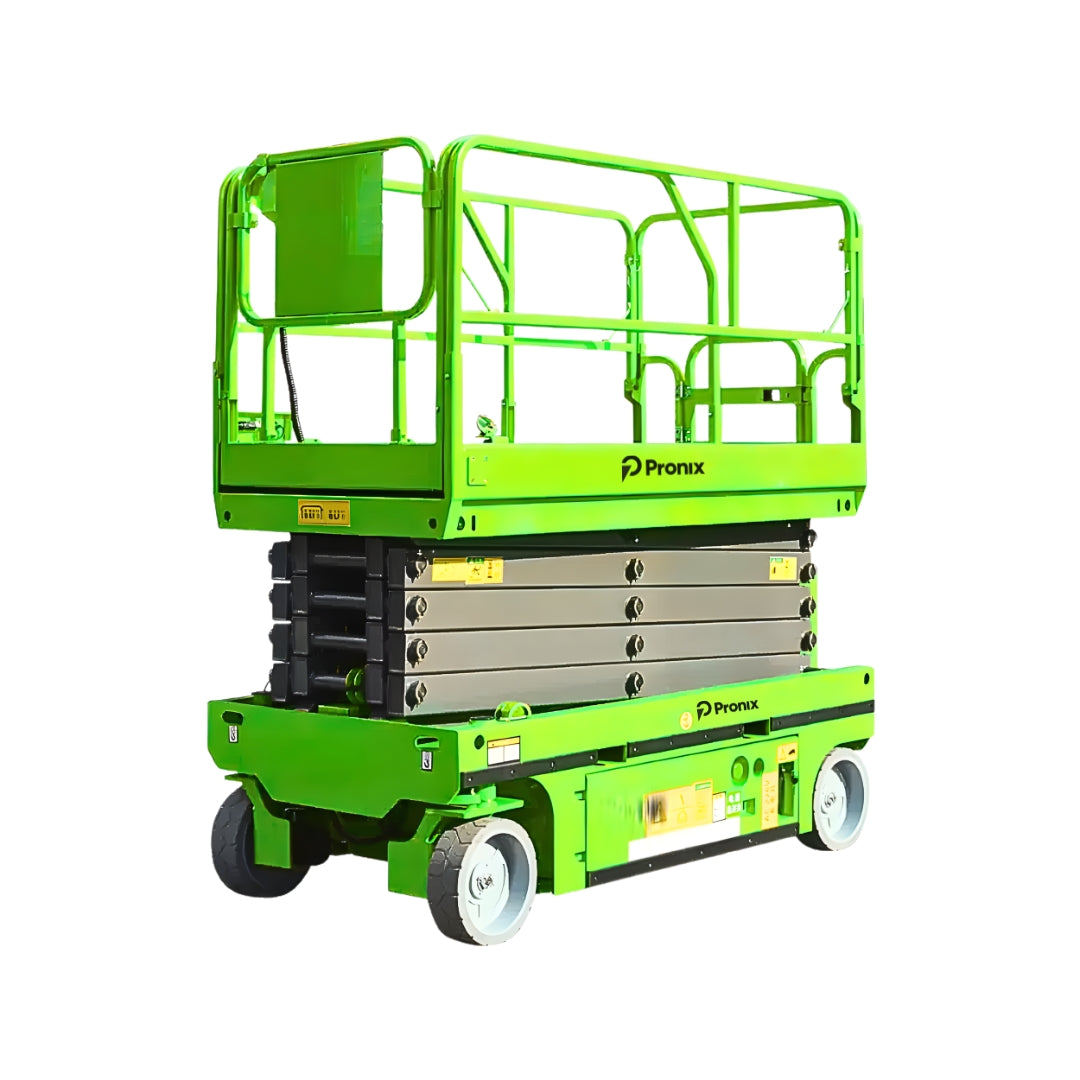

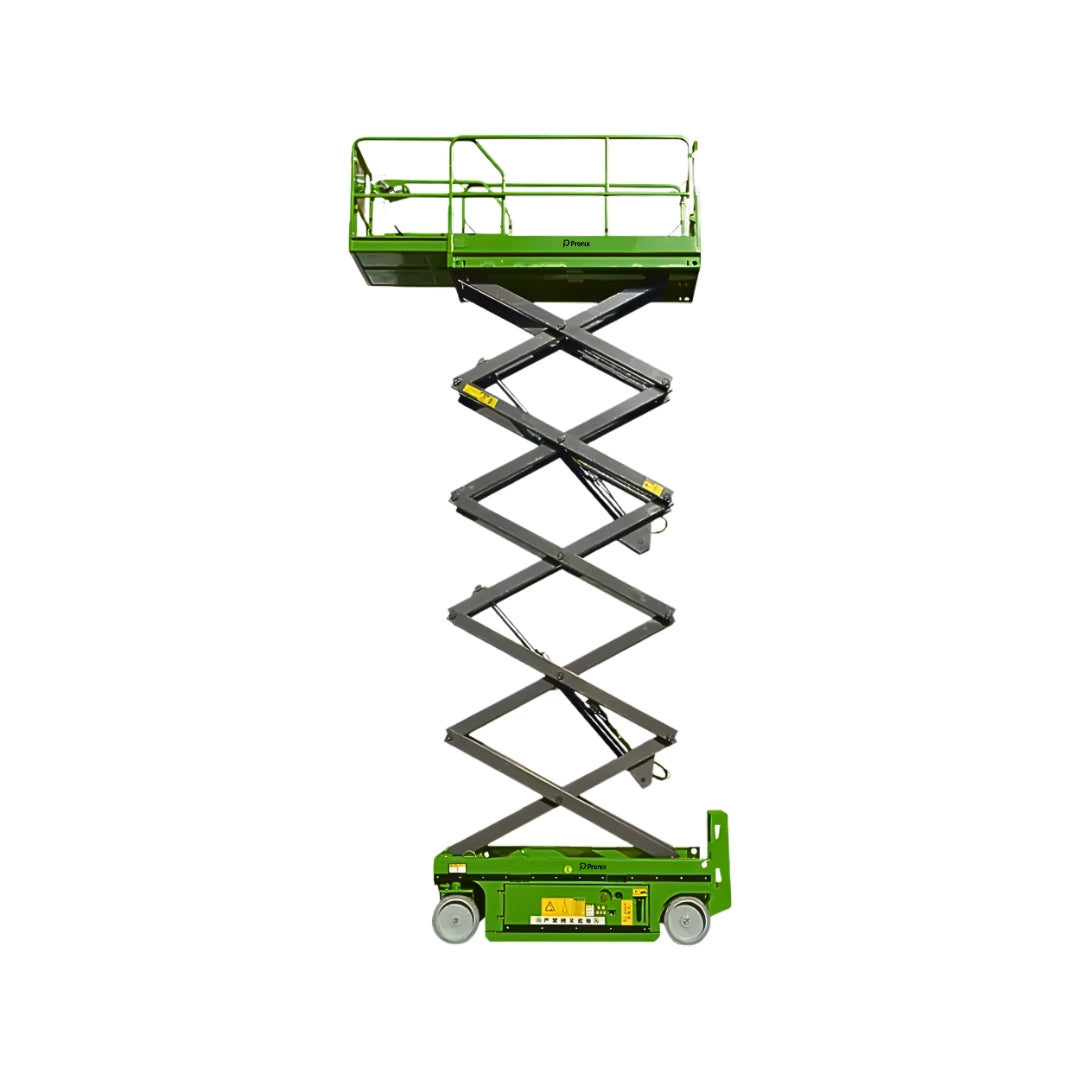

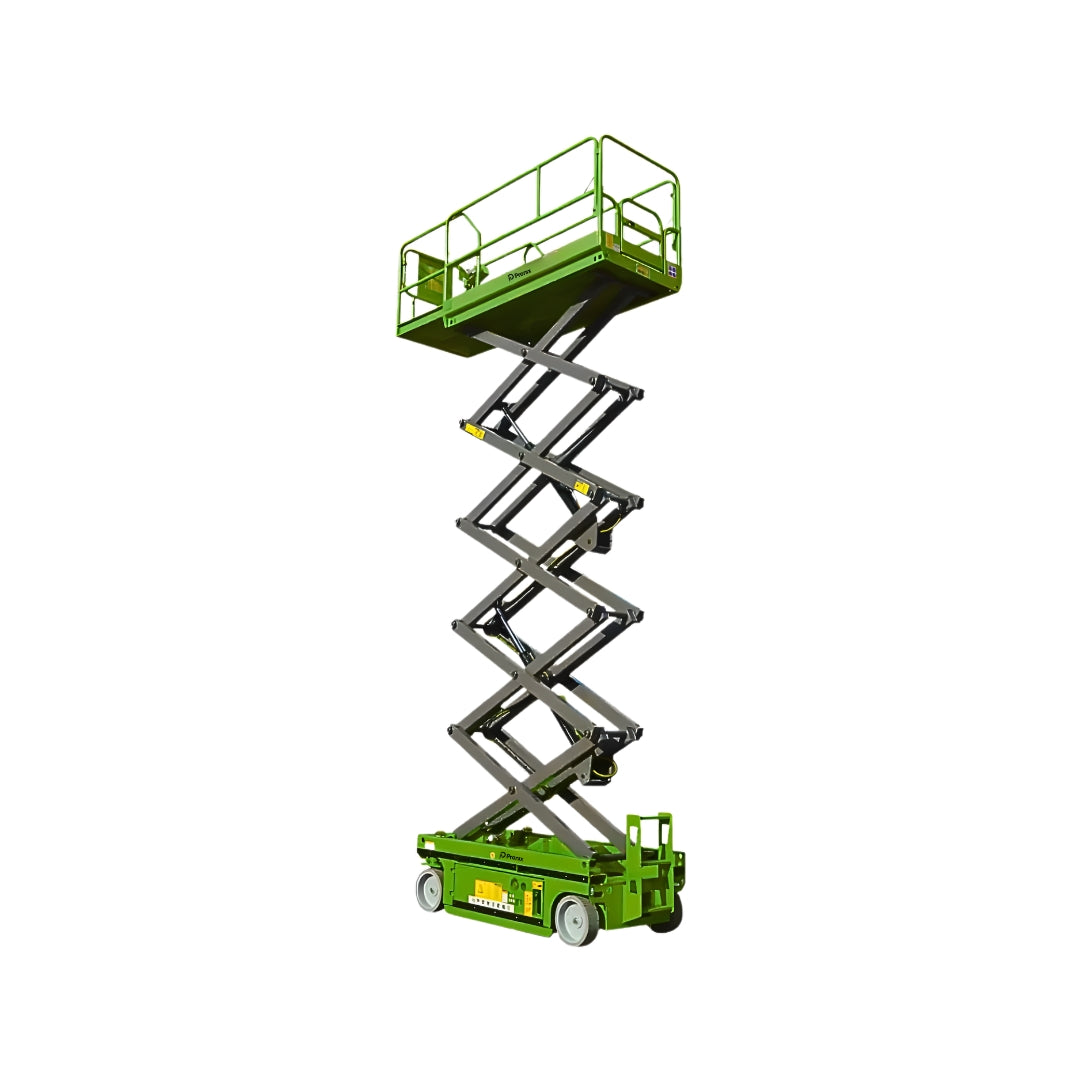

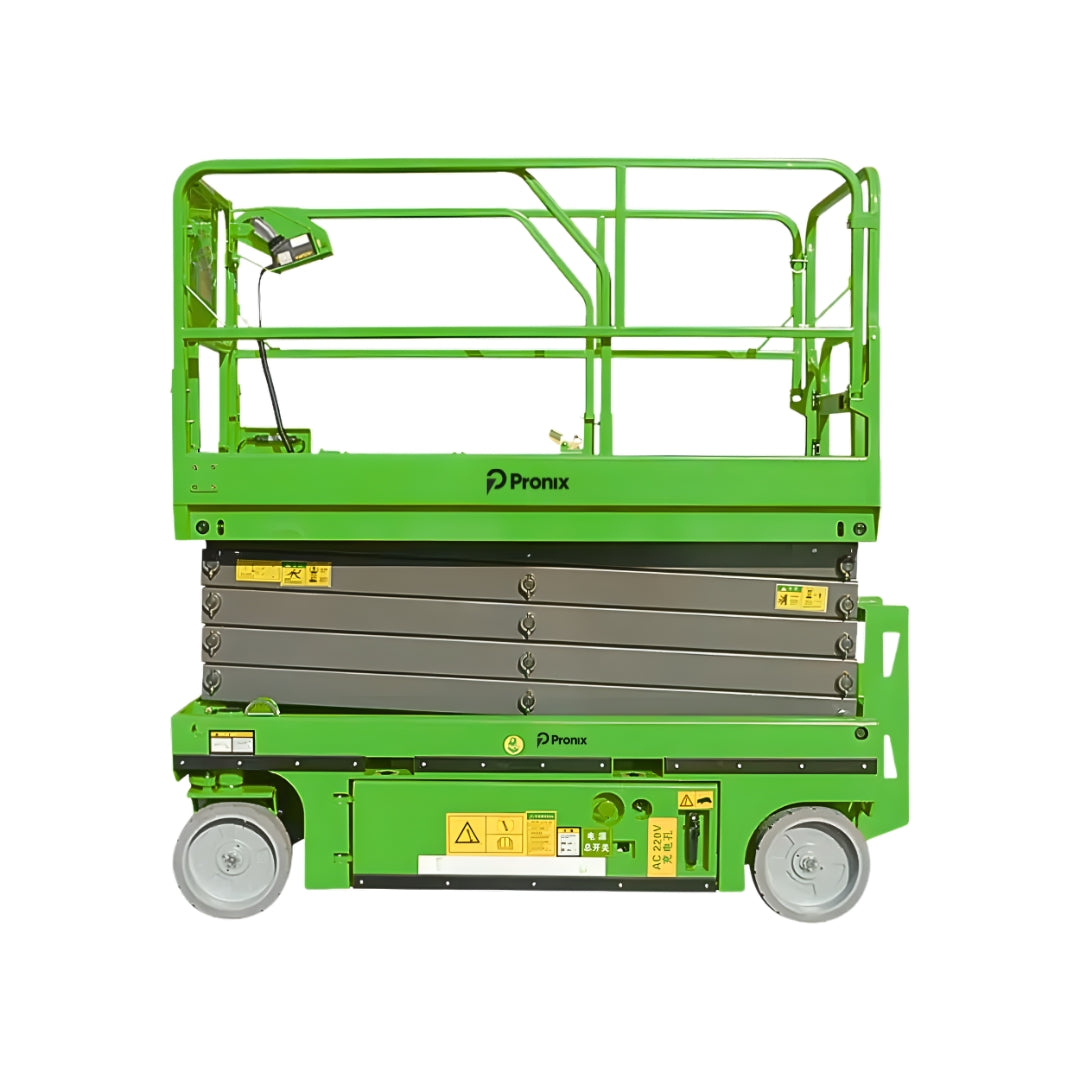

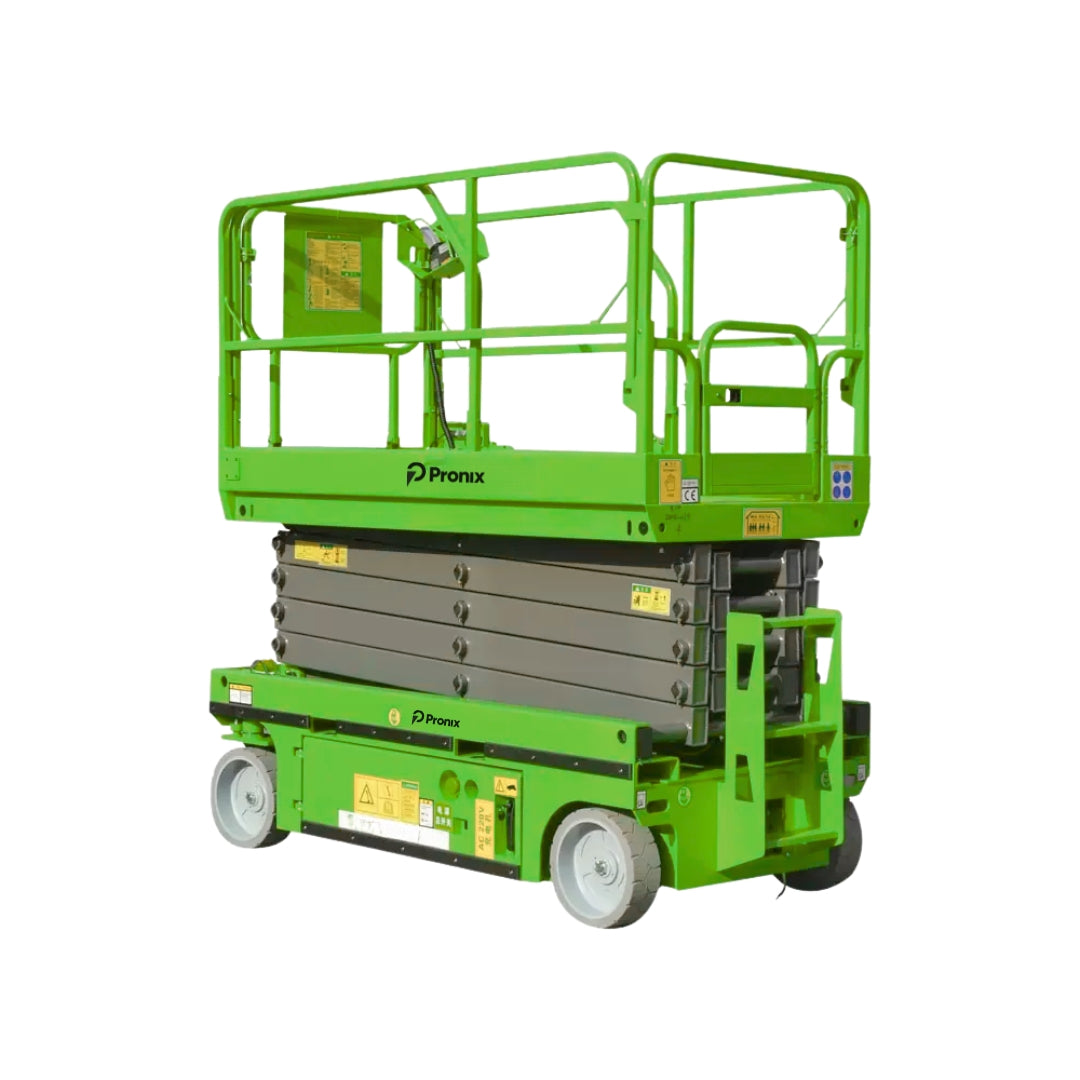

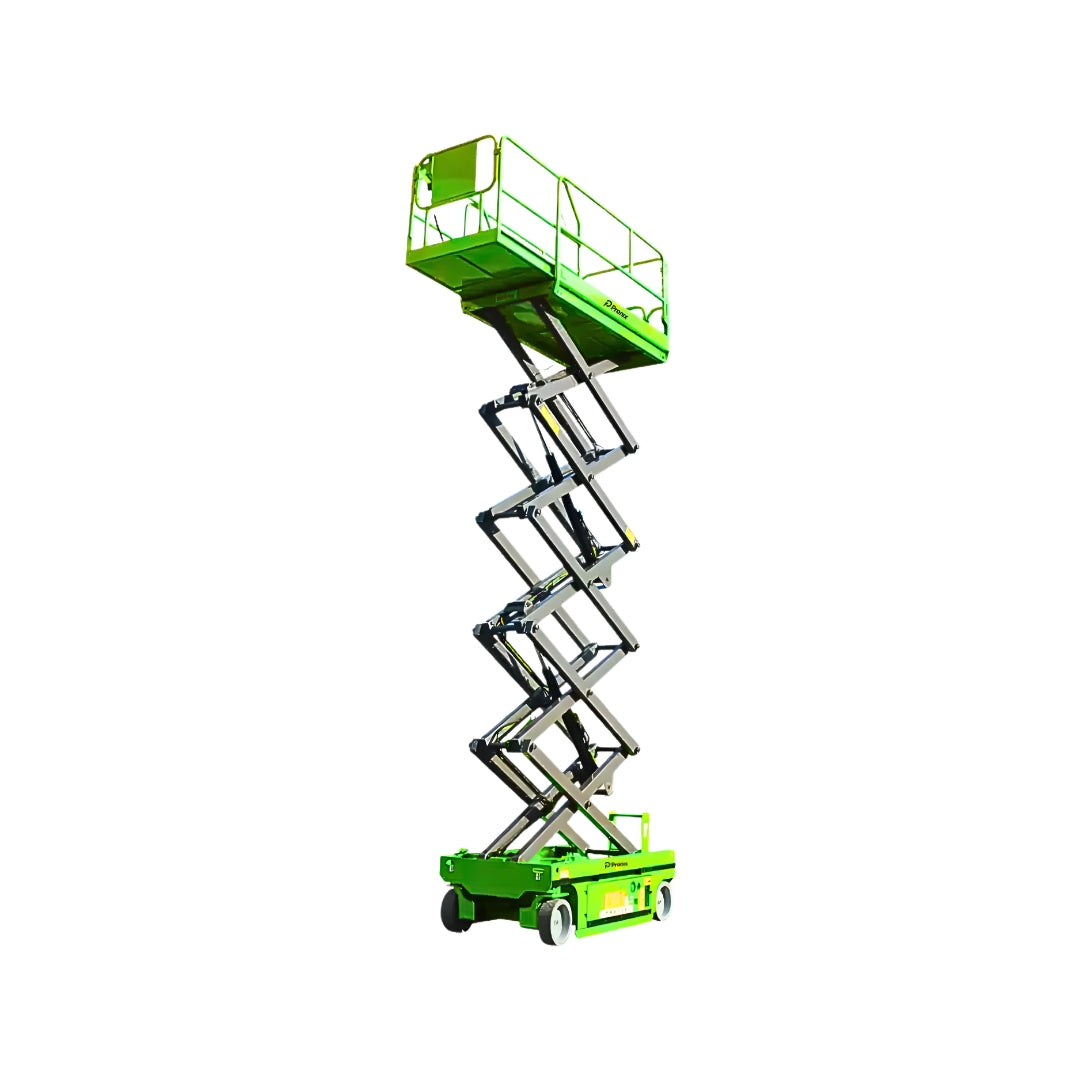

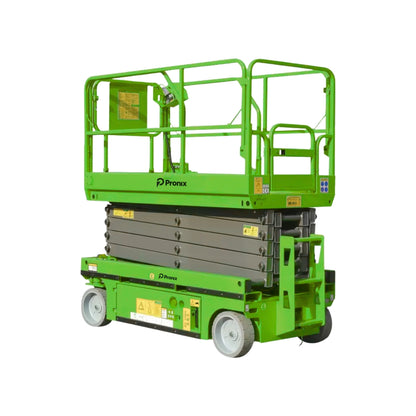

Pronix Self-Propelled Scissor Lift Platform 320Kg Capacity 10m Lifting Height PNXSPSLP-1032

Specifications:

• Brand - Pronix
• Type - Self-Propelled Scissor Lift Platform
• Model No. - PNXSPSLP-1032
• Working Height - 12 m
• Platform Height - 10 m
• Loading Capacity - 320 Kg
• Loading Capacity of Extend Platform - 113 Kg
• Platform Size -2300 x 1130 mm
• Outlook Size - 2390 x 1160 x 2470 mm
• Extend Platform Size - 900 mm
• Minimum Ground Clearance - 106 / 29 mm
• Wheelbase - 1865 mm
• Lifting / Drive Motor - 24V / 4.5 kW
• Speed (Gather / Lifting) - 3.5 Km / 0.8 Km/h
• Storage Battery - 4 x 6V / 200 Ah
• Charger - 24V / 30A
• Max. Climb Capacity - 25%
• Maximum Working Angle - 1.5 / 3°
• Tyre - Ø 381 x 127 mm
• Weight - 2550 Kg
