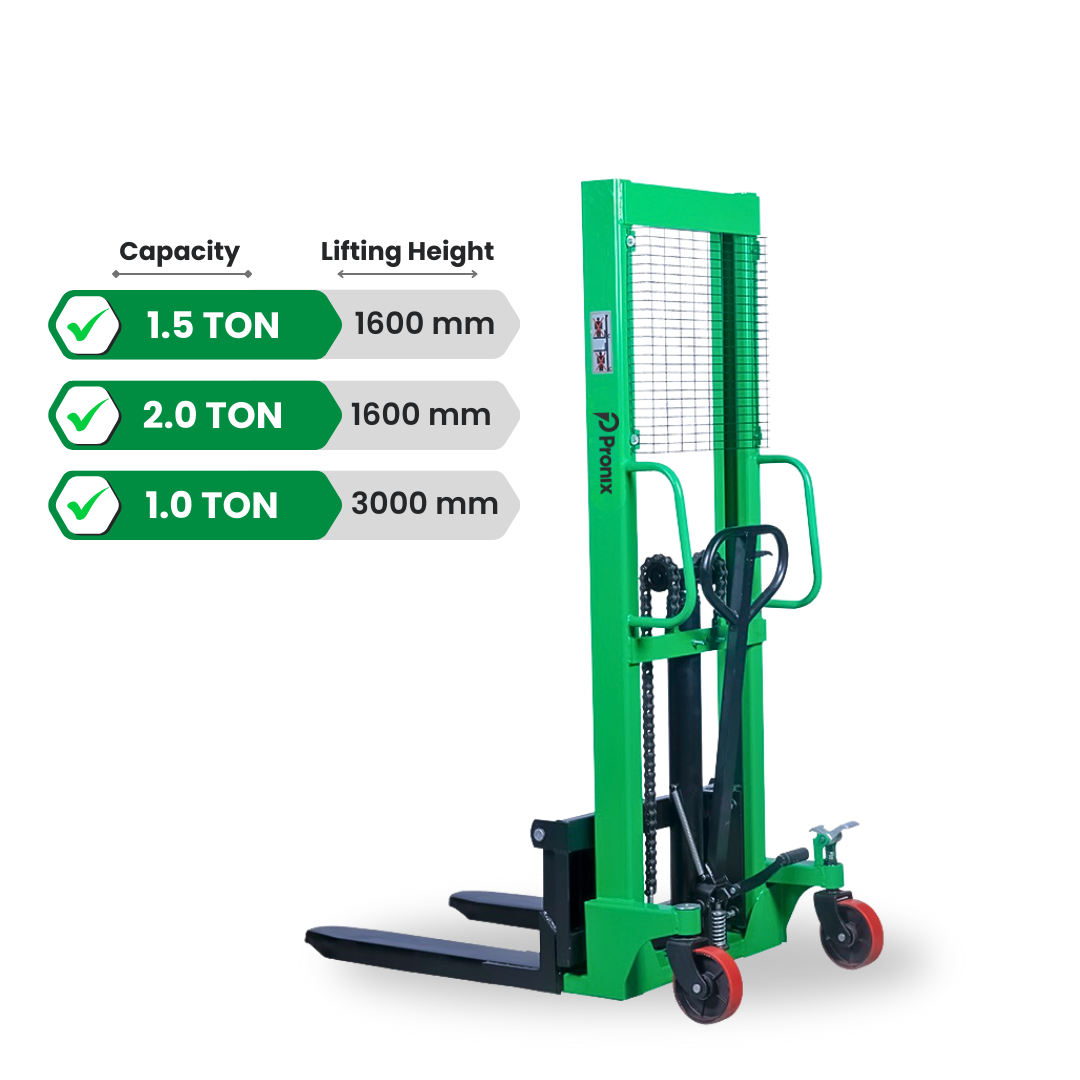

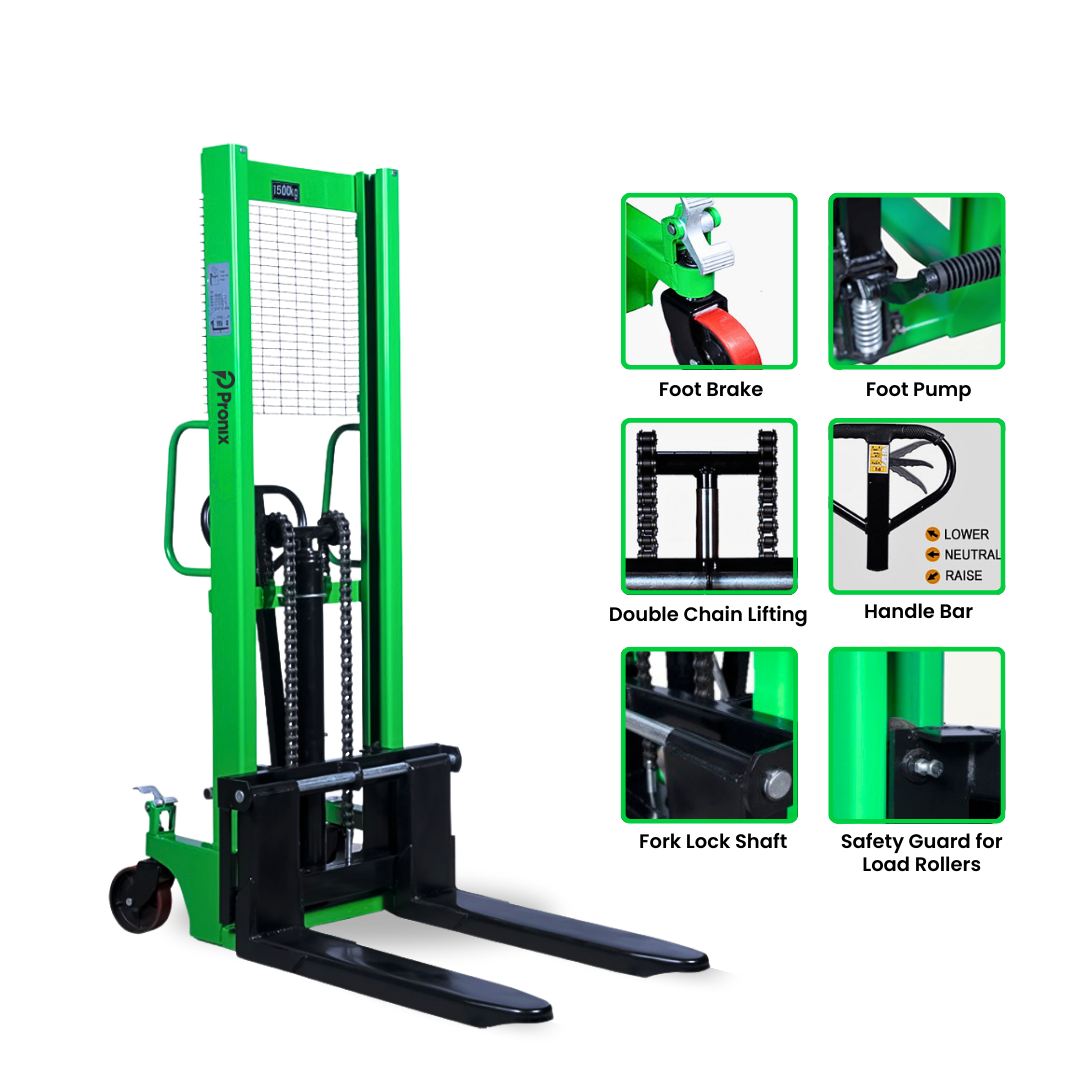

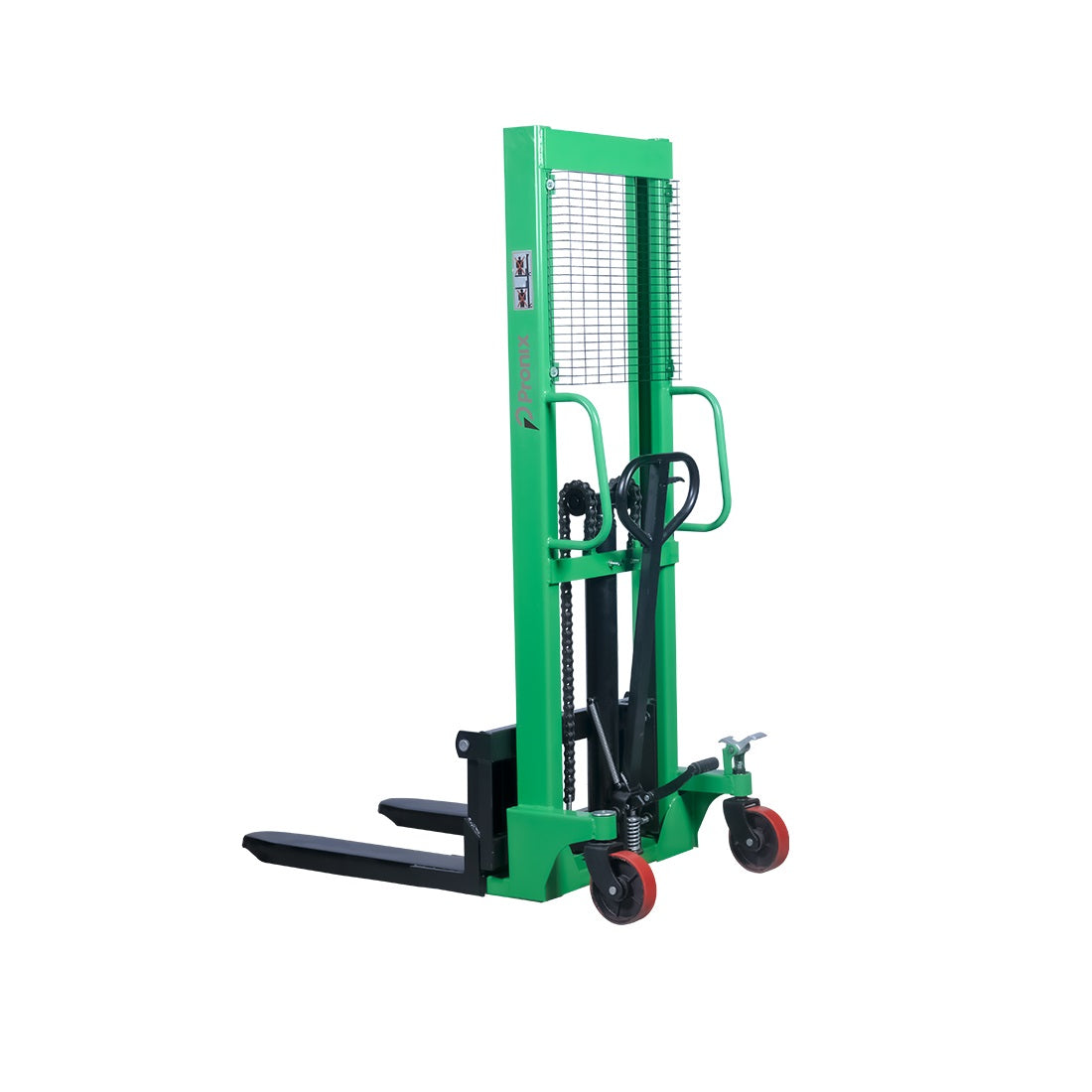

Pronix Manual Stacker 1 Ton With 3m Lift Height PNXMS-1030

• Brand - Pronix
• Type - Manual Stacker
• Model No. - PNXMS 1030
• Capacity - 1000 Kg
• Fork Length - 1150 mm
• Overall Fork Width - 780 mm
• Single Fork Width - 140-170 mm
• Ground Clearance - 70 mm
• Lowering Speed - Controllable
• Turning Radius - 1450 mm
• Overall Raise From Ground - 3000 mm
• Lowered Fork Height - 80-90 mm
• Adjustable Width of Forks - 320-750 mm
• Lifting Speed (Per Stroke) - 20 mm
• Material / Material Thickness - MS / 3.8 mm
• Steering Wheel Size - 180 x 50 mm
• Rollers Size - 80 x 70 mm
• Rollers - Tandem, PU
• Pump Material - Cast Steel, Machined
• Pump Finish - Powder Coating
• Sharp Edges - No
• Weight - 280 Kg

Description:

• It is designed to lift and transport pallets and is ideal for unloading trucks in facilities without loading docks.
• It is robust construction and used to lift heavy materials.
• Designed for ease of use, the safe and efficient movement of goods with very little effort.
• Heavy duty and reinforced forks for the greatest strength and durability.
• Pronix Hydraulic Manual Stacker 1 Ton PNXMS-1030 has a fork length of 1150 mm and a mast height of >2000 mm.
• It has a maximum lifting height of 3000 mm and a load center of 580 mm.
• Its minimum fork height is 80-90 mm, and it has a single fork width of 140-170 mm.
• The turning radius of manual stacker is 1450 mm and a cylinder stroke is 1500 mm.
• The load capacity of Manual Stacker is 1000 Kg.
