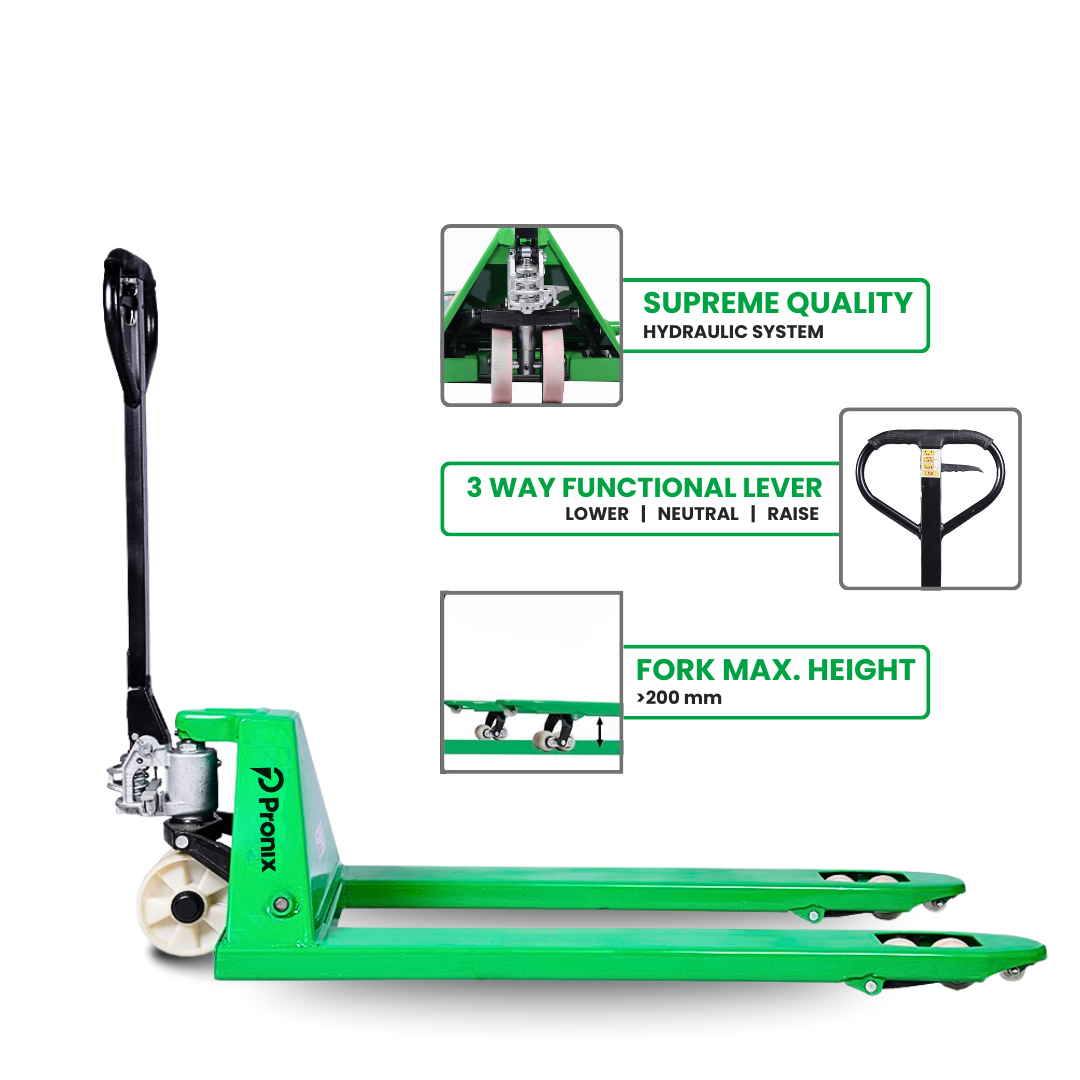

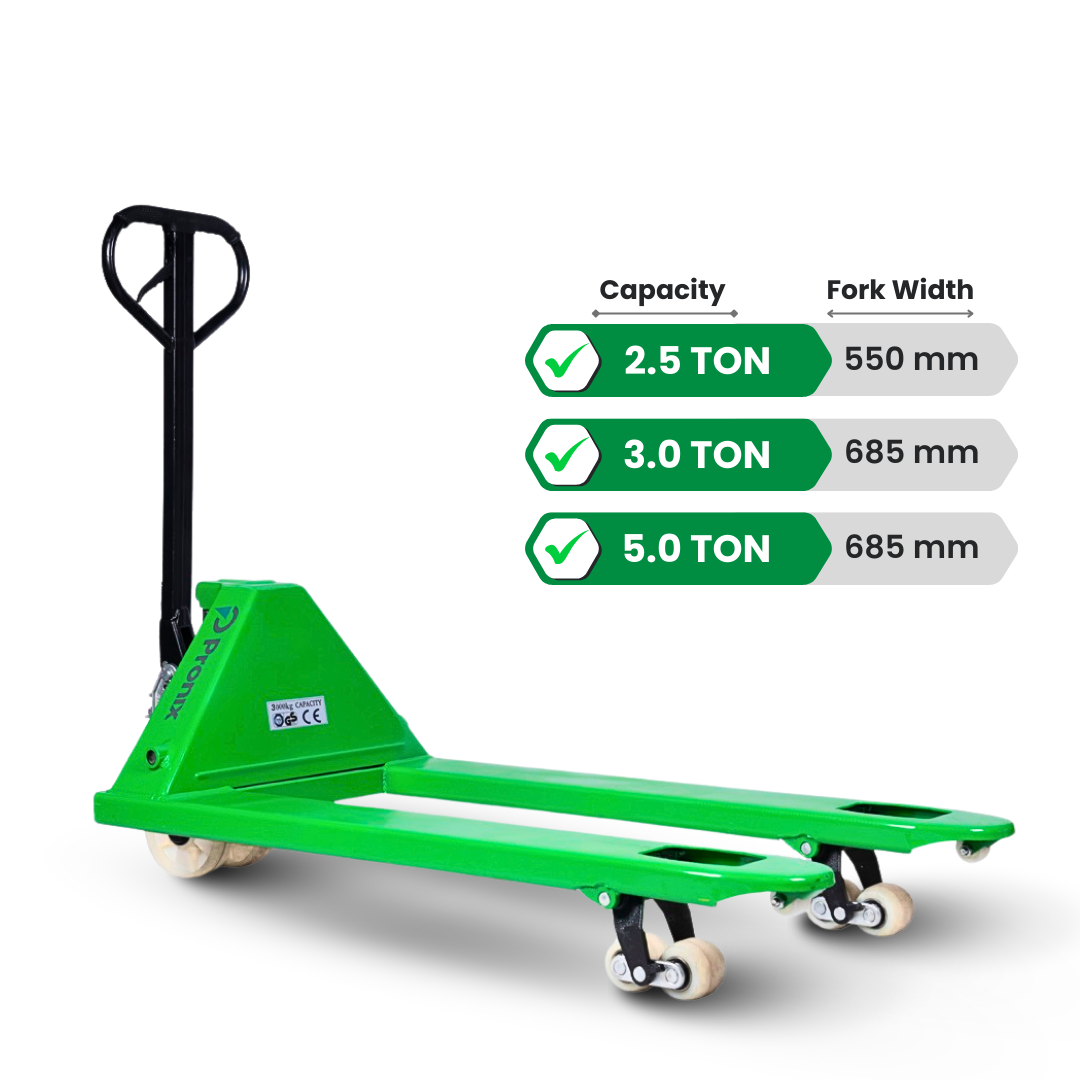

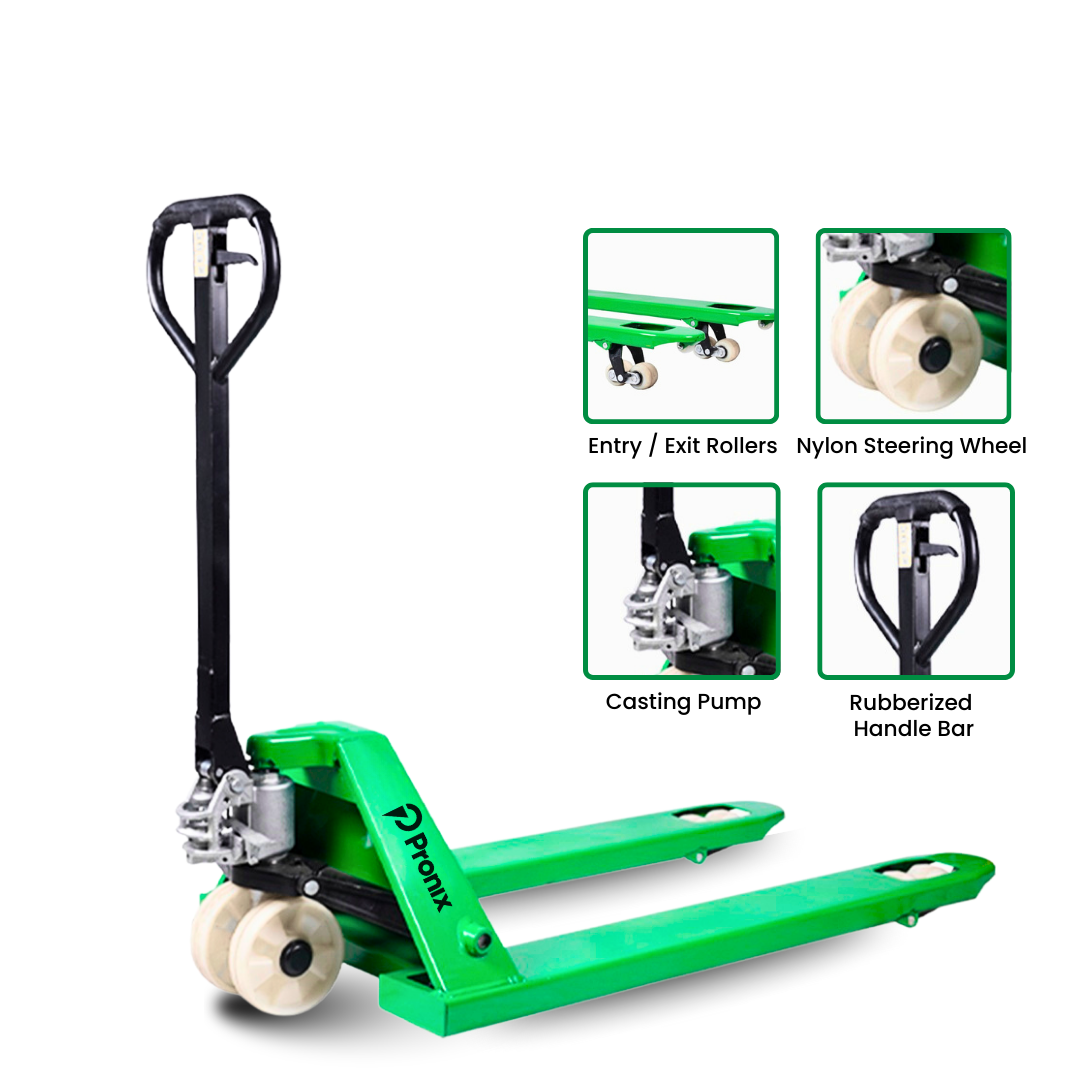

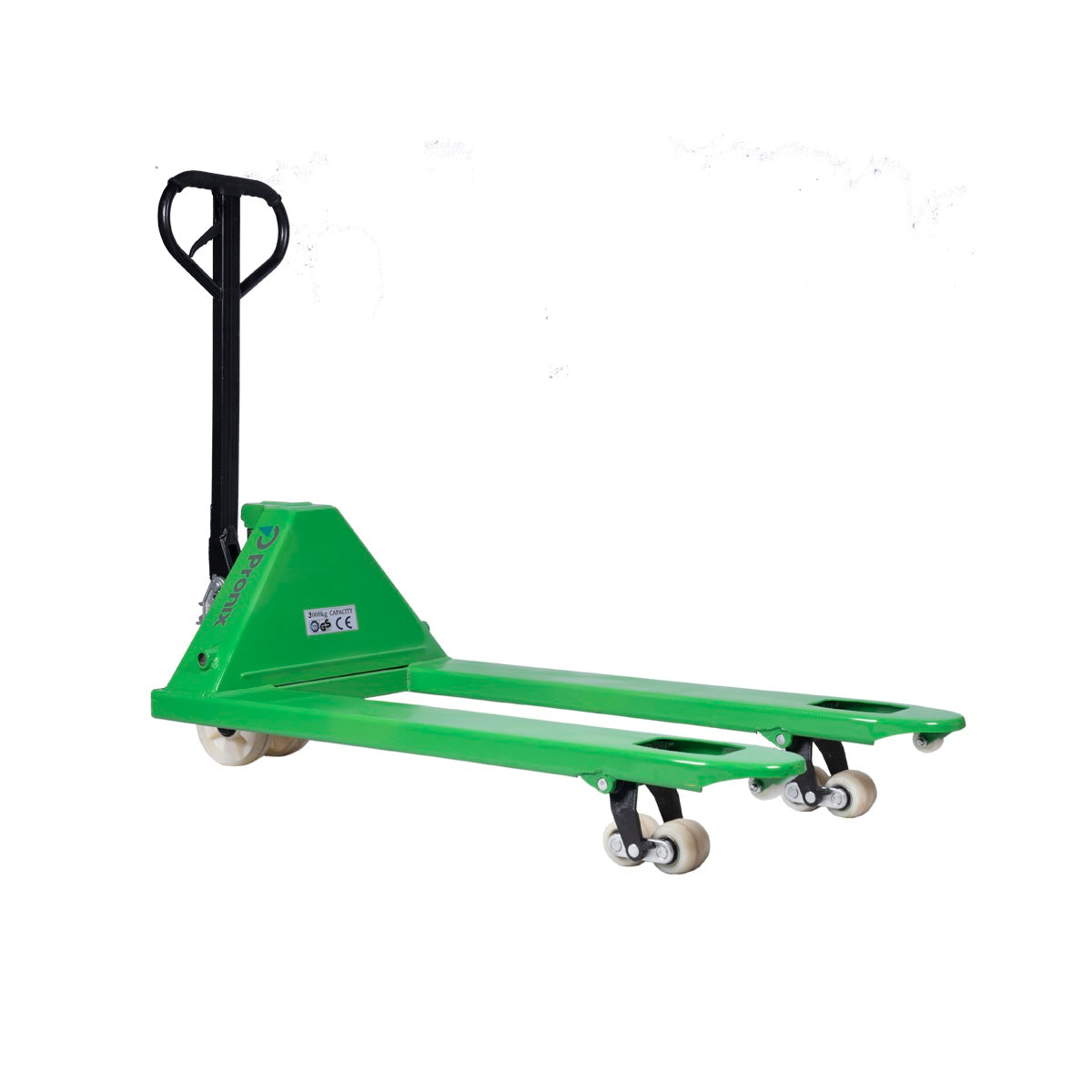

Pronix Hand Pallet Truck 5 Ton With Fork Length 1210x685mm PNXPT-50

Specification:

• Brand - Pronix
• Type - Hand Pallet Truck
• Model No. - PNXPT50
• Capacity - 5000 Kg
• Fork Length - 1210 mm
• Overall Fork Width - 685 mm
• Single Fork Width - 180 mm
• Ground Clearance - 30 mm
• Total Height - 1200 mm
• Turning Radius - 1265 mm / 210°
• Overall Raise From Ground - >200 mm
• Lowered Fork Height - 90 mm
• Overall Length - 1650 mm
• Lifting Capacity (Per Stroke) - 20 mm
• Material / Material Thickness - MS / 6 mm
• Rollers Size - 80 x 70 mm
• Steering Wheel Size - 200 x 55 mm
• Rollers - Nylon
• Wheel Type - Nylon
• Entry / Exit Roller - Yes
• Distance Between Forks - 330 mm
• Pump Material - Cast Steel, Machined
• Pump Finish - Powder Coating
• Steering Hub - Aluminium Hub
• Proportional Lowering - Yes
• Support Wheels - Yes
• Quick Lift - Yes
• Sharp Edges - No
• Net Weight - 122 Kg

Description:

• Hand pallet trucks are specially designed for smooth horizontal movement inside the operating areas.
• Complete pump design with reliable leak-proof pump eliminating maintenance and extending the service time.
• Fork Lowering speed is controllable, operated by hand control.
• Standard powder coat finish which is resistant to chips and normal corrosion.
• Pronix hand pallet truck is a hydraulic pallet truck that can hold up to 5000 kg.
• It has a fork length of 1210 mm.
• This hand Pallet truck comes with Nylon Wheels of 80 x 70 mm.
• The material thickness is 5mm and the steering wheel size is 200 x 50 mm.
• The single fork width is 160 mm and the lifting capacity per stroke is 12 mm.
• Its minimum turning radius is 1265 / 210° Degree.
