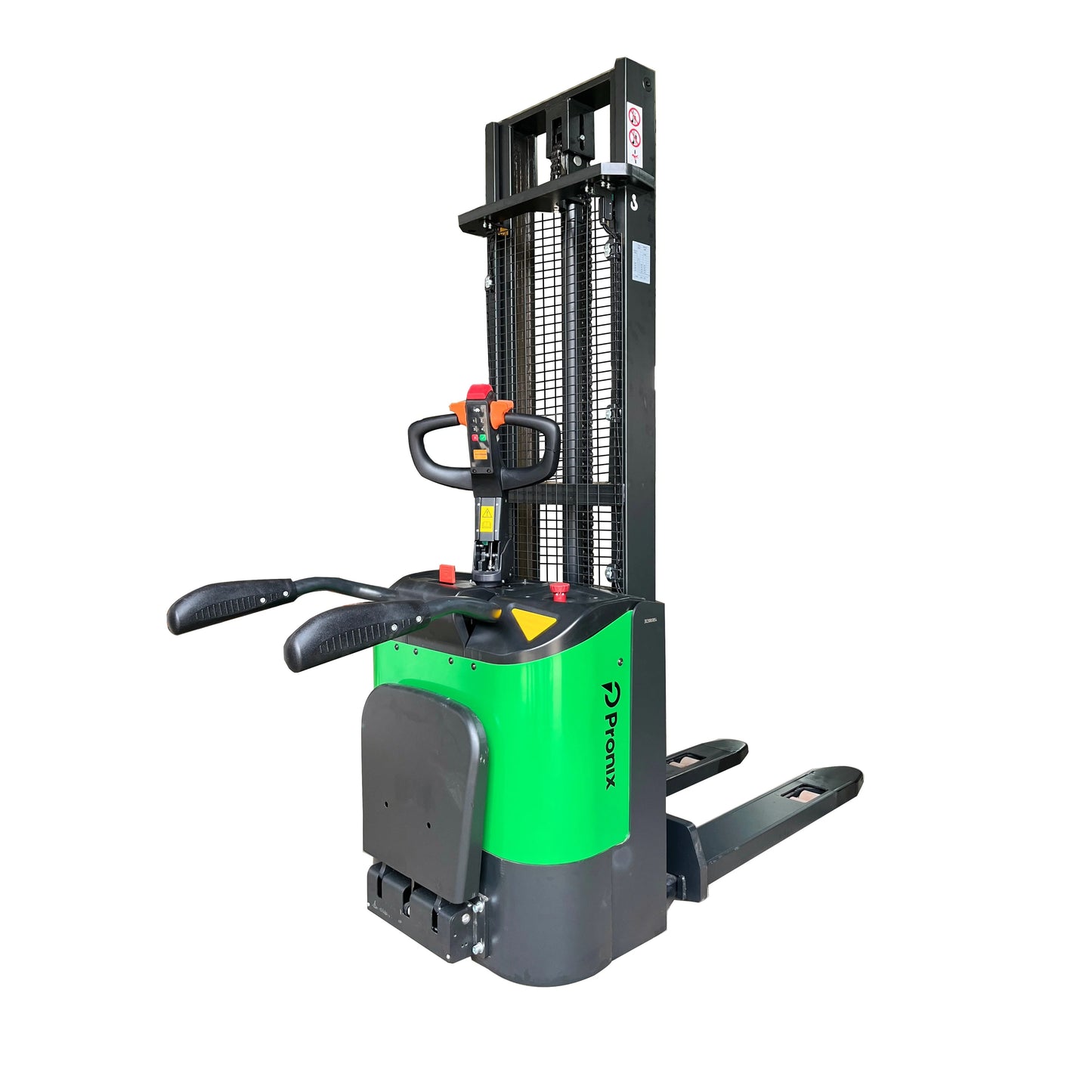

Pronix Fully Electric Stacker 1.5 Ton 3.5m Lifting Height PNXFES-35R

Specification:

• Brand - Pronix

• Type - Fully Electric Stacker

• Model No. - PNXFES-35R

• Capacity - 1500 Kg

• Power - Battery

• Operate Type - Stand Up

• Load Center Distance - 500mm

• Load Distance, Center of Drive Axle to Fork - 700mm

• Wheel Base - 1232mm

• Axle Loading, Laden Driving / Load - 830 / 1535 Kg

• Axle Loading, Unladen Driving / Load - 663 / 202 Kg

• Wheel Type - Polyurethane (PU)

• Driving Wheel - 230 x 70mm

• Load Wheel - 70 x 80mm

• Driving Wheel Base - 557mm

• Load Wheel Base - 410 / 525 mm

• Lift Height - 3600mm

• Min. Height - 85mm

• Total Width - 820mm

• Handle Height During Operation - Max. 1100mm / Min. 1360mm

• Total Body Length - 717mm

• Ground Clearance - 25mm

• Total Length - 1867mm

• Fork Dimensions - 60 x 180 x 1150mm

• Fork Width - 690mm

• Turning Radius - 1487mm

• Traction Speed - Load 4.0 km/h / Unload 4.2 km/h

• Lifting Speed - Load 68 mm/s / Unload 162 mm/s

• Max. Grade Ability - Load 5% / Unload 10%

• Brake Type - Electromagnetic

• Drive Control Mode - DC Speed Control

• Traction Motor - 0.75 kW

• Lift Motor - 2.2 kW

• Battery Volts / Amp - 2*12 / 106

• Battery Weight - 2*34 Kg

• Noise - 70dB

• Weight (With Battery) - 865 Kg

Description:

• Pronix Fully Electric Stacker 1.5 Ton PNXFES-35R offers a robust lifting height of 3.6 meters, ideal for efficient warehouse operations.
• Featuring a 1.5-ton load capacity with a load center distance of 600mm, it ensures stable handling.
• Its polyurethane wheels provide durability and smooth movement, supported by a wheelbase of 1232mm and a turning radius of 1487mm for excellent maneuverability.
• With a traction speed up to 4.2 km/h unloaded and a lifting speed of 162 mm/s unloaded, this stacker balances speed and precision.
• Compact dimensions and adjustable handle height enhance operator comfort and control.
