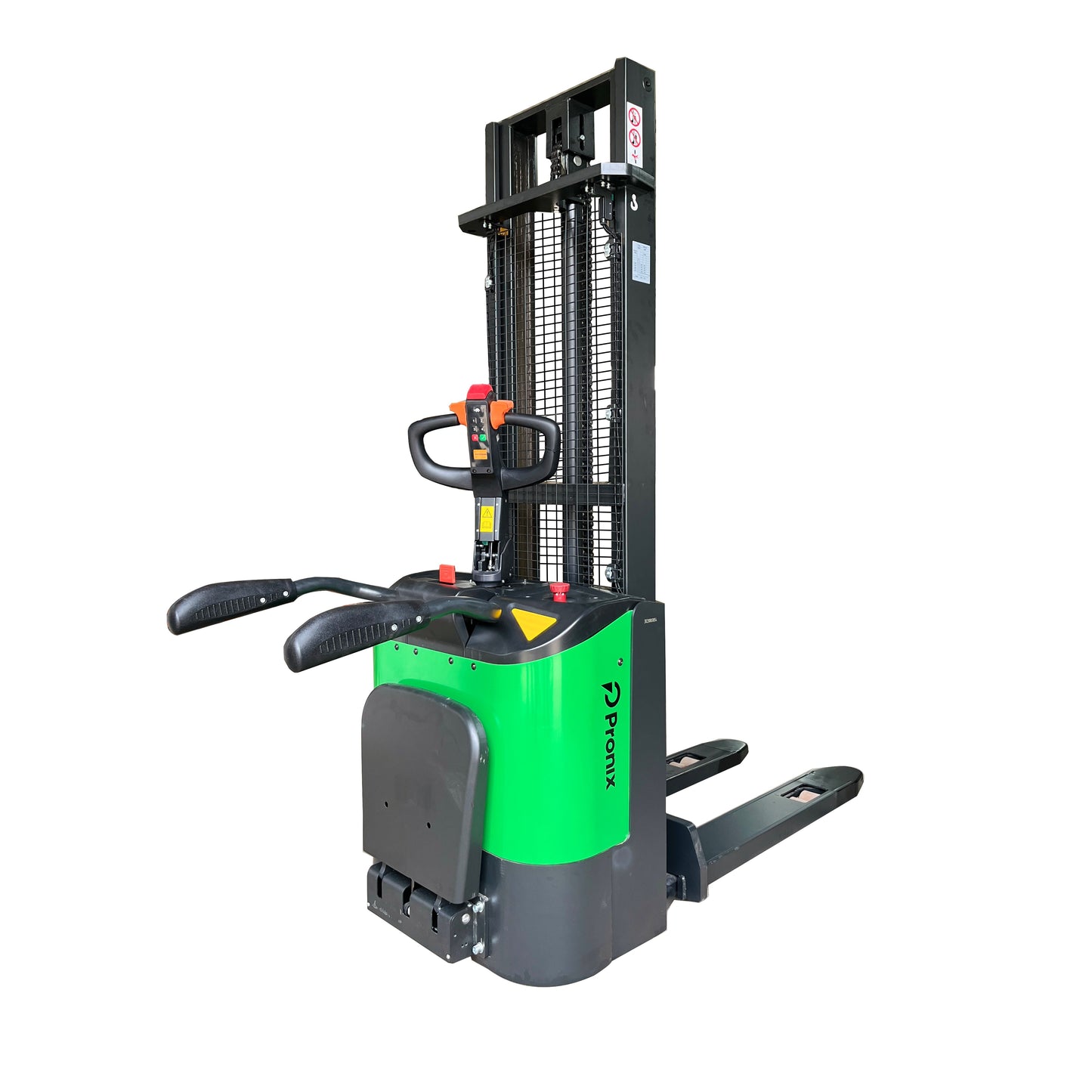

Pronix Fully Electric Stacker 1.5 Ton 1.6m Lifting Height PNXFES-15R

Specifications:

• Brand - Pronix
• Type - Fully Electric Stacker
• Model No. - PNXFES-15R
• Capacity - 1500 Kg
• Power - Battery
• Operate Type - Stand Up
• Load Center Distance - 500mm
• Load Distance, Center of Drive Axle to Fork - 700mm
• Wheel Base - 1232mm
• Axle Loading, Laden Driving / Load - 830 / 1535 Kg
• Axle Loading, Unladen Driving / Load - 663 / 202 Kg
• Wheel Type - Polyurethane (PU)
• Driving Wheel - 230 x 70mm
• Front Wheel - 70 x 80mm
• Driving Wheel Base - 557mm
• Load Wheel Base - 410 / 525 mm
• Lift Height - 1600mm
• Min. Height - 85mm
• Total Width - 820mm
• Handle Height During Operation - Max. 1100mm / Min. 1360mm
• Total Body Length - 717mm
• Ground Clearance - 25mm
• Total Length - 1867mm
• Fork Dimensions - 60 x 180 x 1150mm
• Fork Width - 690 mm
• Turning Radius - 1487mm
• Traction Speed - Load 4.0 km/h / Unload 4.2 km/h
• Lifting Speed - Load 68 mm/s / Unload 162 mm/s
• Max. Grade Ability - Load 5% / Unload 10%
• Brake Type - Electromagnetic
• Drive Control Mode - DC Speed Control
• Traction Motor - 0.75 kW
• Lift Motor - 2.2 kW
• Battery Volts / Amp - 2*12 / 106
• Battery Weight - 2*34 Kg
• Noise - 70dB
• Weight (With Battery) - 865 Kg

Description:

• Pronix Fully Electric Stacker PNXFES-15R offers a robust 1500 kg lifting capacity with a maximum lift height of 1600 mm, ideal for efficient material handling.
• Powered by a reliable battery and designed for stand-up operation, it features polyurethane wheels for smooth maneuverability and a compact turning radius of 1487 mm.
• Its ergonomic handle height and precise load center distances ensure optimal control and safety.
• With a sturdy build and advanced traction, this stacker enhances productivity in warehouses and industrial settings.
