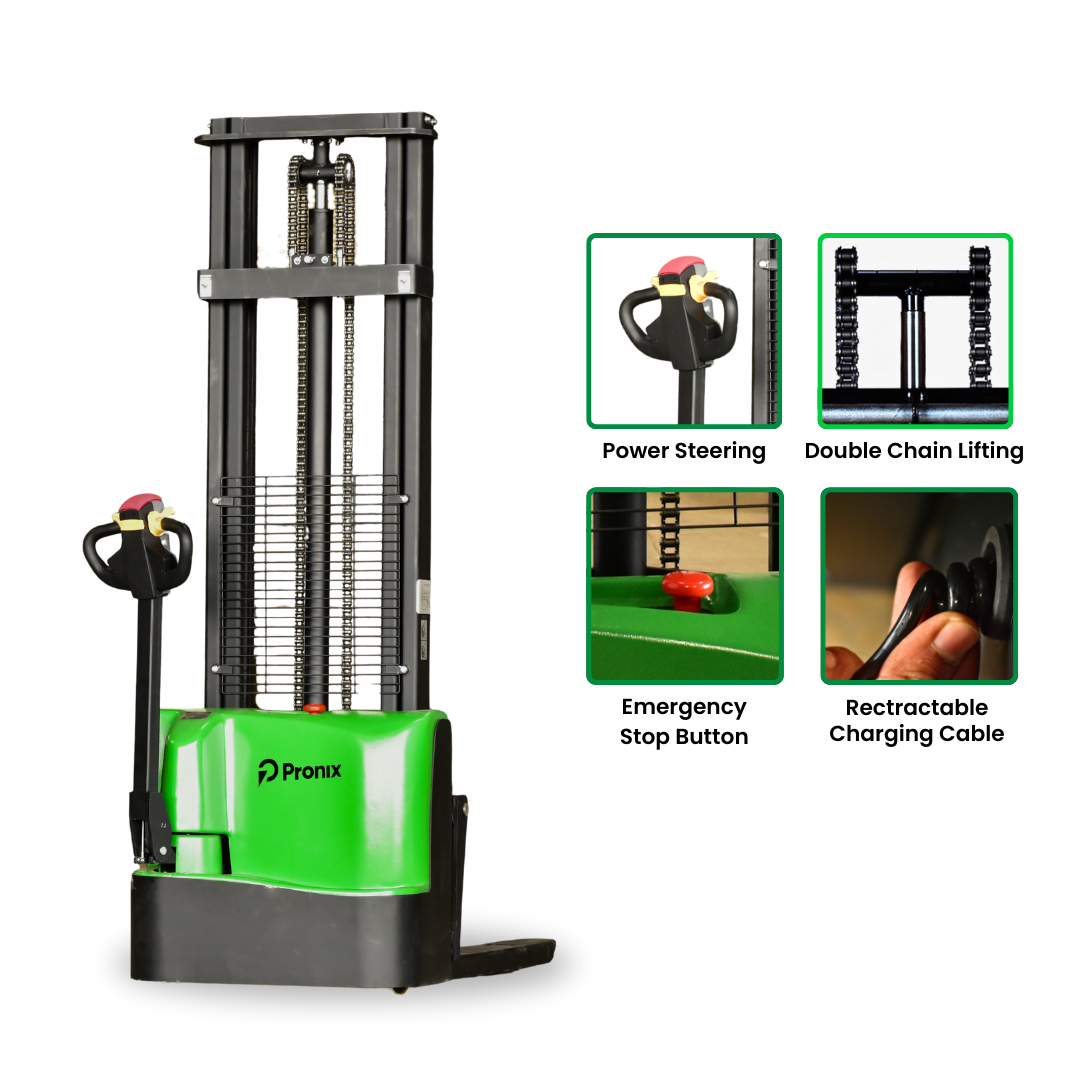

Pronix Fully Electric Stacker 1.5 Ton 1.6m Lifting Height PNXFES-1516

Specification:

• Brand - Pronix
• Type - Fully Electric Stacker
• Model No. - PNXFES-1516

• Power Type - Electric

• Driving Style - Walkie Style

• Load Capacity - 1500 Kg

• Max. Lifting Height - 1600 mm

• Min. Fork Height - 90 mm

• Fork Length - 1150 mm

• Width Over Forks (Fixed) -690 mm

• Width Over Forks (Adjustable) - 360-690mm

• Overall Length - 1800 mm

• Overall Width - 950 mm

• Overall Height (Closed) - 2080 mm

• Overall Height (Extended) - 2080 mm

• Load Center - 500 mm

• Ground Clearance - 31 mm

• Min. Turning Radius - 1420 mm

• Front Wheel Size - Dia. 80 x 70 mm

• Driving Wheel Size - Dia. 210 x 70 mm

• Battery - 2 x 12 / 80Ah

• Travel Speed (Laden / Unladen) - 3.5 / 5

• Lift Speed (Laden / Unladen) - 90 / 120

• Lowering Speed (Laden / Unladen) - 125 / 80

• Grade Ability (Laden / Unladen) - 5 / 8

• Lifting Motor - 1.6 kW

• Driving Motor - 0.75 kW

• Brake Type - Electromagnetic

• Self Weight - 560 Kg

Description:

• Pronix Fully Electric Stacker PNXFES-1516 offers a robust 1.5-ton load capacity with a maximum lifting height of 1600 mm, ideal for efficient material handling.
• Its adjustable fork width (360-690 mm) and compact overall dimensions (1800 mm length, 950 mm width) ensure maneuverability in tight spaces.
• Powered by dual 12V/80Ah batteries, it delivers smooth travel speeds up to 5 km/h unloaded and precise lifting with a 1.6 kW motor.
• Electric stackers minimal turning radius of 1420 mm and electric braking system enhance operational control, making it a reliable choice for professional warehouse environments.
