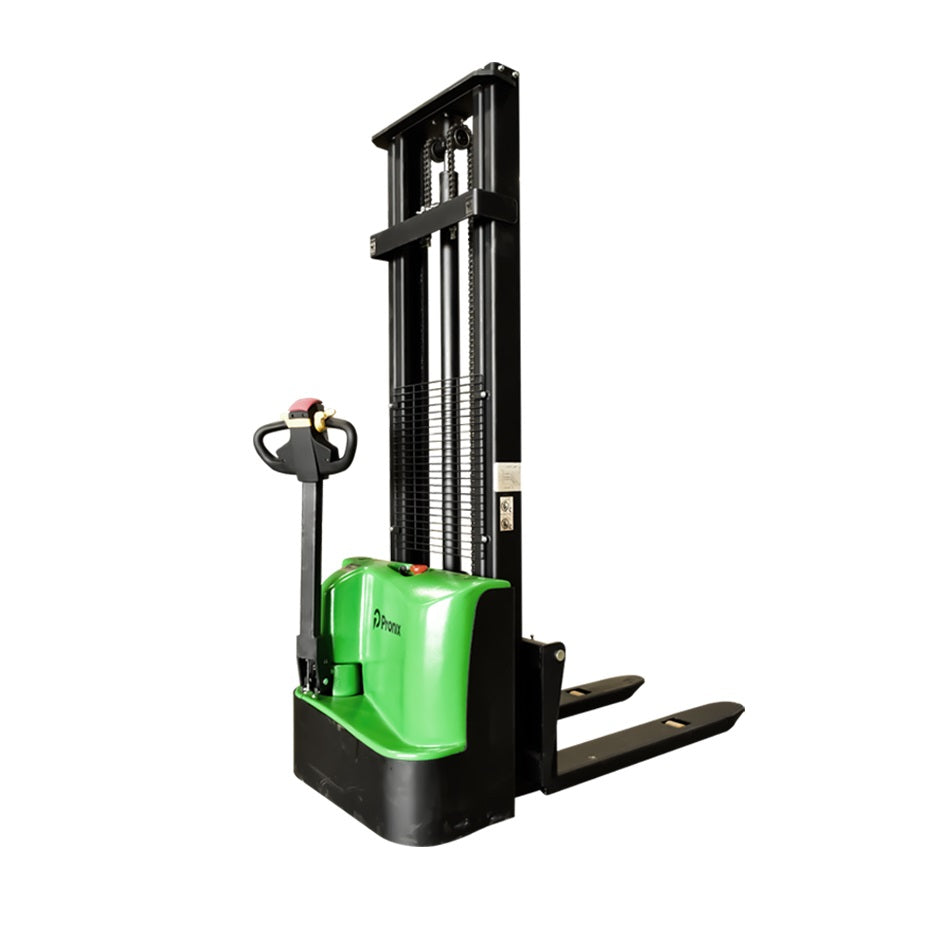

Pronix Fully Electric Stacker 1.5 Ton 1.6m Lifting Height PNXFES-1516

Specification:

1. Brand - Pronix
2. Type - Fully Electric Stacker
3. Model No. - PNXFES-1516
4. Power Type - Electric
5. Driving Style - Walkie Style
6. Load Capacity - 1500 Kg
7. Max. Lifting Height - 1600 mm
8. Min. Fork Height - 90 mm
9. Fork Length - 1150 mm
10. Width Over Forks (Fixed) - 550 mm
11. Width Over Forks (Adjustable) - 360-690mm
12. Overall Length - 1570 mm
13. Overall Width - 950 mm
14. Overall Height (Closed) - 2080 mm
15. Overall Height (Extended) - 2080 mm
16. Load Center - 400 mm
17. Ground Clearance - 31 mm
18. Min. Turning Radius - 1420 mm
19. Front Wheel Size - Dia. 80 x 93 mm
20. Driving Wheel Size - Dia. 210 x 70 mm
21. Battery - 2 x 12 / 2 x 70
22. Travel Speed (Laden / Unladen) - 3.5 / 5
23. Lift Speed (Laden / Unladen) - 90 / 120
24. Lowering Speed (Laden / Unladen) - 125 / 80
25. Grade Ability (Laden / Unladen) - 5 / 8
26. Lifting Motor - 1.6 kW
27. Driving Motor - 0.75 kW
28. Brake Type - Electromagnetic
29. Self Weight - 370 Kg

Description:

• Pronix Fully Electric Stacker 1.5 Ton 1.6m Lifting Height PNXFES-1516 is perfect for lifting and moving goods in Warehouses, Factories, and other industrial environments.
• With a lift height of 1600 mm, this Electric Stacker can reach objects that are high up, and its 1500 kg capacity means that it can move heavy loads with ease.
• This stacker can reach high shelves and corners with ease, making it the perfect choice for industrial applications.
• Pronix Fully Electric Stacker is a durable and reliable electric stacker that is perfect for lifting and moving heavy loads.
• The electric stacker has a capacity of 1500 kg and a lift height of 1600 mm, making it ideal for moving heavy loads.
• With a lift height of 1600 mm, this Electric Stacker can reach objects that are high up, and its 1500 kg capacity means that it can move heavy loads with ease.
• Pronix Fully Electric Stacker is a durable and reliable electric stacker that is perfect for lifting and moving heavy loads.
