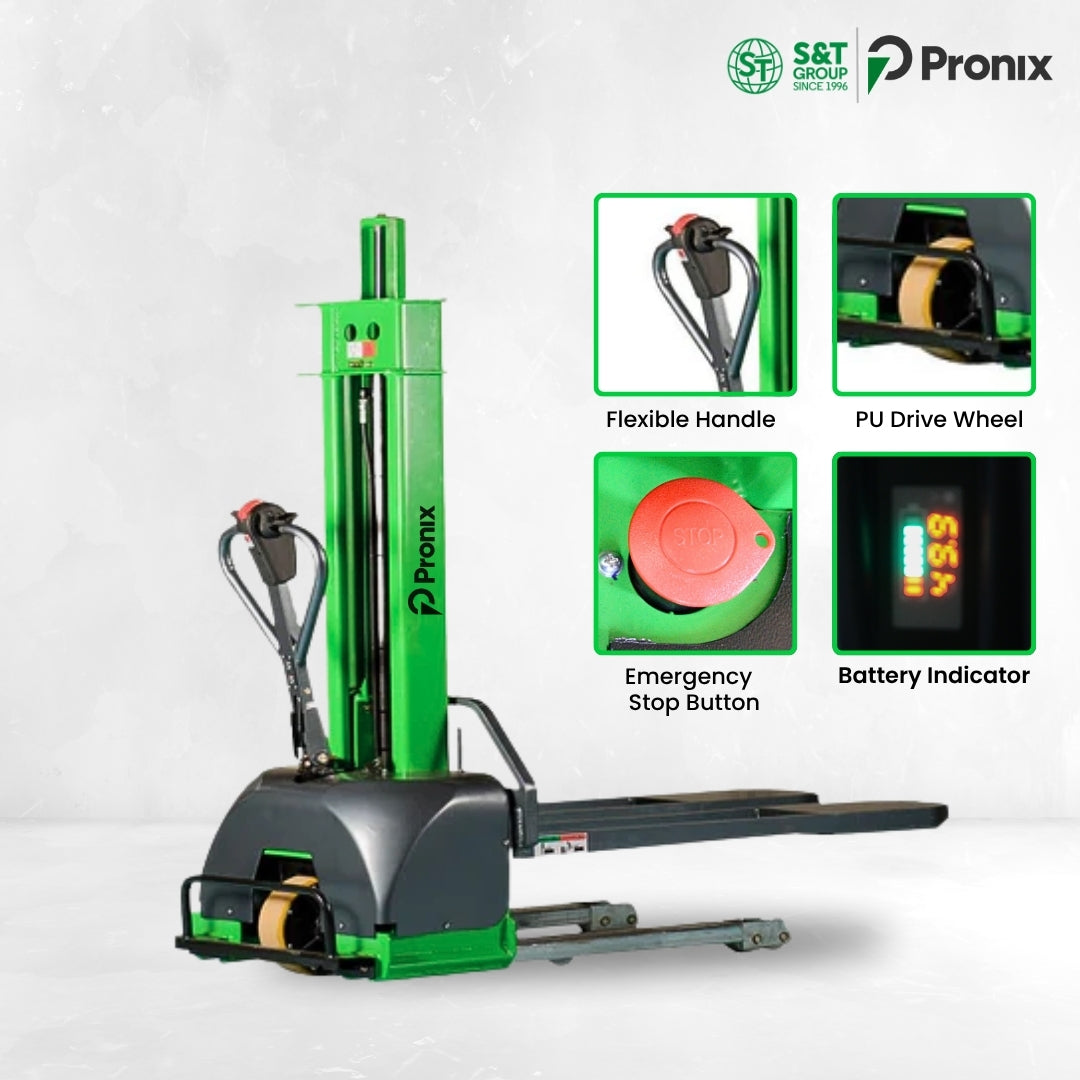

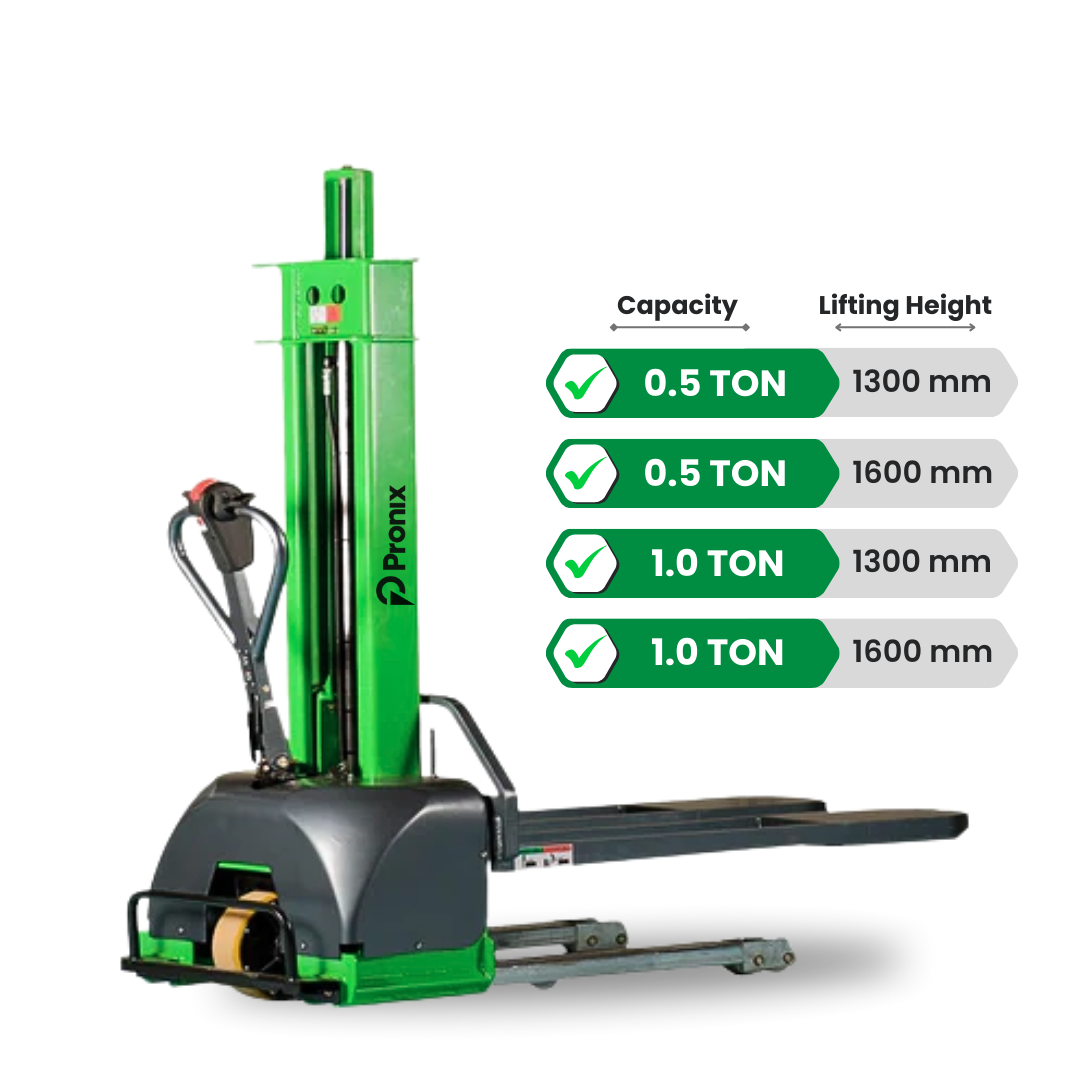

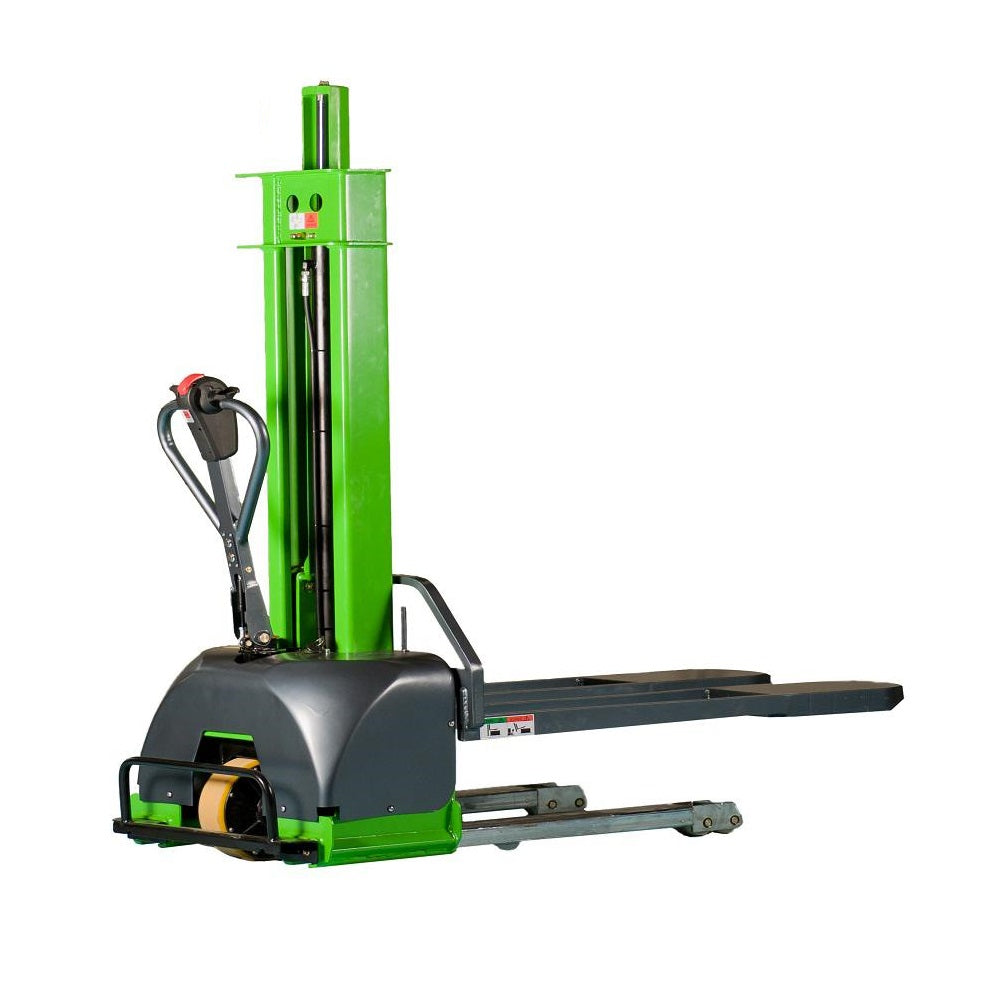

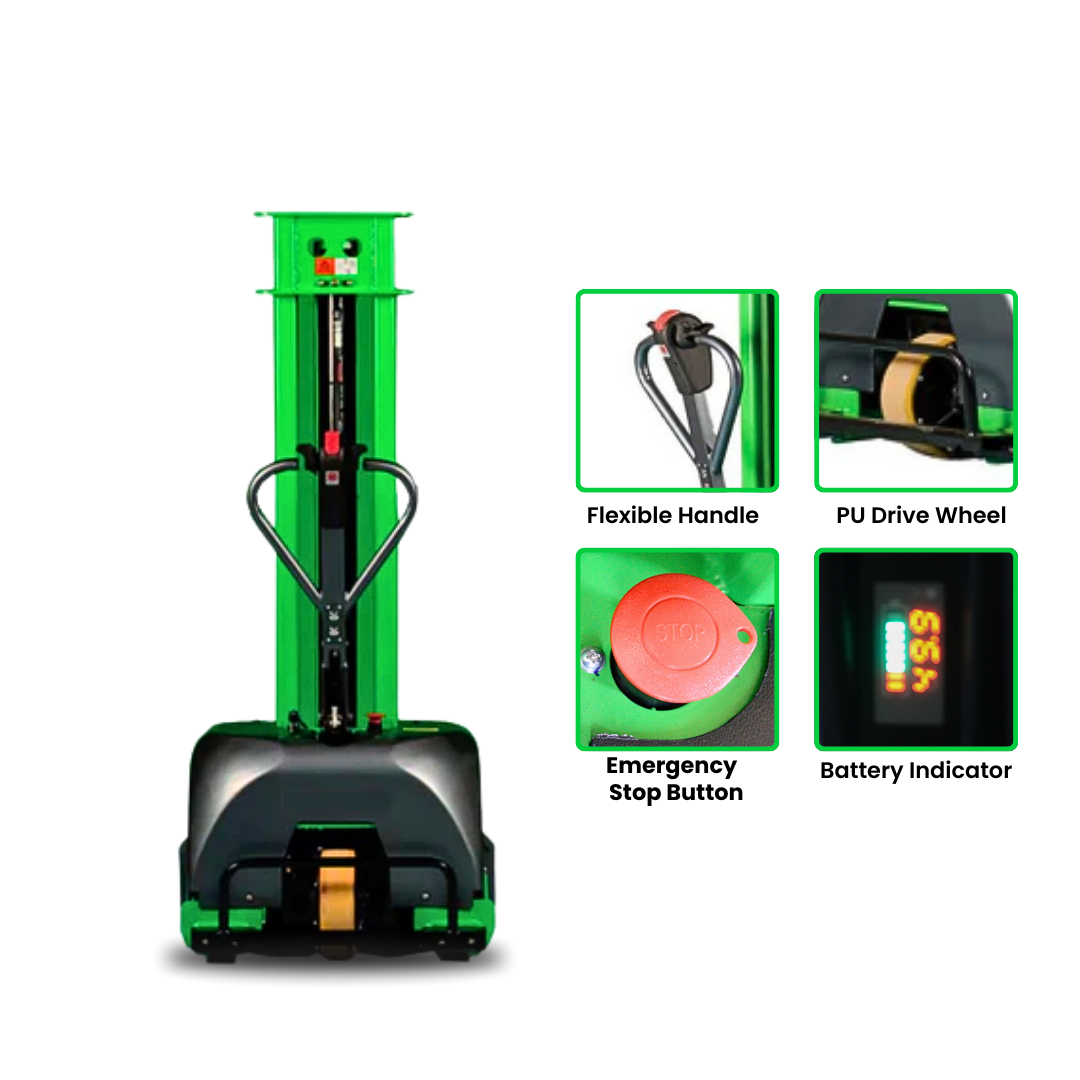

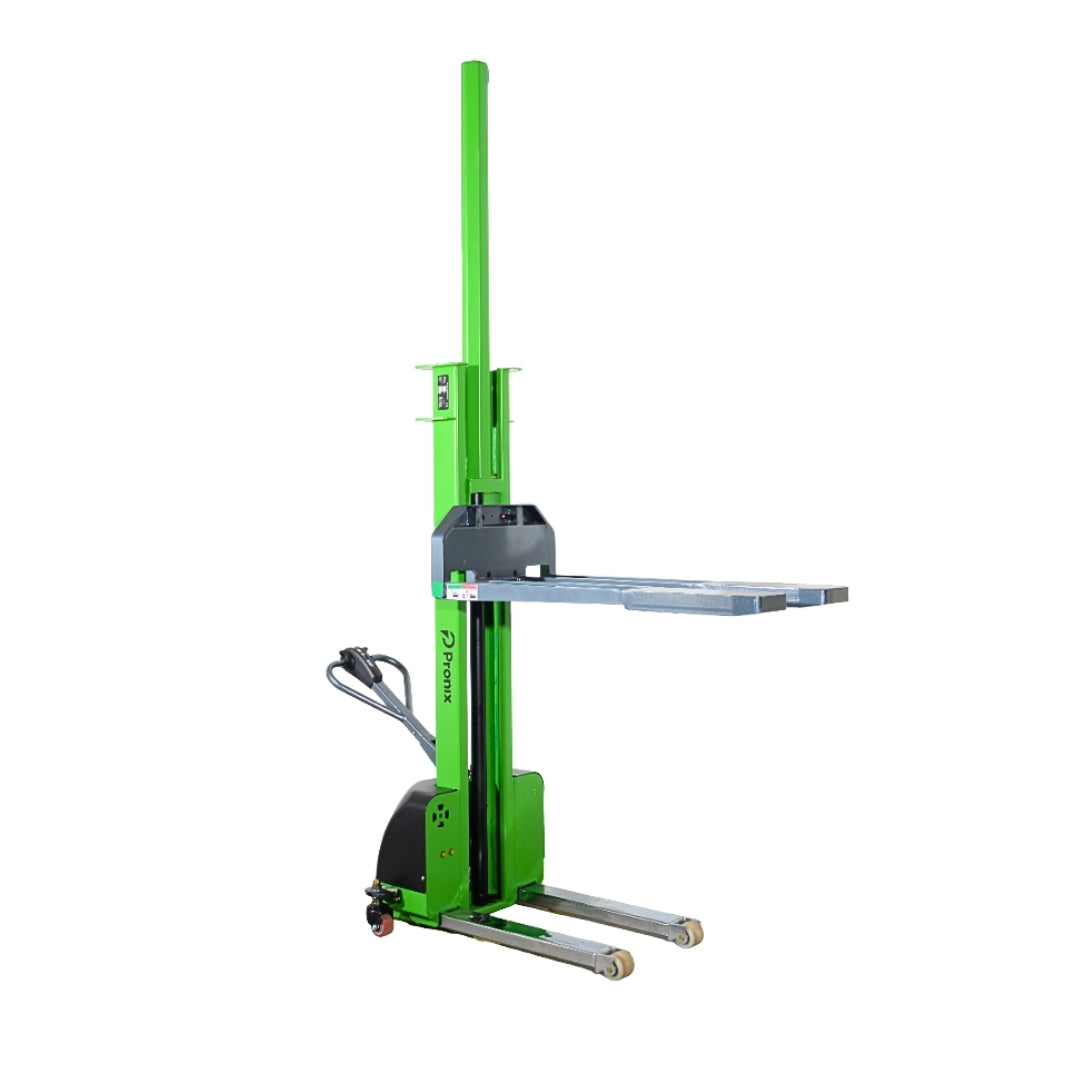

Self Loading All-in-One Stacker Fully Electric Lifting Capacity 1000Kg, 1.3m Lifting Height PNXFESLS-1013 - Pronix

Specification:

• Brand - Pronix
• Type - Fully Electric Self-Loading Stacker
• Model - PNXFESLS-1013
• Capacity - 1000 Kg
• Load Center Distance - 500mm
• Fork Outer Spacing - 685mm
• Fork Length - 1195mm
• Operation Type - Walking Type
• Forward & Backward - Electric
• Lifting Up & Down - Electric
• Drive Wheel Size - Ø 250 x 74 mm
• Load Wheel Size - Ø 80 x 60 mm
• Middle Wheel - Ø 65 x 30 mm
• Fork Lift Height - 1300mm
• Fork Starting Height from the Ground - 81mm
• Wheel Base - 974mm
• Vehicle Length - 1650mm
• Body Thickness - 409mm
• Body Width - 658mm
• Front Track - 518mm
• Single Fork Width - 253mm
• Minimum Turning Radius - 1173mm
• Maximum Driving Speed (Turtle Speed) - 0.5 km/h
• Maximum Driving Speed (Full Load) - 3.0 km/h
• Motor - DC 0.6 kW
• Lift Motor - DC 2.2 kW
• Battery - Lithium Battery (48 V)
• Battery Capacity - 15 Ah
• Battery Weight - 5 Kg
• Overall Weight (Include Battery) - 382 Kg

Description:

• Pronix Fully Electric Self Loading Stacker 1000Kg with Lifting Height 1.3m PNXFESLS-1013 is a highly durable and powerful stacker suitable for various commercial purposes.
• Its maximum load capacity of 1000 Kg and load center distance of 500mm allows for efficient transportation of heavy materials.
• It has an operating type of walking-type, drive wheel size of Ø 250 x 74 mm, load wheel size of Ø 80 x 60 mm, and a maximum driving speed of 3.0 km/h.
• The stacker is powered by a DC 0.6 kW motor and a DC 2.2 kW lift motor and supports a lithium battery of 15 Ah.
• The durable construction and lithium battery provide reliability and a weight of only 5kg.
• This stacker is perfect for warehouses and factories.
