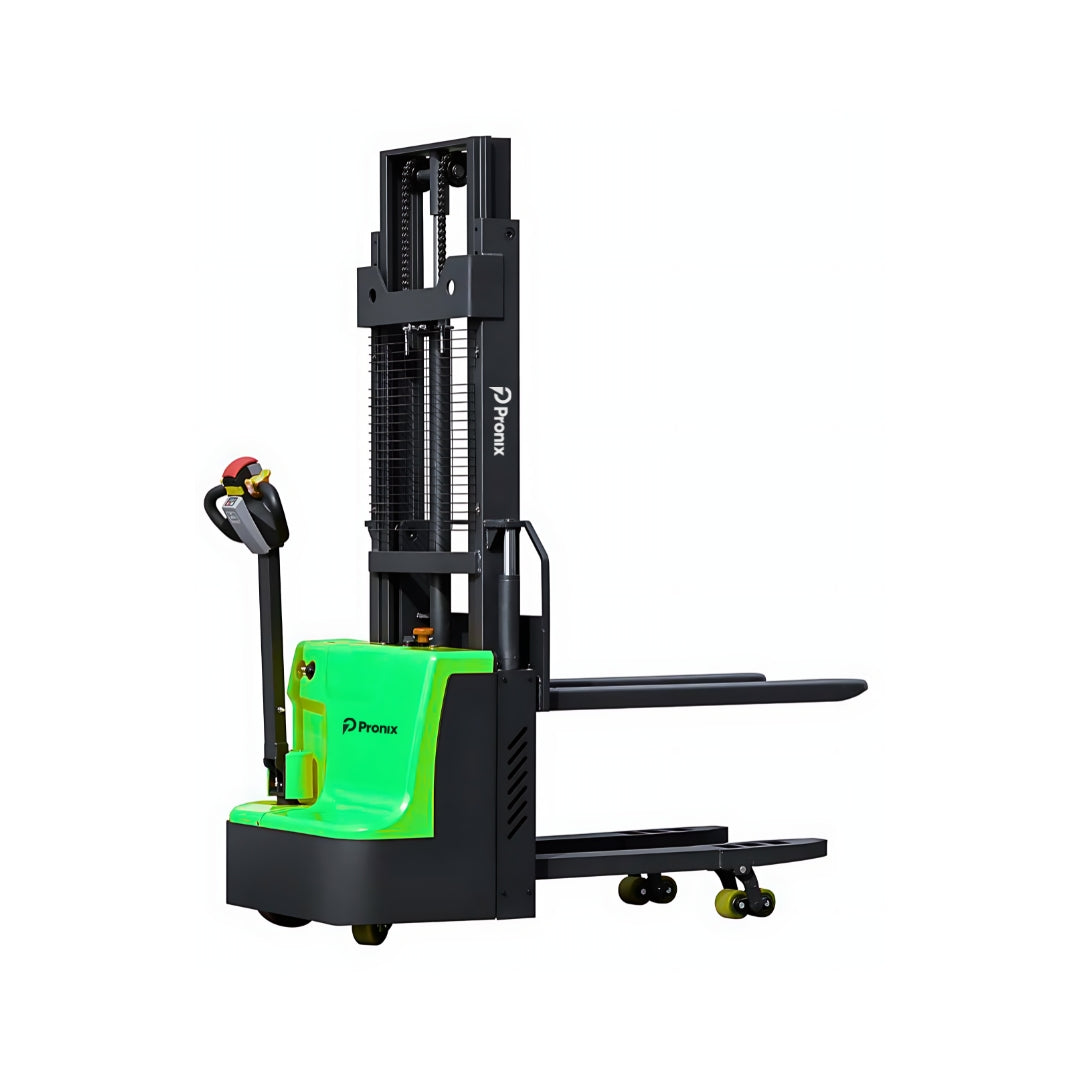

Pronix Fully Electric Initial Lift Stacker 1500Kg Capacity, 1.6m Lifting Height PNXILS-1516

Pronix Fully Electric Initial Lift Stacker 1500Kg Capacity, 1.6m Lifting Height PNXILS-1516

PNXILS-1516

Rs.0.00
Rs.0.00
Sale Sold out
Taxes included.

In stock
  • Brand - Pronix
  • Type - Initial Lift Stacker
  • Model No. - PNXILS-1516
  • Max. Loading Capacity - 1500 Kg
  • Max. Lifting Height - 1600 mm
  • Mast Type - Single Mast
  • Load Center - 600 mm
  • Wheelbase - 1290 mm
  • Overall Height, Mast Lowered - 2030 mm
  • Overall Height, Mast Extended - 2030 mm
  • Min. Height of Fork - 90 mm
  • Overall Length - 1780 mm
  • Overall Width - 825 mm
  • Fork Dimensions - 60 x 175 x 1150 mm
  • Fork Outside Width - 550 / 680 mm
  • Ground Clearance at Wheelbase Center - 40 mm
  • Aisel Width Needed, If 800 x 1200 Pallet - 2256 mm
  • Aisel Width Needed, If 1000 x 1200 Pallet - 2186 mm
  • Turning Radius - 1495 mm
  • Drive Wheel Size - Ø 210 x 70 mm
  • Load Wheel Size - Ø 80 x 70 mm
  • Balance Wheel Size - Ø 115 x 55 mm
  • Driving Speed (Load / Unload) - 4 / 4.55 km/h
  • Lifting Speed (Load / Unload) - 100 / 135 mm/s
  • Lowering Speed (Load / Unload) - 100 / 110 mm/s
  • Max. Climbing Gradient (Load / Unload) - 5 / 7 %
  • Brake - Electromagnetic
  • Drive Motor - 48 V / 1.0 kW
  • Lifting Motor - 48 V / 2.2 kW
  • Battery - 48 V / 65 Ah
  • Charger - 48 V / 5 Ah
  • Weight - 527 Kg
