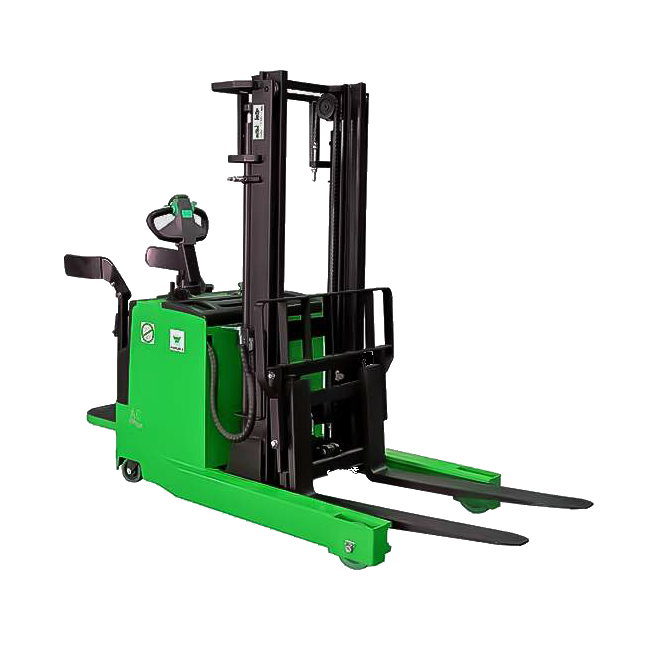

Pronix Electric Reach Stacker 1.5 Ton 3.5m Lifting Height PNXRS-1535

Specification:

• Brand - Pronix
• Type - Reach Stacker
• Model No. - PNXRS-1535
• Capacity - 1500 Kg
• Load Center - 500 mm
• Mast - Double Mast
• Brake Way - Rebirth System Moves + Electric at Butterfly Release
• Tyre Type - Polyurethane
• Front Tyre Dimensions - 180 x 55 mm
• Rear Tyre Dimensions - 130 x 55 mm
• Traction Wheel - 230 x 75 mm
• Wheel-Base - 460 mm
• Wheel-Base (Load wheel/Balance) - 1480
• Ground Clearance - 45 mm
• Reach Distance - 590 mm
• Travel Position Tiller Height - 1300 mm
• Lift Height - 3500 mm
• Closed Height - 2220 mm
• Fork clearance from the ground - 35 mm
• Fork Dimensions - 920 x 100 x 35 mm
• Total Length - 2230 mm
• Total Width - 1050 mm
• Fork Adjustable - 200-620mm
• Fork Tilt Forward / Back - 2/4
• Min. Turning Radius - R1785
• Min. Turning Radius (Open pedal) - R2160
• Aisle width for pallets (1200x1000) - 2730 mm
• Lifting speed(Lade/unlade) - 150/100 mm/s
• Lowering speed (Lade/unlade) - 500 mm/s
• Traction speed (Lade/unlade) - 6/5 Km/h
• Max. grade ability (Lade/unlade) - 10/5 %
• Truck weight (Without Battery) - 2000 Kg
• Battery Weight - 240 Kg
• Electrical Control System - AC-Speed Control
• Traction Motor - 1.5 kW
• Lift Motor - 3 kW
• Battery - 2V x 12/270 Ah
• Battery Charger (Input) - 220V / 50(60)Hz
• Battery Charger (Input) - 24V / 40A
• Overall Weight - 2240 Kg

Description:

• Pronix Electric Reach Stacker 1.5 Ton Lifting Height 3500mm PNXRS-1535 is a hardworking tool, perfect for any warehouse.
• With 1500 Kg capacity, a 500mm Load Center, and a double mast, you have the power to lift to heights up to 3500mm.
• The rebirth system moves, and electric butterfly release ensure easy maneuverability, both with a ground clearance of 45mm, as well as a wheelbase of 460mm and a min. turning radius of R 1785.
• The AC-Speed control and a 3kW lift motor provides the power to lift with ease.
• It offers high performance and reliability with its AC-speed control system, high-output 1.5 kW traction motor, and 3 kW lift motor.
• This stacker also features a240kg battery and 40A 24V battery charger, all while weighing 2000kg.
