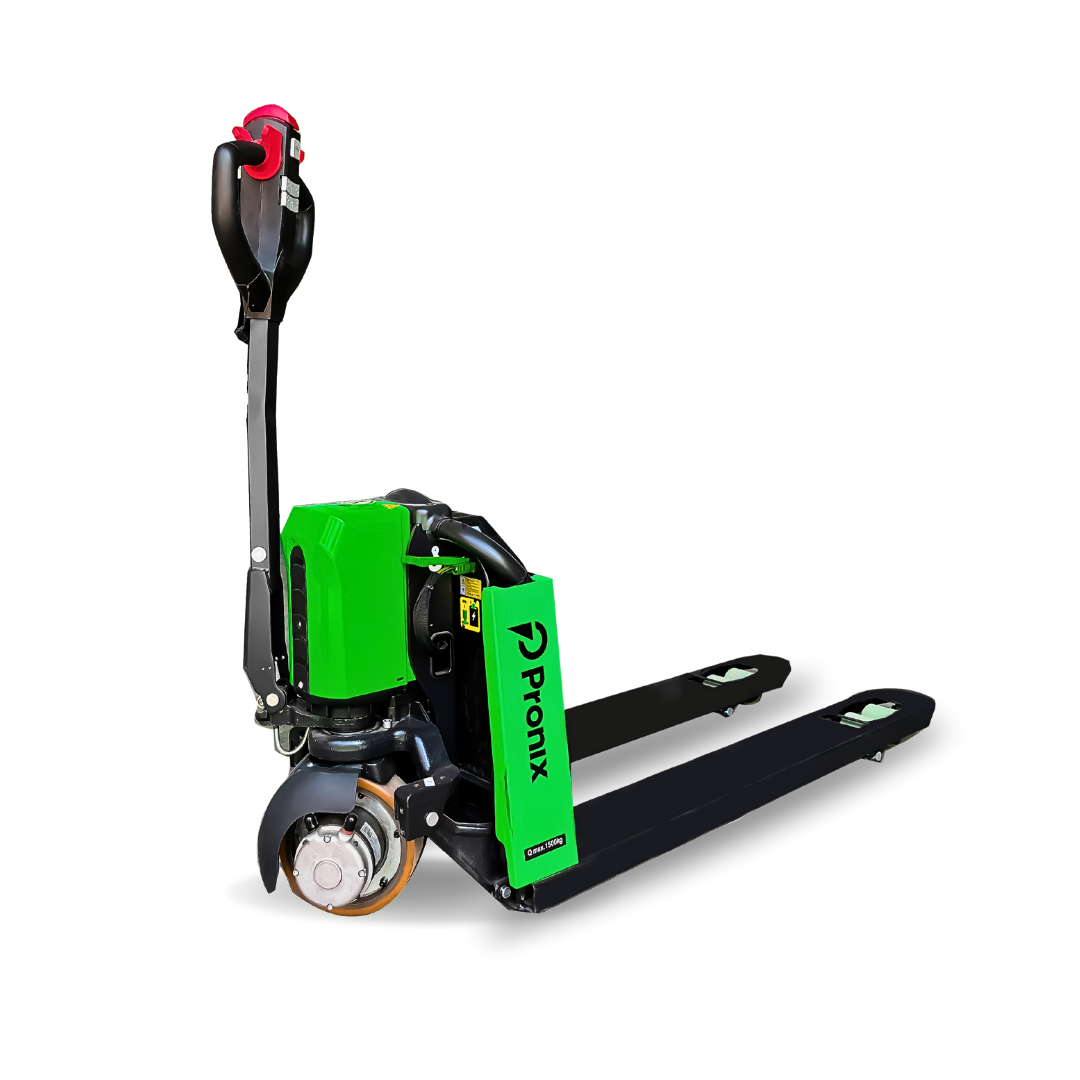

Pronix Electric Pallet Truck 1.5 Ton PNXEPT-15

Specification:

• Brand - Pronix
• Model No. - PNXEPT-15
• Type - Electric Pallet Truck
• Power Type - Lithium Battery
• Operate Type - Walkie Type
• Rated Capacity - 1500 Kg
• Load Center Distance - 600 mm
• Load Distance, Center Of Drive Axle to Fork - 947 mm
• Wheel Base - 1185 mm
• Axle Loading, Laden Driving/Load - 626/1000
• Axle Loading, Unladen Driving/Load - 99/27
• Wheel Type - Polyurethane(PU)
• Driving Wheel - Ø210x70 mm
• Load Wheel - Ø80x93(80x70) mm
• Additional Wheels(Dimensions) - Ø80x30 mm
• Driving Wheel Wheelbase - 430 mm
• Load Wheel Wheelbase - 525 mm
• Lift Height - 115 mm
• Min. Height - 80 mm
• Total Width - 540/685 mm
• Handle Height During Operation, Max./Min. - 700/1160 mm
• Total Body Length - 380 mm
• Ground Clearance - 33 mm
• Total Length - 1530 mm
• Fork Dimensions - 47/160/1150 mm
• Fork Width - 540/685 mm
• Turning Radius - 1330 mm
• Traction Speed(Load/Unload) - 4.6/4.8 Km/h
• Lifiting Speed(Load/Unload)  - 20/25 mm/s
• Lowering Speed(Load/Unload) - 50/40 mm/s
• Max. Grade Ability(Load/Unload) - 6/16 %
• Brake Type - Electromagnetic
• Drive Control Mode - DC Speed Control
• Traction Motor - 0.65 Kw
• Lift Motor - 0.5 Kw
• Battery Volts/Ampere - 24/20(24/30, 24/36) V/Ah
• Battery Weight - 4.6 Kg
• Noise - 70 Db
• Weight(With Battery) - 126 kg

Description:

• Pronix Electric Pallet Truck 1.5 Ton PNXEPT-15, you get professional operation capabilities and high-powered performance.
• Featuring a lithium battery and a walkie operate type, it offers a rated capacity of 1500 Kg and a load center distance of 600 mm.
• Its self-weight is 126 kg, with an axle loading of 626/1000 when laden driving/load, and 99/27 when unladen driving/load.
• It also comes with polyurethane wheels, an Ø210x70 mm driving wheel, and an Ø80x93(80x70) mm load wheel.
• With its 115 mm lift height and 33 mm ground clearance, the PNXEPT-15 is ideal for heavy-duty jobs.
