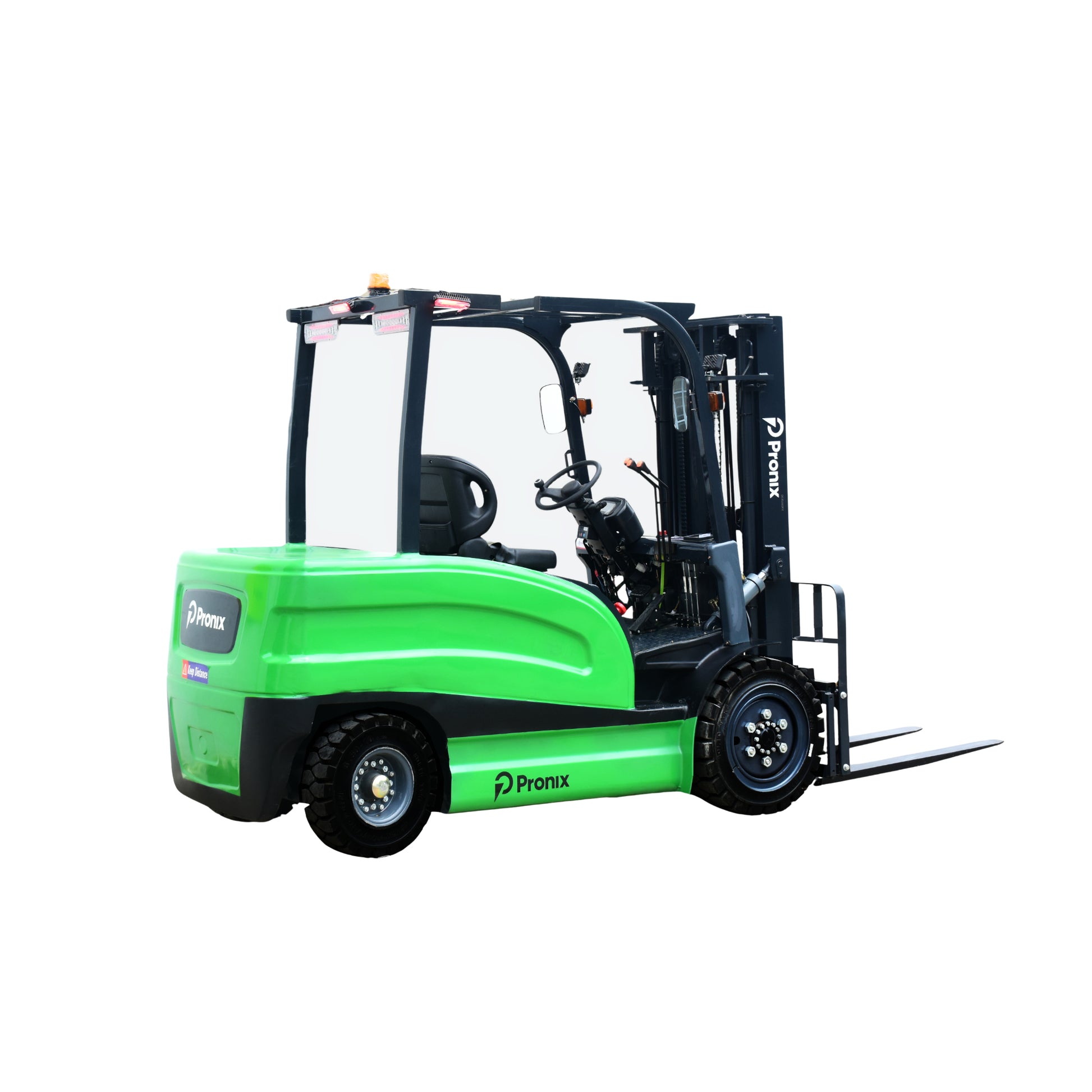

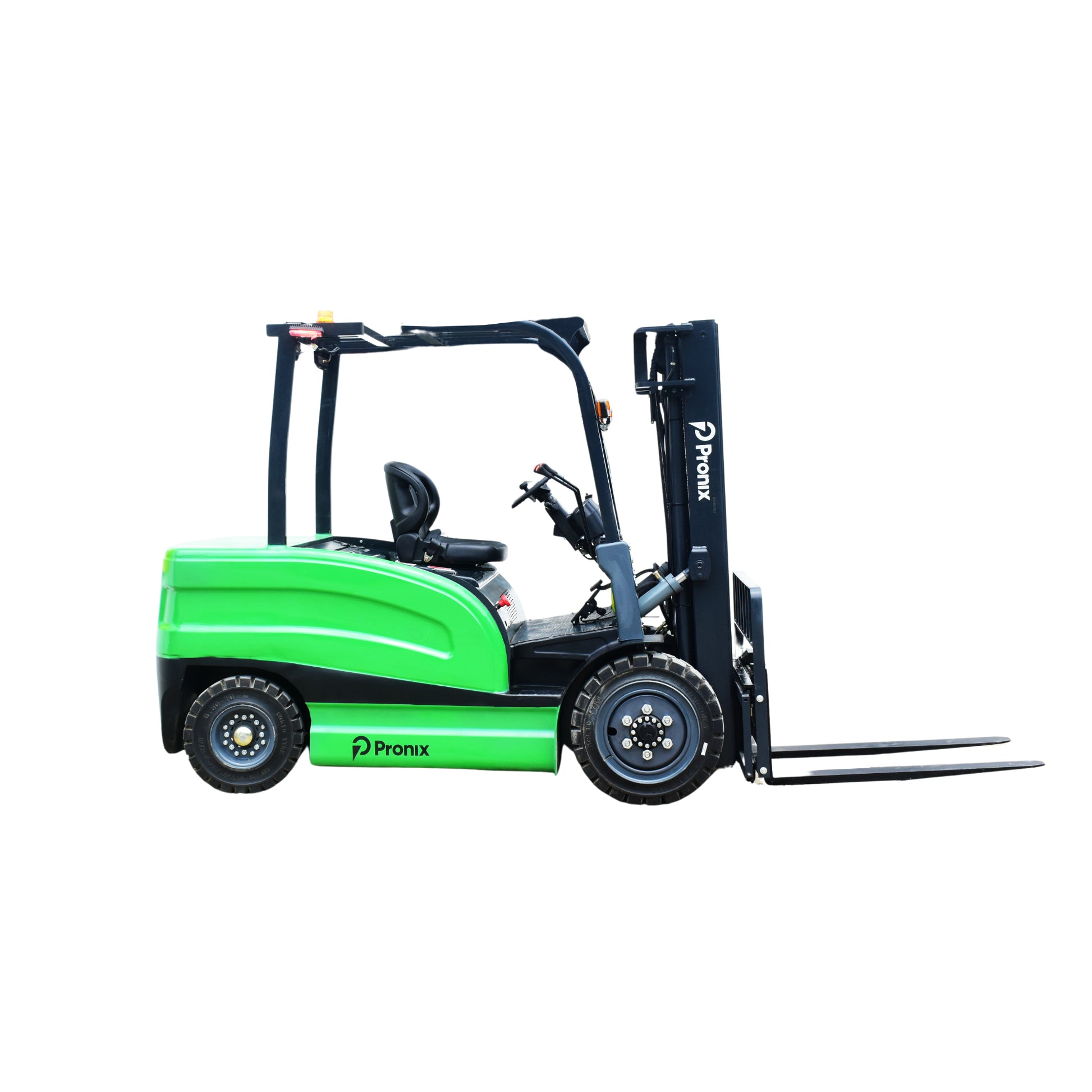

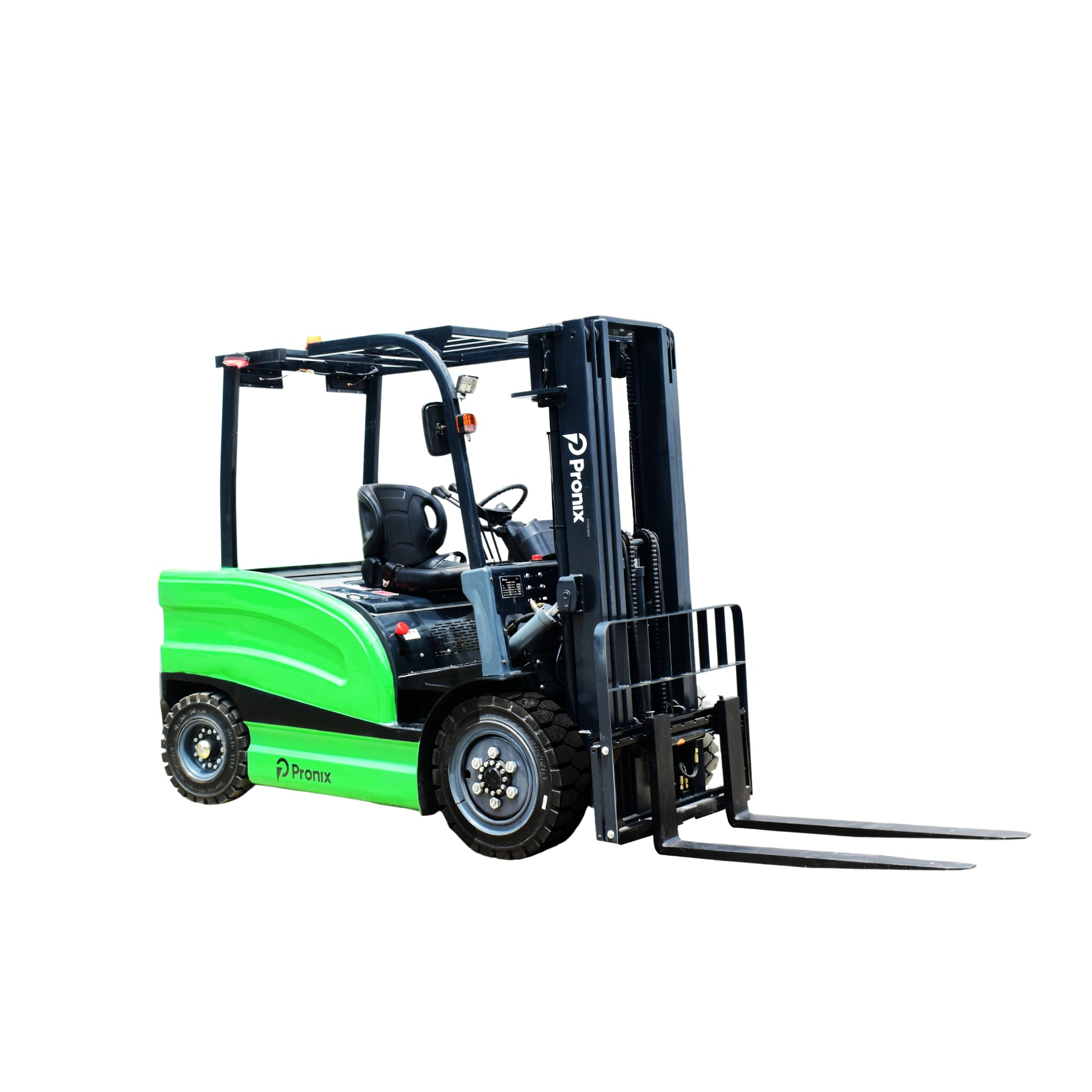

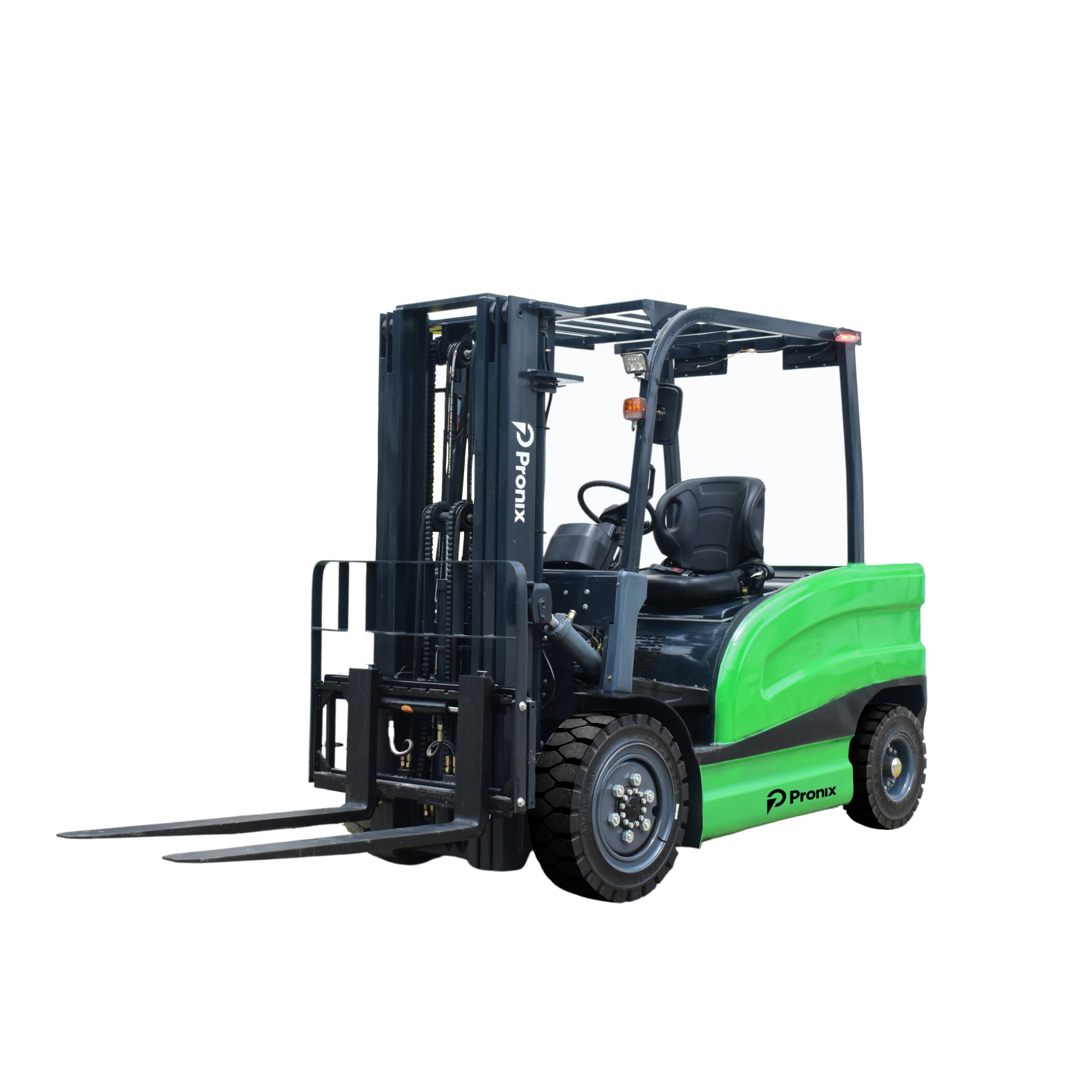

Pronix Electric Forklift 3 Ton Capacity 3m Lifting Height PNXFES3030LA

Specifications:

• Brand - Pronix
• Type - Electric Forklift
• Model No. - PNXEFL-3030LA

• Load Capacity - 3000 Kg

• Fork Length - 1220 mm

• Overall Length - 3980 mm

• Wheel Width - 1200 mm

• Frame Width - 1300 mm

• Lifting Height - 3000 mm

• Mast - Double Mast

• Height of Protective Frame - 2150 mm

• Maximum Height During Work - 4105 mm

• Wheelbase - 1510 mm

• Front Suspension Distance - 480 mm

• Front Wheelbase - 960 mm

• Rear Wheelbase - 960 mm

• Minimum Distance Lower End of Gantry - 80 mm

• Minimum Distance Mid Frame (Empty/Full) - 130 mm

• Maximum Lifting Speed (Without Load) - 280 mm/s

• Maximum Lifting Speed (Full Load) - 180 mm/s

• Minimum Turning Radius - 2300 mm

• Maximum Operating Speed (Without Load) - 10.5 Km/h

• Maximum Operating Speed (Full Load) - 10 Km/h

• Maximum Climbing Gradient Under Full Load - 15%

• Load Center - 500 mm

• Front Tyre - 28 x 9 - 15

• Rear Tyre - 650 - 10

• Lifting Motor Power - 11.5 kW

• Drive Motor Power - 11.5 kW

• Turn to Row Style - Hydraulic Power Assist

• Input Voltage of Charger - 72V / 50 Ah

• Charging Time - 8 - 10 h

• Battery - Lead Acid Battery

• Battery Capacity - 325 Ah

• Rated Voltage - 72 V

• Self Weight - 3700 Kg (Without Battery)


Description:

• Pronix Lead Acid Electric Forklift is a powerful and reliable material handling solution designed for modern industrial operations. Built with robust construction and advanced technology, it ensures smooth performance, high efficiency, and long service life across warehouses, factories, and logistics environments.
• Powered by a high-capacity lead-acid battery, this forklift delivers consistent lifting power and stable driving while producing zero exhaust emissions—making it ideal for indoor use. Its ergonomic design, user-friendly controls, and enhanced safety features provide maximum operator comfort and secure operation throughout long working hours.
• With a lifting capacity of 3.0 tons and a lifting height of up to 3000 mm, the Pronix forklift is well-suited for handling heavy loads with precision. Features like a smart card lock system, large digital display, warning light for visibility, and solid durable tyres ensure safety, convenience, and long-term performance.
• Engineered for low maintenance and cost-effective operation, Pronix Lead Acid Series forklift is the perfect choice for businesses looking to boost productivity while minimizing operational costs.
