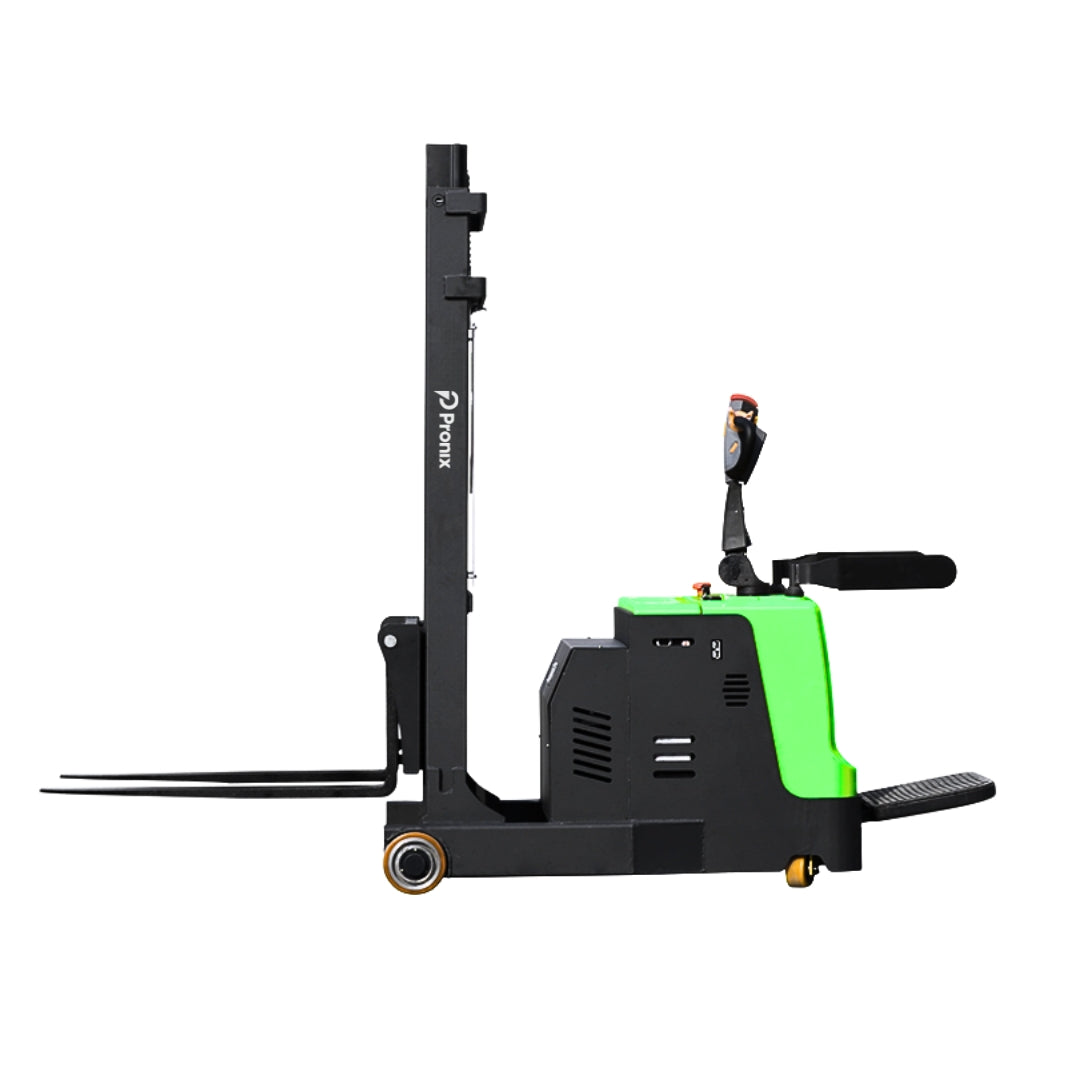

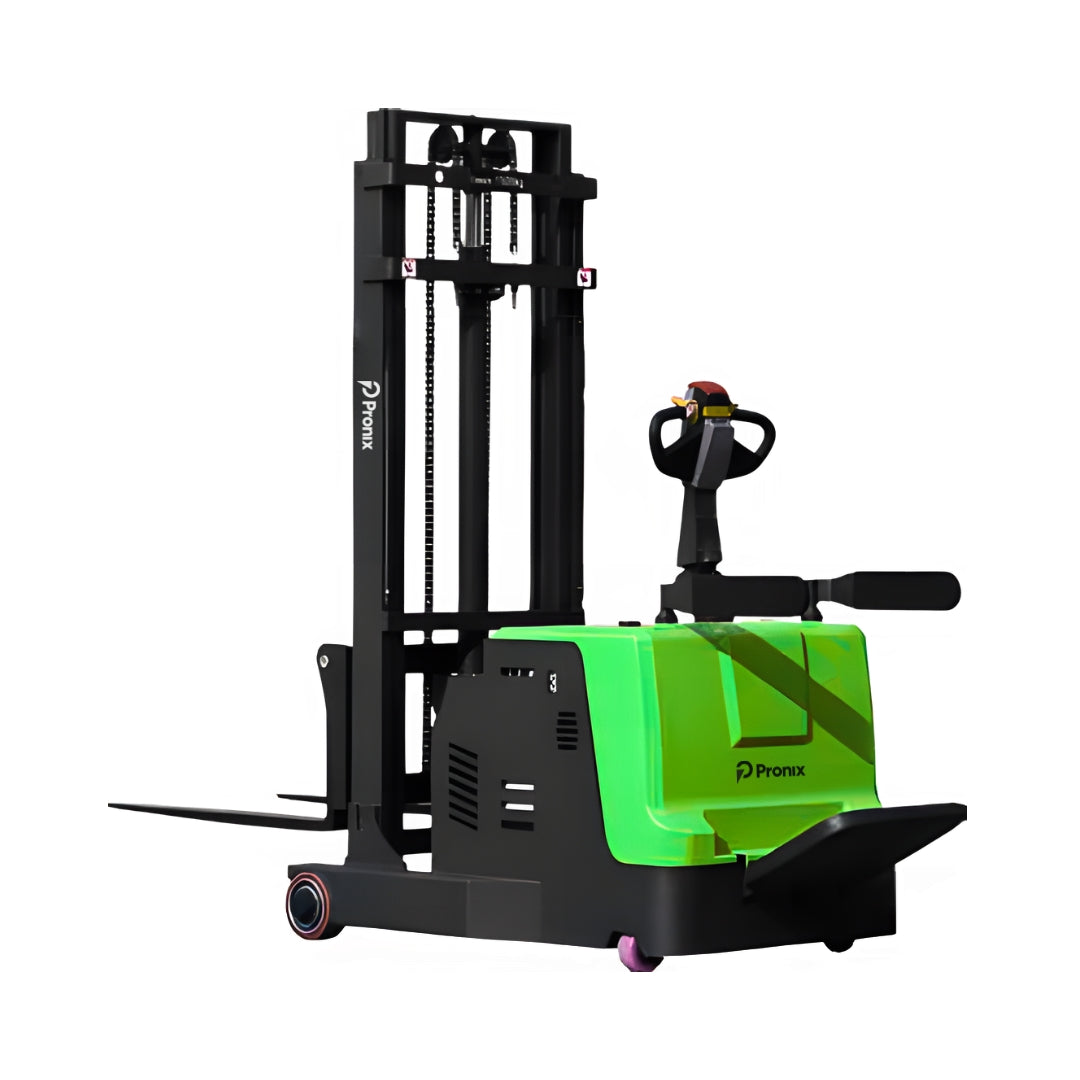

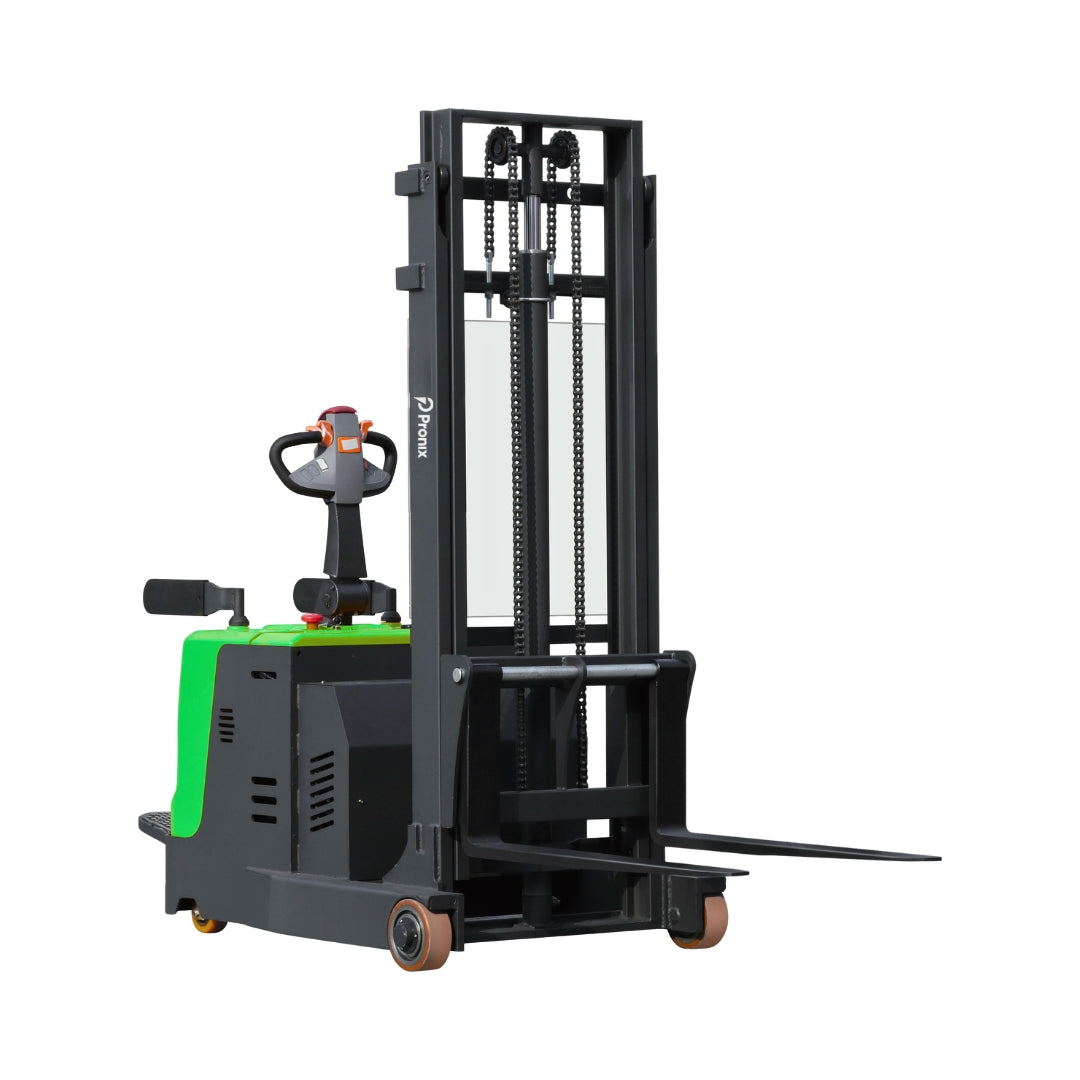

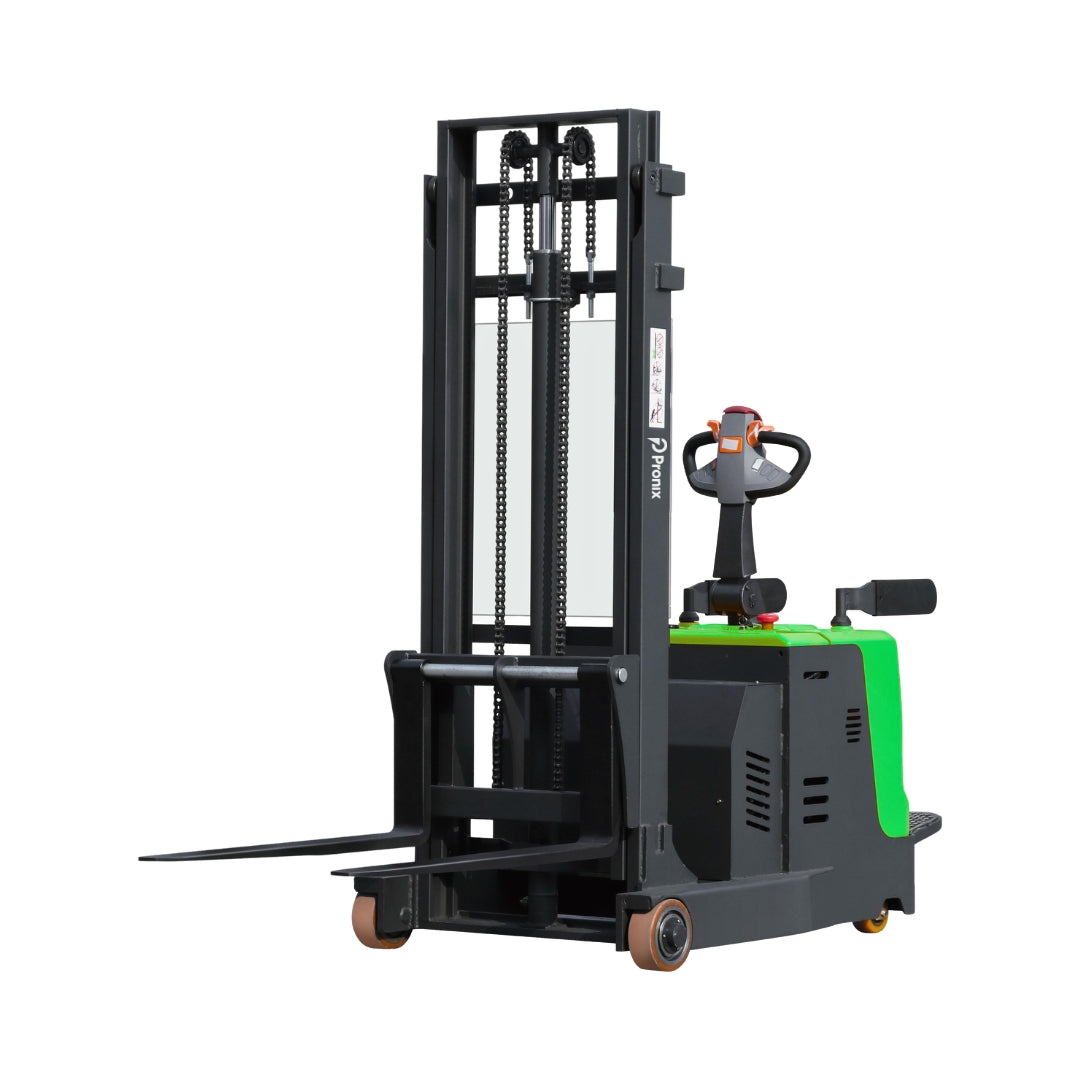

Pronix Electric Counter Balanced Stacker-Rider 1000Kg Capacity, 1.6m Lifting Height PNXCBS-1016

Specifications:

• Brand - Pronix
• Type - Electric Counter Balanced Stacker-Rider
• Model No. - PNXCBS-1016

• Load Capacity - 1000 Kg

• Lifting Height - 1600 mm

• Mast Type - Single

• Operation Type - Stand On

• Load Center - 500 mm

• Wheelbase - 1100 mm

• Overall Height, Mast Lowered - 2030 mm

• Overall Height, Mast Extended - 2030 mm

• Min. Height of Fork - < 65 mm

• Overall Length - 2580 mm

• Body Length - 1485 mm

• Overall Width - 940 mm

• Fork Size - 35/100/1070 mm

• Fork Outer Width - 220 - 680 mm

• Ground Clearance at Center of Wheelbase - 40 mm

• Aisle Width 1000 x 1200 Pallets - 2934 mm

• Aisle Width 800 x 1200 Pallets - 2902 mm

• Turning Radius - 1450 mm

• Tyre Type - Polyurethane

• Tyre Size, Drive - Ø 230 x 75 mm

• Tyre Size, Load - Ø 180 x 75 mm

• Tyre Size, Balance - Ø 115 x 50 mm

• Driving Speed (Load/Unload) - 4.5 / 5 km/h

• Lifting Speed (Load/Unload) - 100 / 135 mm/s

• Lowering Speed (Load/Unload) - 100 / 110 mm/s

• Max. Climbing Ability (Load/Unload) - 5 / 7%

• Steering Type - Electric Power Steering

• Brake Type - Electromagnetic Brake

• Driving Motor - 24 V / 1.5 kW

• Lifting Motor - 24 V / 2.2 kW

• Battery Qty - 1 Pc

• Battery - 24 V / 210 Ah

• Charger - 24 V / 30 Ah

• Weight - 1110 Kg
